Avid Sync I/O for Pro Tools #1

Digidesign SYNC I/O is a multipurpose synchronization peripheral for
Pro Tools|HD™ systems. The SYNC I/O supports all Pro Tools|HD sample rates, and synchronizes to all major time code and clock reference standards used in audio, video, film, and multimedia production.

SYNC I/O is designed especially for Pro Tools|HD systems, but it can also be utilized as a stand-alone synchronization device. When
used with Pro Tools, most SYNC I/O features can be controlled from within the Pro Tools application. In addition, a utility application
(SYNC I/O Setup™) is provided which gives software access to all SYNC I/O parameters remotely, with or without Pro Tools. Even without a computer, SYNC I/O can be configured manually using its front panel switches and displays.

SYNC I/O Features:

SYNC I/O supports all Pro Tools|HD sample rates, including 88.2, 96, 176.4, and 192 kHz.
SYNC I/O provides the following synchronization features.

Supported Positional Reference Sources
• LTC
• VITC
• Bi-phase/Tach
• Internal Time Code Generator
• Serial Time Code

Supported Clock Reference Sources
• Loop Sync
• Reference Video
• Composite Video Input
• Word Clock
• AES/EBU Null
• Pilot Tone
• Internal Crystal
• Bi-phase/Tach
• LTC

Output and Generation
• Digidesign Super Clock (256x sample clock)
• Word Clock (1x sample clock)
• AES/EBU null clock (AES “digital black”)
• VITC (if a video input is present)
• LTC
• MIDI Time Code (MTC)
• Two 9-pin Sony P-2 machine protocol ports, for MachineControl™-enabled systems.

Other Features

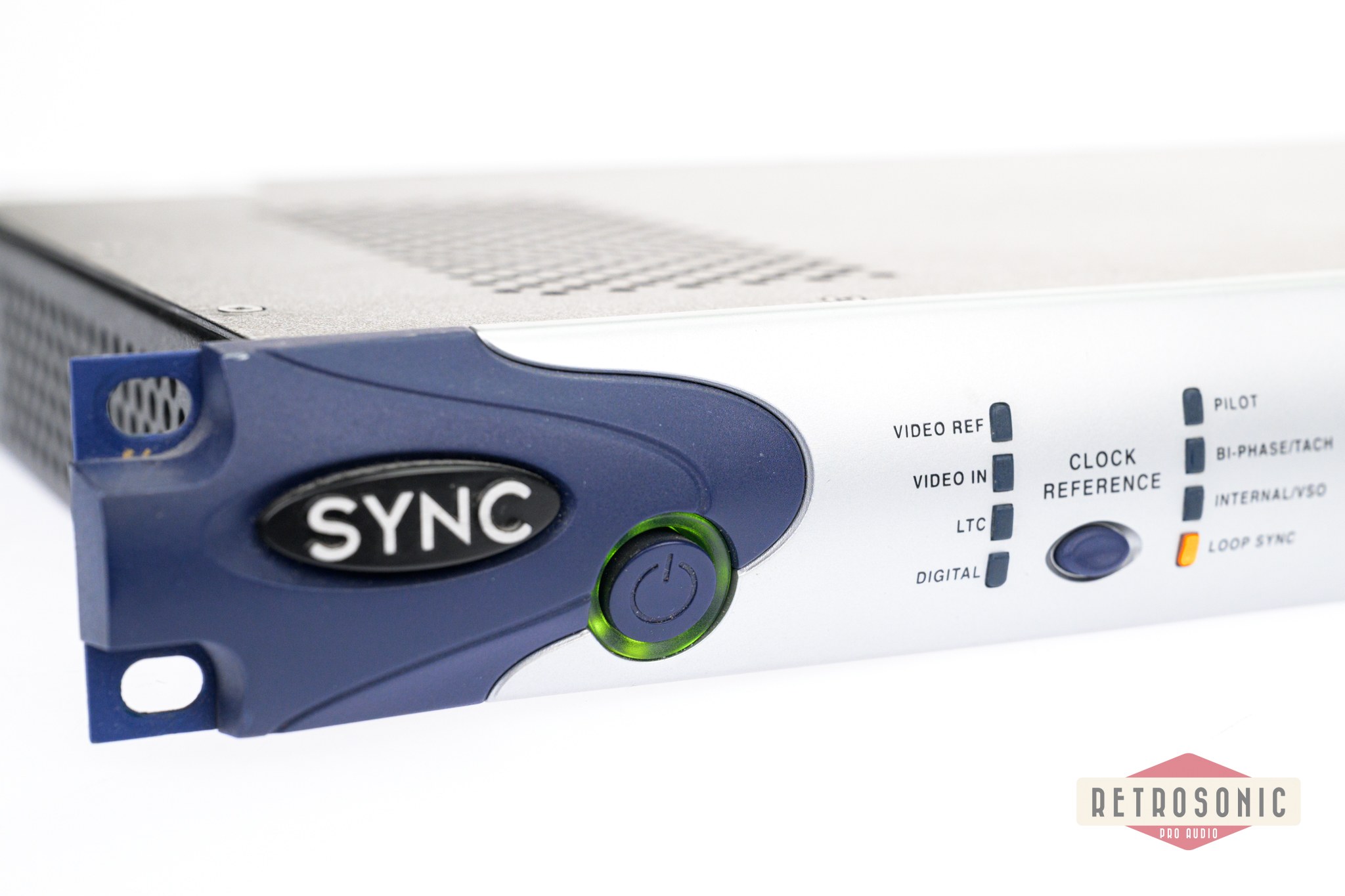

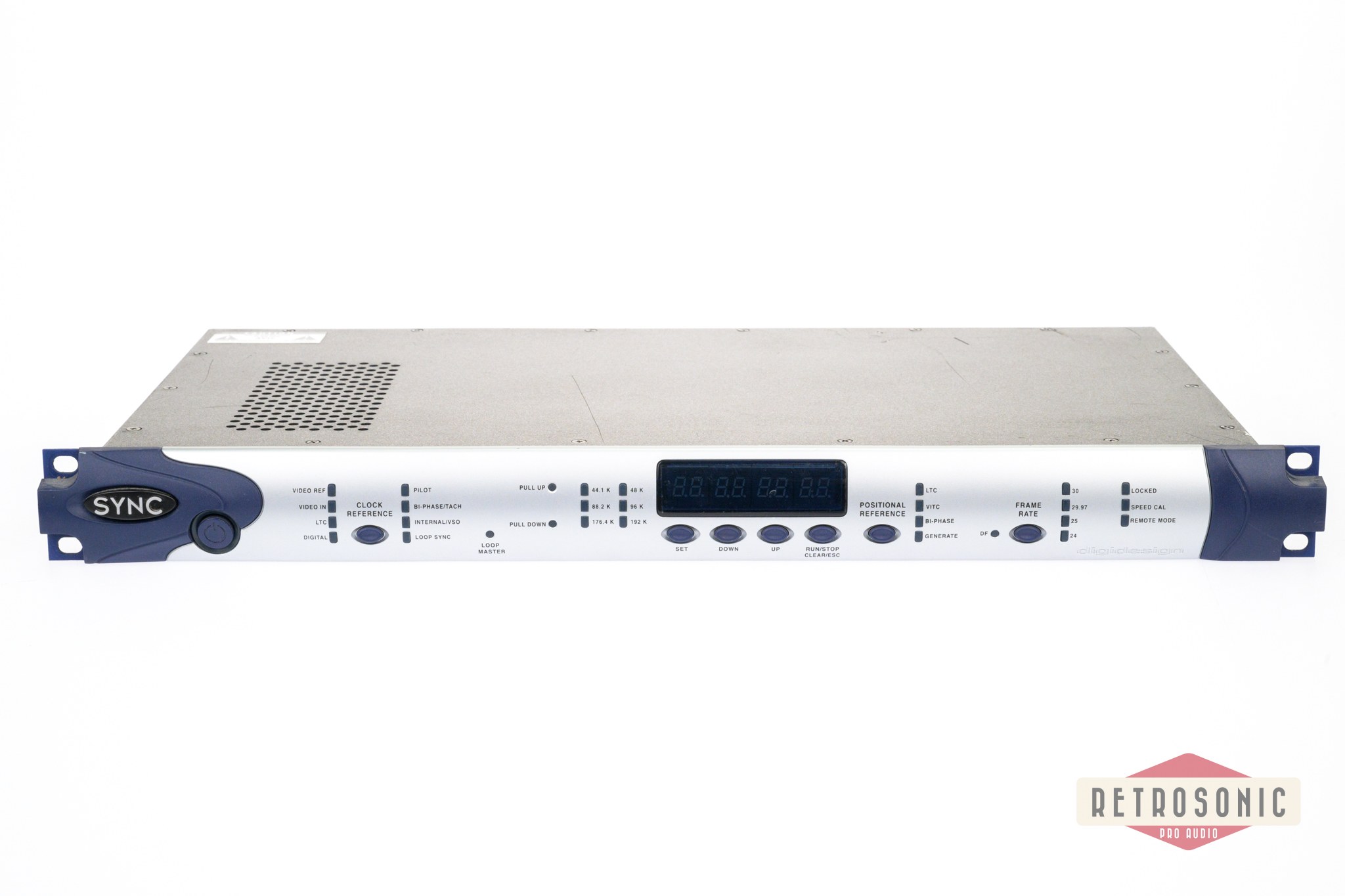

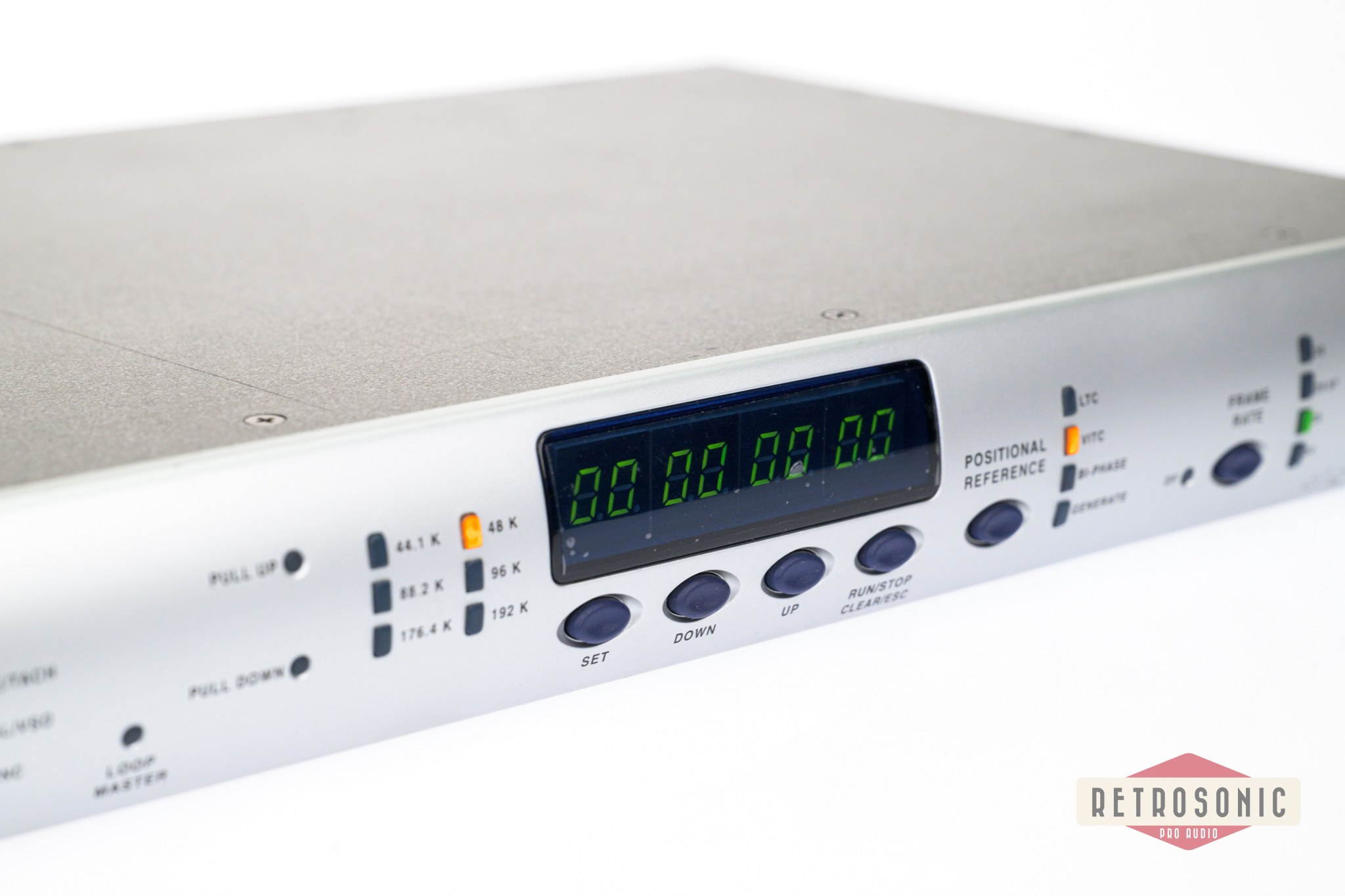

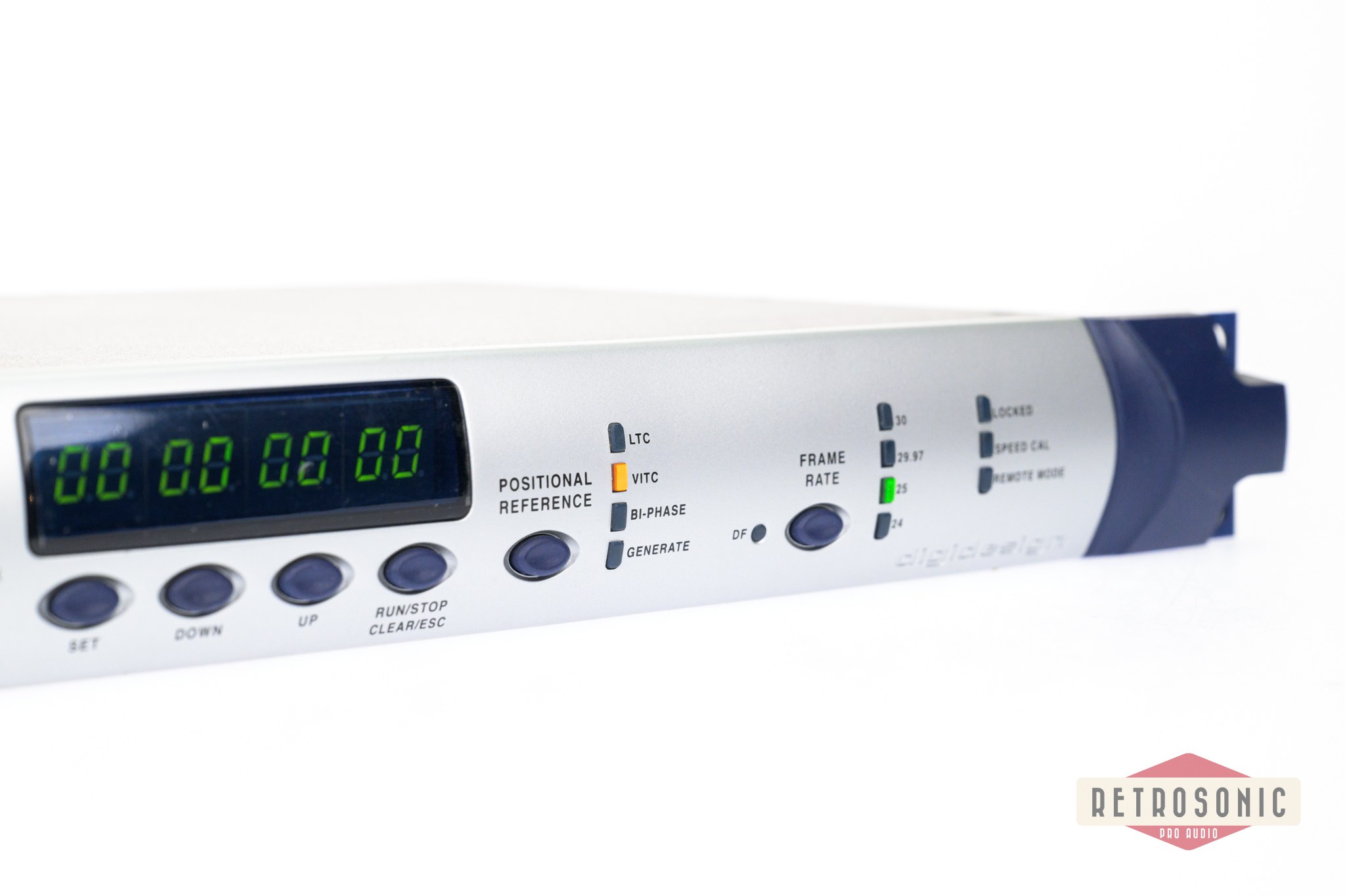

• Front panel controls and a large LED display
of time code and parameters
• Integrated control of SYNC I/O from
Pro Tools
• Time Code Character Generator
• Remote 9-Pin Deck Emulation mode
• Fader start, provided through GPI output, for remote transport control from select Pro Tools fader movement.
• SYNC I/O Setup software for Macintosh and
Windows
• SYNC I/O firmware that can be

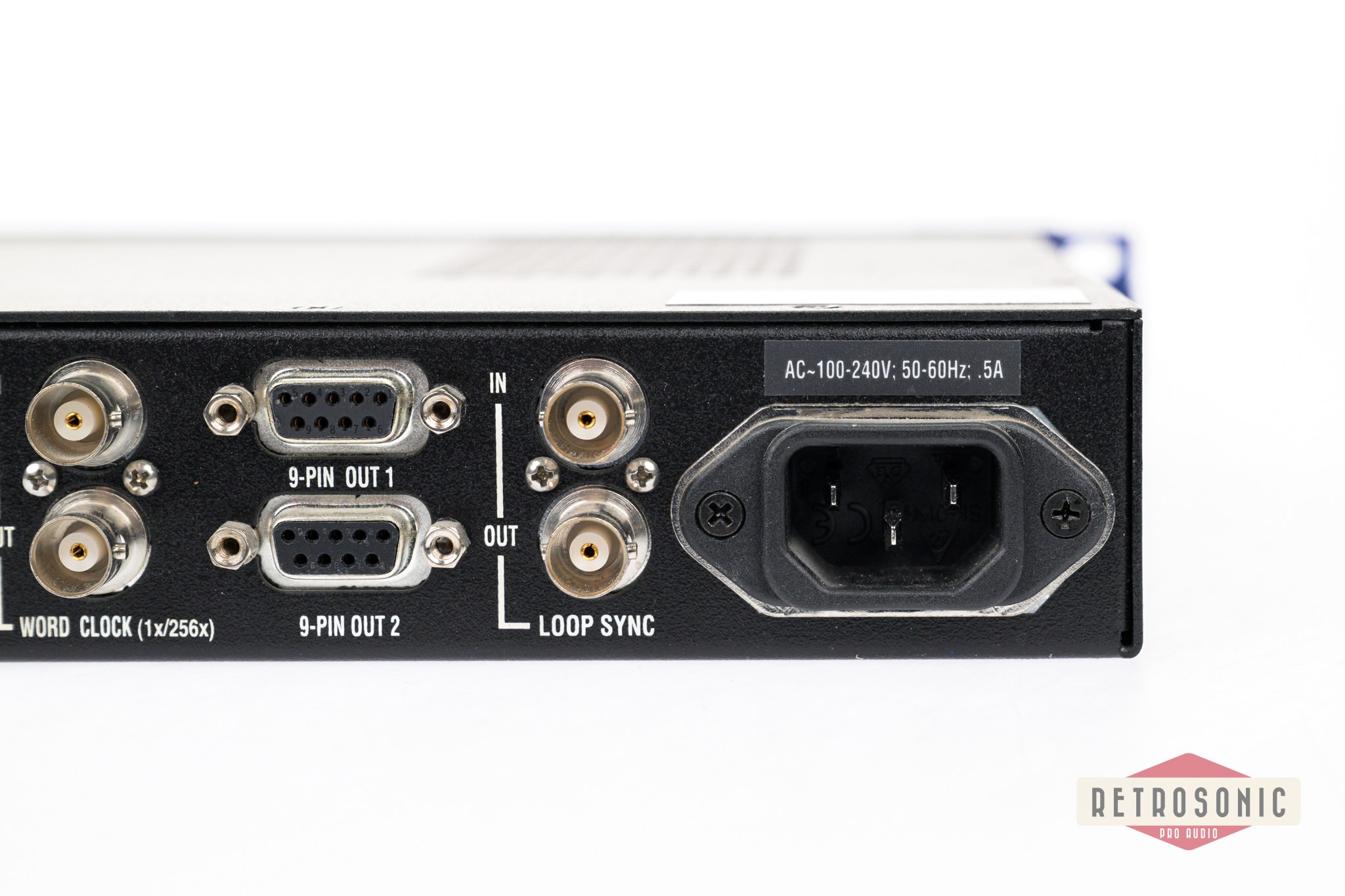

PSU works on 100-240V, EU power cord is included.
