Aviom D400 A-NeT Distributor, with A-Net input

The Aviom D400 is a straightforward, road-friendly A-Net distributor for building clean and reliable Aviom personal monitoring systems. It takes a Pro16e A-Net input and distributes both digital audio and DC power to up to eight Aviom Personal Mixers over standard Cat-5e cabling.

The D400 is the right choice when your Aviom system is fed from an analogue input module, such as the AN-16/i series, or from an A-Net digital console card. In practice, it becomes the central hub between your console input source and the musicians on stage, keeping the cabling tidy and the system easy to expand.

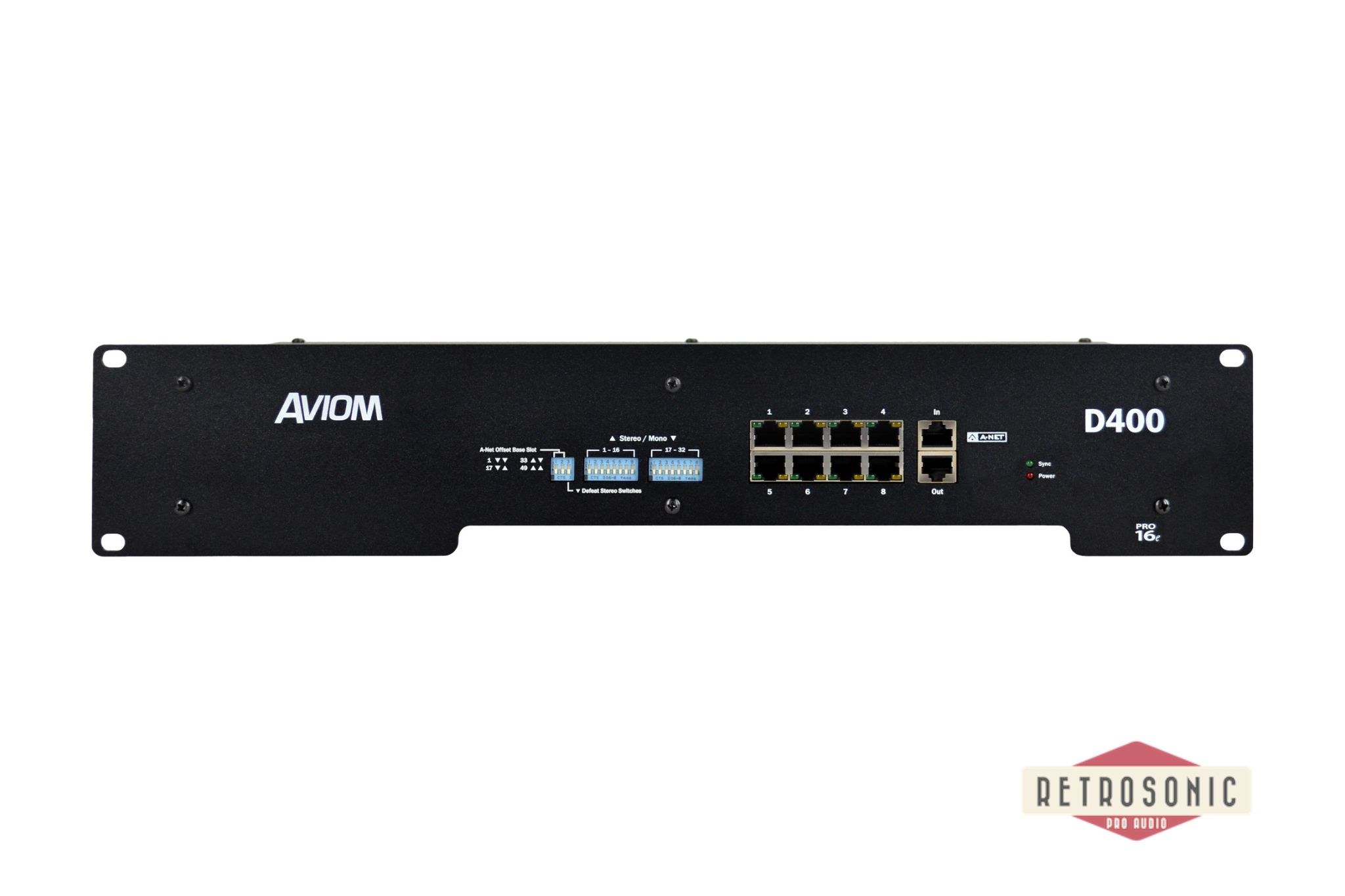

Eight powered A-Net outputs feed compatible Aviom mixers, while an additional unpowered Pro16e A-Net output lets you link to more A-Net distributors when the system grows. Front-panel Stereo Link DIP switches make it easy to assign paired channels for stereo sources, and the D400 also includes A-Net Offset switches for choosing which bank of Pro16e network slots is sent to the connected Personal Mixers.

Simple, solid and nicely focused, the D400 is exactly the kind of utility box that makes a personal monitor system feel much less complicated.

Main features

* A-Net distributor for Aviom personal monitoring systems
* Pro16e A-Net input on RJ45 connector
* 8 powered A-Net outputs for Personal Mixers
* Additional unpowered Pro16e A-Net output for system expansion
* Provides 24V DC power to connected mixers over Cat-5e cable
* Compatible with Aviom A640, A360, A320 and A-16II Personal Mixers
* Designed for use with Aviom analogue input modules and A-Net console cards
* Stereo Link DIP switches for assigning stereo channels
* A-Net Offset DIP switches for selecting the starting network slot
* Supports larger systems by linking additional A-Net distributors
* Power and Network Sync LEDs
* Internal power supply with IEC connector
* 2U rackmount format
