Grace Design m701 base unit

The Grace Design m701 is a modular, high-capacity audio interface engineered for professional and commercial recording environments. Built around a flexible architecture, it delivers pristine conversion, extensive connectivity, and powerful system control for today’s hybrid studios.

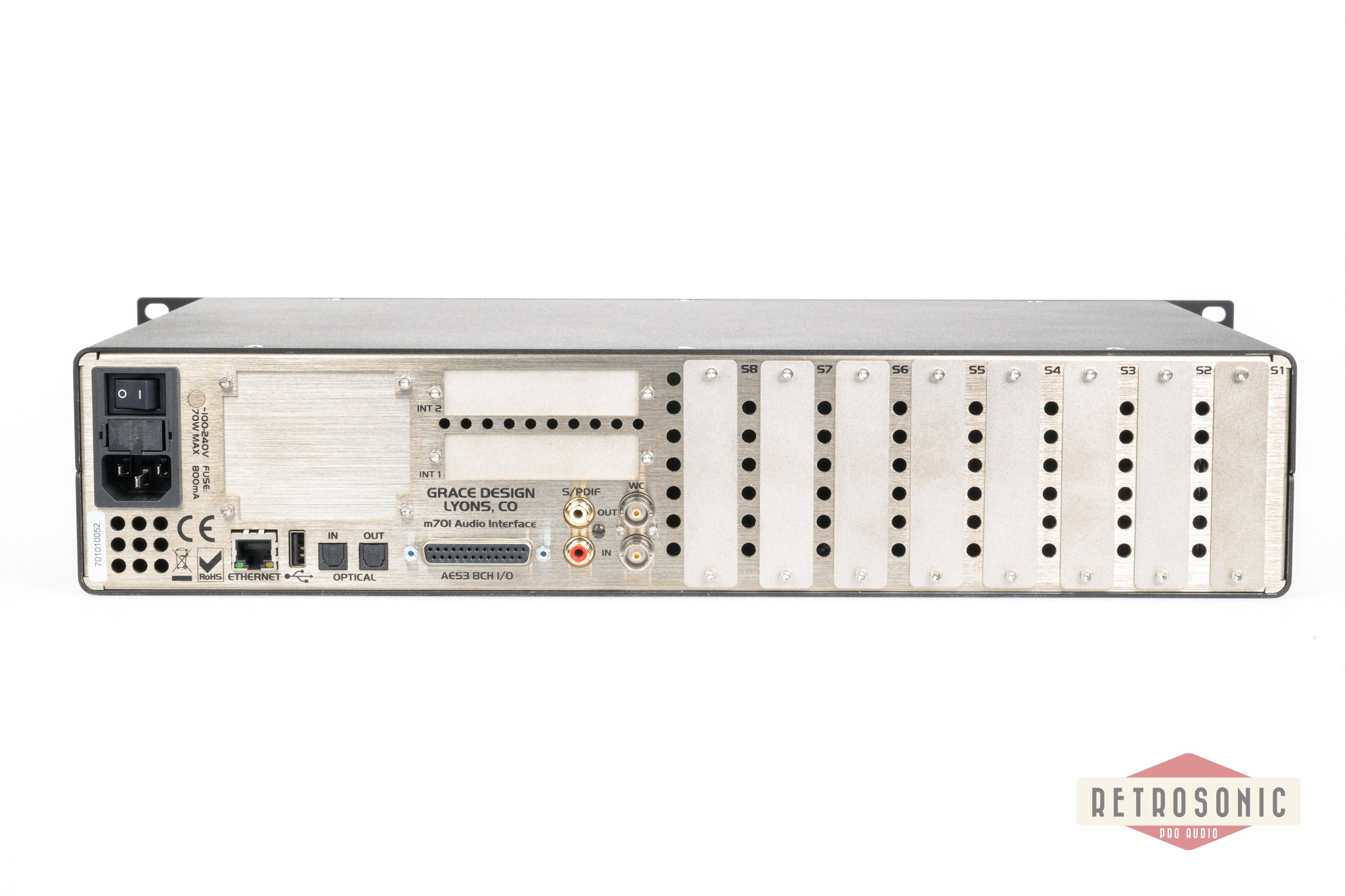

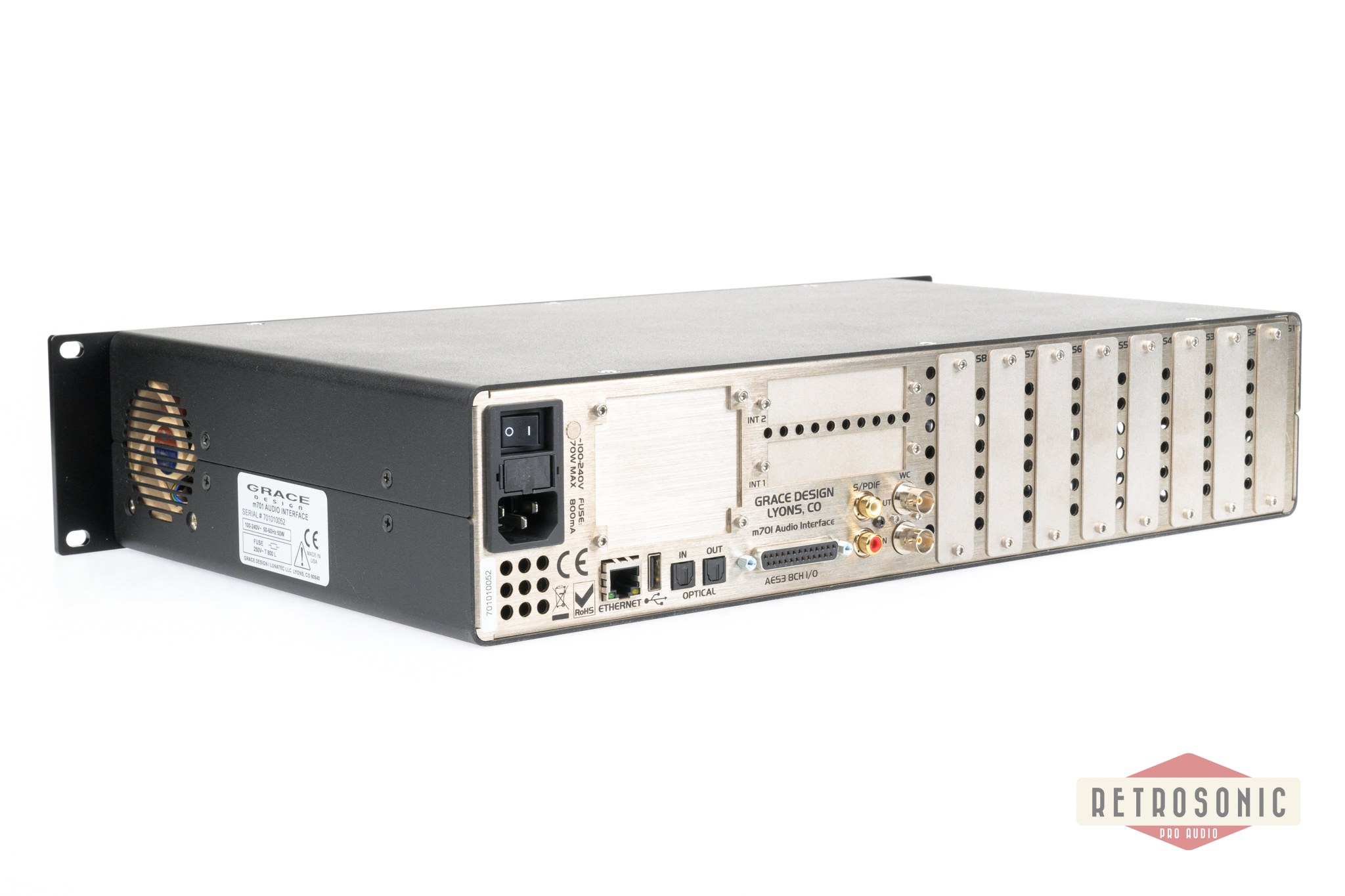

The chassis houses eight card slots, each capable of hosting 8-channel AD or DA modules. This allows users to configure up to 64 channels of reference-grade analog I/O in any combination. For digital workflows, the m701 offers dedicated option slots for Digilink, Dante, Ravenna/AES67/ST2110, and upcoming formats such as USB2 (32×32). A third expansion slot supports additional modules, including 24-channel AES3 I/O, Word Clock distribution, or future monitoring functions. Standard baseboard connections include 8ch AES3, 8ch ADAT, and 2ch S/PDIF. Users may also install Grace Design’s optional 4-channel premium microphone preamp modules into any of the eight slots.

GraceNet Control

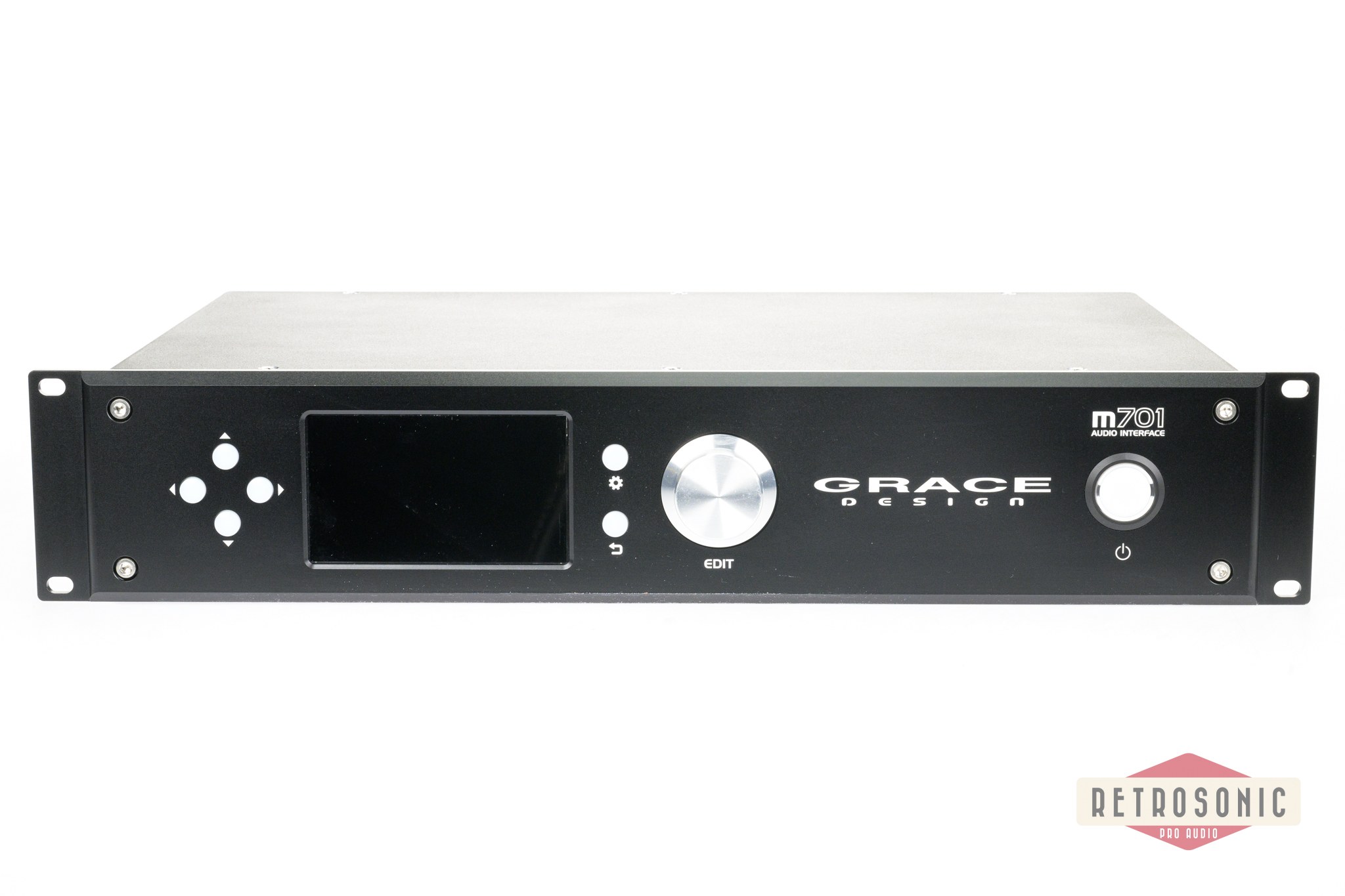

Operation is seamless from either the front panel or the built-in GraceNet web interface. No drivers or software are required—any browser can connect instantly. Both front panel and GraceNet provide comprehensive metering of all I/O, full configuration access, and direct integration with Grace Design m108 microphone preamplifiers.

Cue Mixing
For tracking, the m701 includes a 32×8 low-latency mixer. Multiple cue mixes can be created and delivered directly to artists, accessible via GraceNet on any personal device such as a phone or tablet.

Features
• Up to 64 channels of analog I/O
• Up to 212 channels of digital I/O
• Reference-grade 8-channel AD/DA modules
• Eight 8-channel AD/DA option slots
• Option modules: Digilink, Dante, Ravenna/AES67/ST2110, USB2 (upcoming)
• Additional 24-channel AES3 expansion module

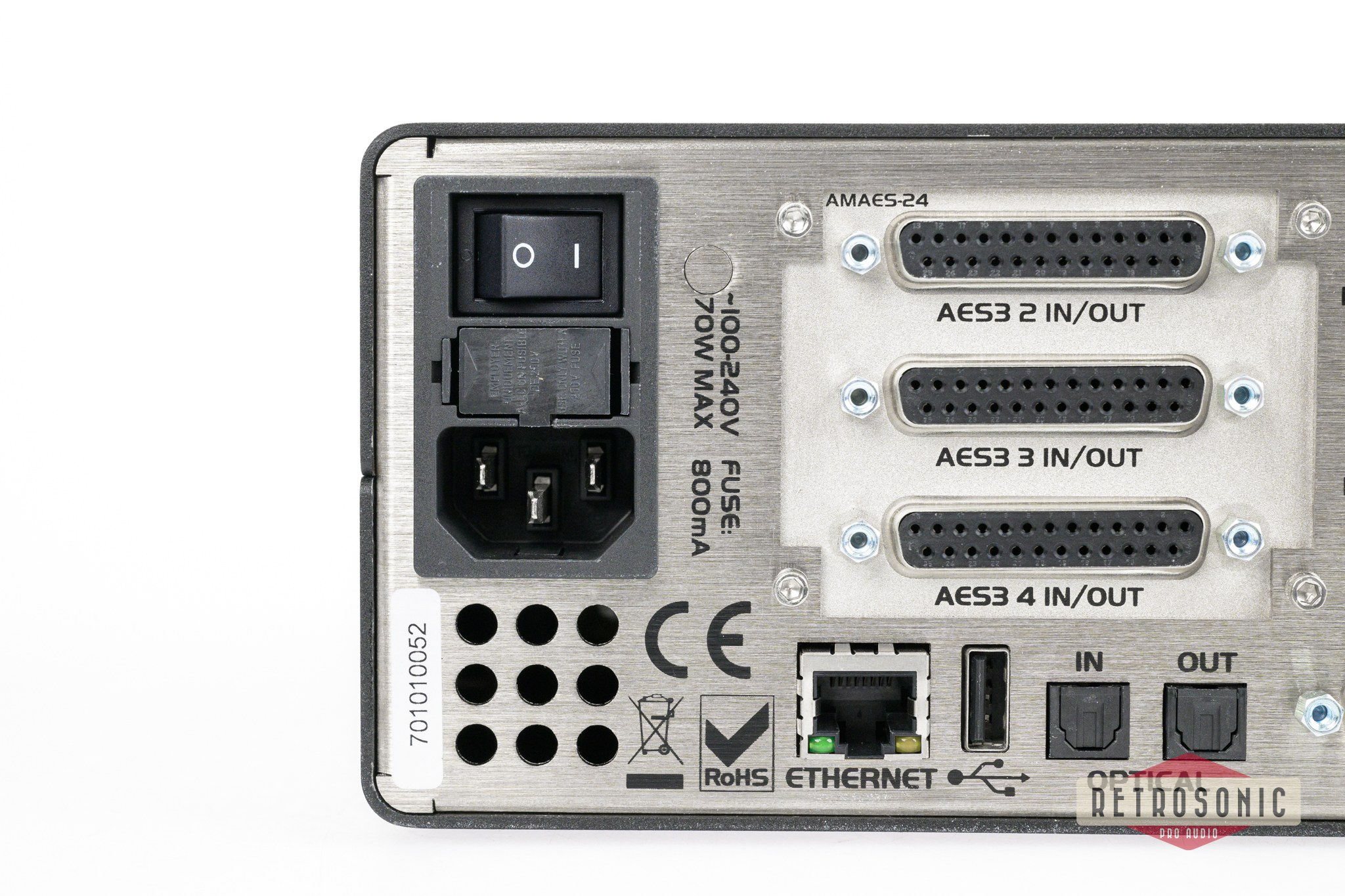

• Baseboard I/O: 8ch AES3, 8ch ADAT, 2ch S/PDIF
• Optional 4ch high-performance mic preamp modules
• Integrated control for Grace Design m108 preamps
• GraceNet Ethernet/web browser control – no software required
• Built-in 32×8 low latency cue mixer
• System workflow: load, edit, save, recall
• 5-year transferable warranty

Latency Performance
• ADC to Digital Out:
• 0.5 ms (48 kHz)
• 0.25 ms (96 kHz)
• 0.12 ms (192 kHz)
• Digital In to DAC:
• 0.8 ms (48 kHz)
• 0.4 ms (96 kHz)
• 0.2 ms (192 kHz)
