A high fidelity 8 channel remote controlled microphone preamplifier
SKU: K_2428
used Very good In stock
Contact for price
Please fill in all the required fields
SEND
Paypal Wise
Invoice
Description
Shipping & VAT

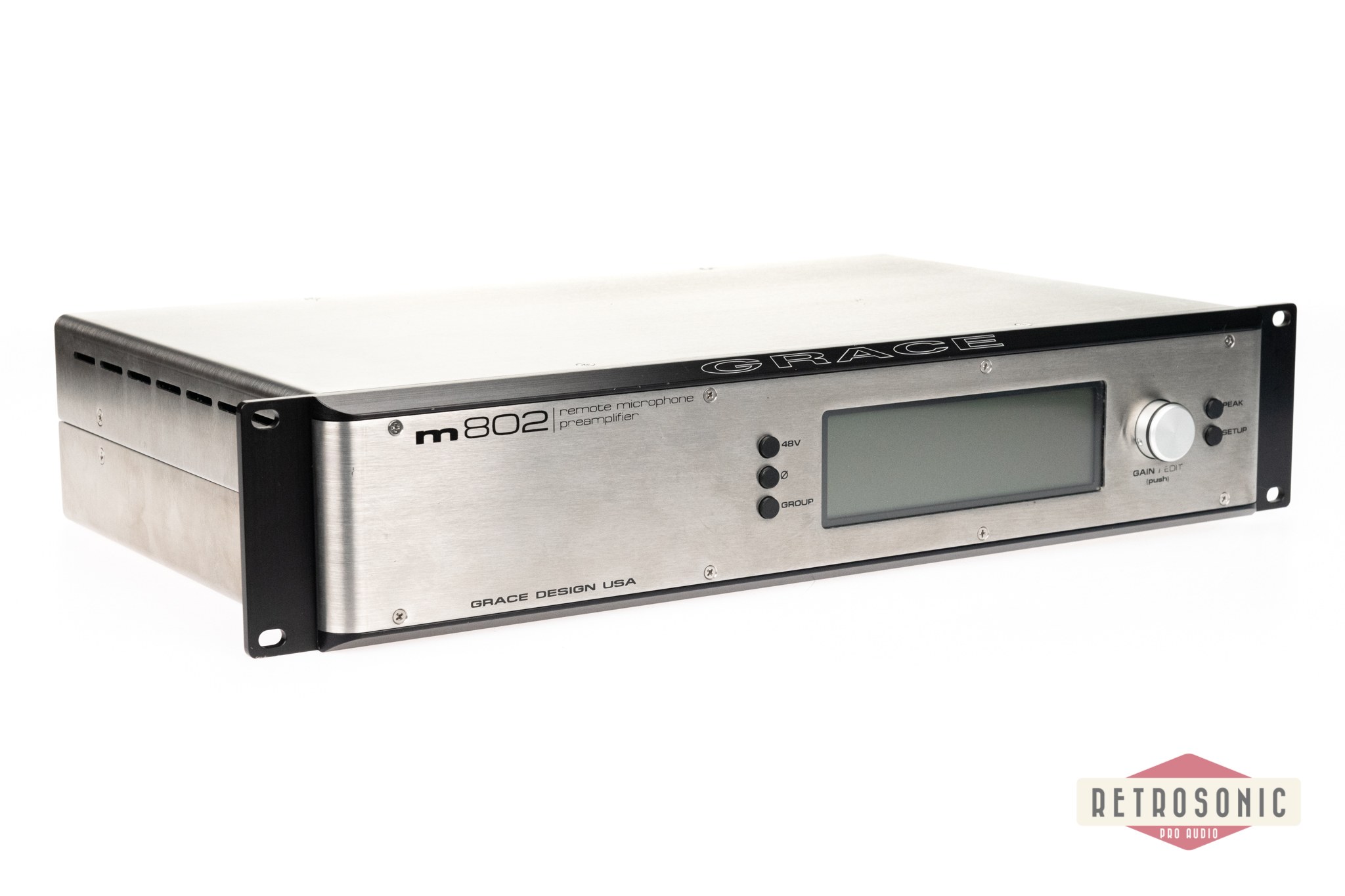

A transparent and musical 8 channel 2U rack preamplifier.
Up to 8 units can be connected into one remote-controlled 64 channel system.

All preamplifier functions, including gain, phase, 48V phantom are instantly ac- cessible and adjustable. These settings can then all be stored into preset locations and instantly recalled.

The m802 can also be controlled direct- ly from Avid ProTools systems, compatible control surfaces and many other MIDI devices.

The m802 includes ribbon mic mode, which shifts the preamplifier’s entire gain range up 10dB, while deactivating 48V phantom power, optimizing input impedance and bypassing the decoupling capacitors.

Fast, musical transimpedance amplifier architecture
• fully balanced, transformeless design
• flexible digital metering with peak hold and reset
• controllable from Avid ProTools|HD systems and compatible control surfaces (and many other MIDI devices)

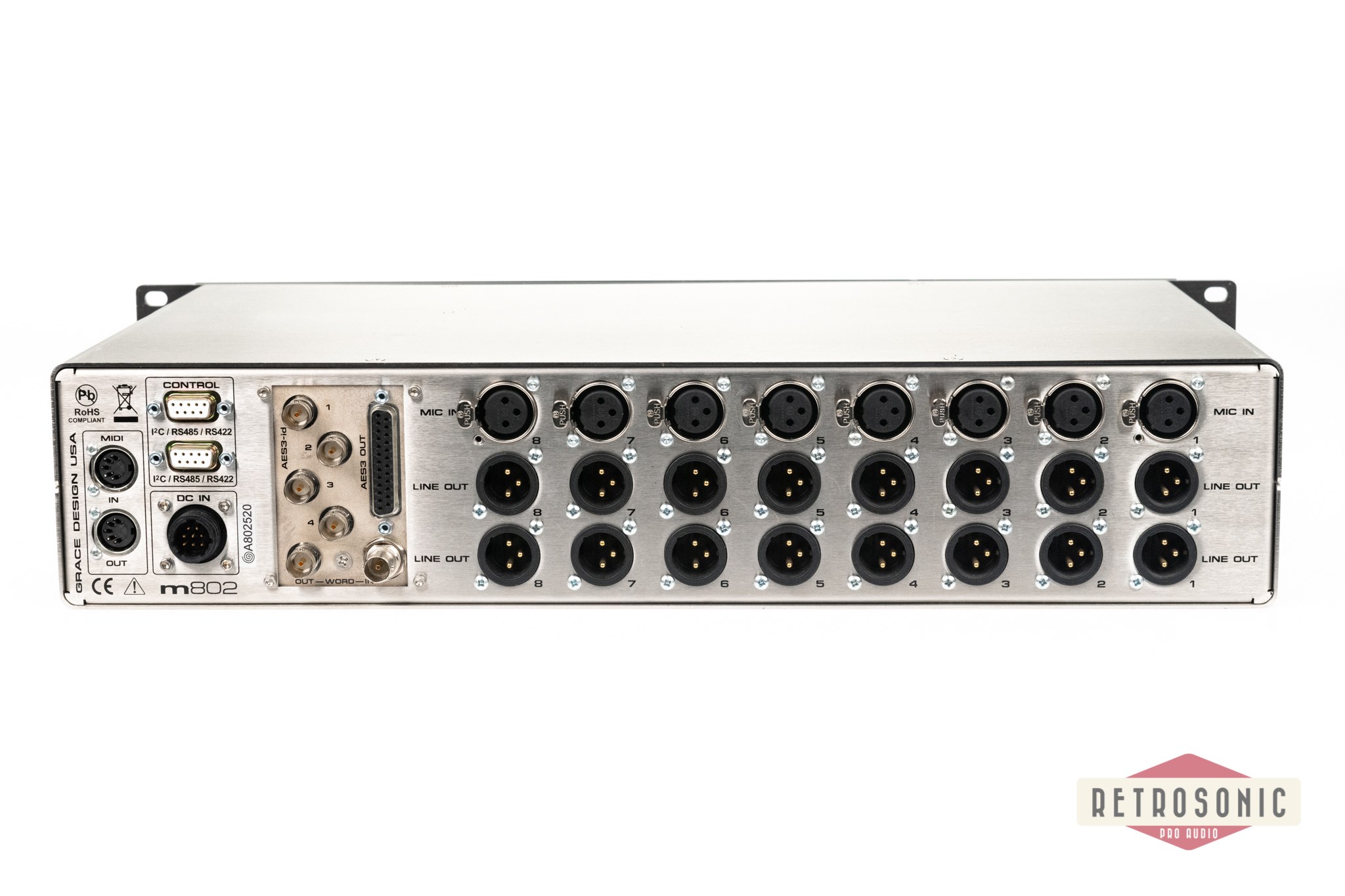

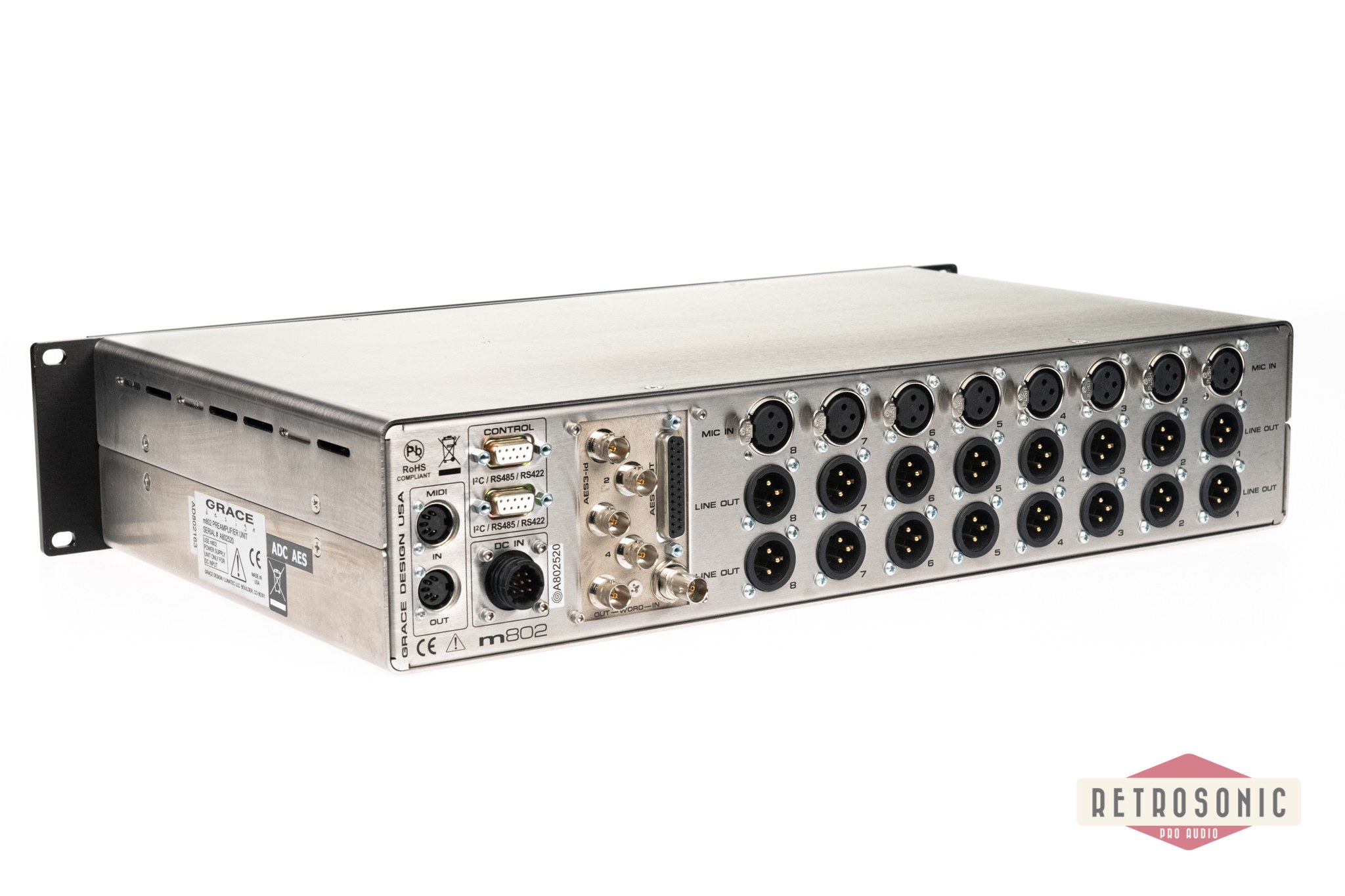

• dual high-current outputs (XLR+D-Sub) drive long cable runs and loads down to 50 Ohms
• fast, efficient Philips I2C serial protocol to control preamplifiers from up to 1000 feet away
• gain range of -7dB to +63dB in 1.5 dB steps
• new selectable ribbon mic mode
• channel group mode (perfect for stereo pairs, subgroups)
• RCU able to address up to 8 units (64 channels)
• front panel lockout mode

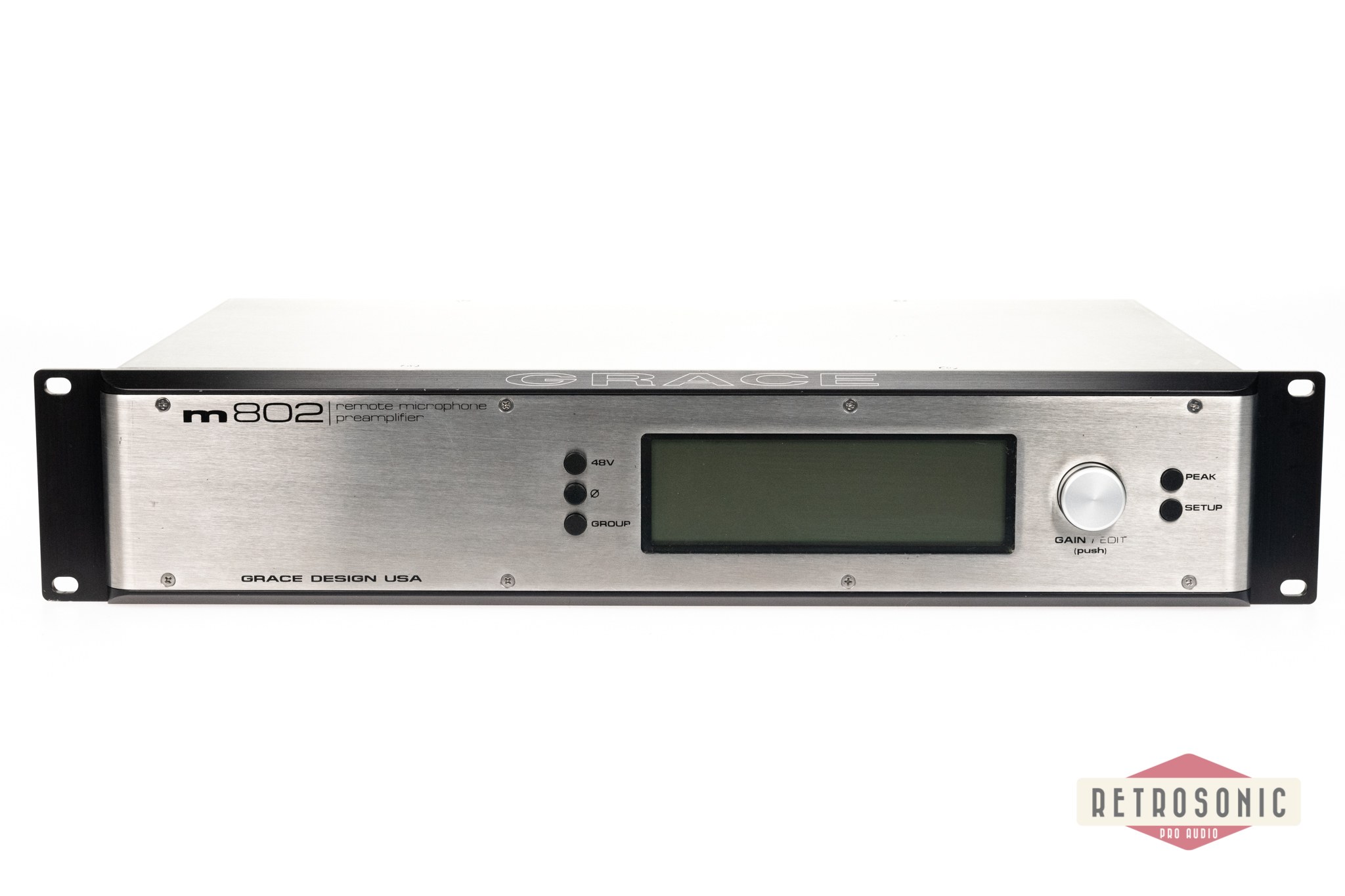

• large neutral backlit LCD display
• 15 User preset memory locations, for saving pre- amplifier settings (gain, phantom power, phase)
• optional reference quality 24bit/192kHz A/D con- verter card

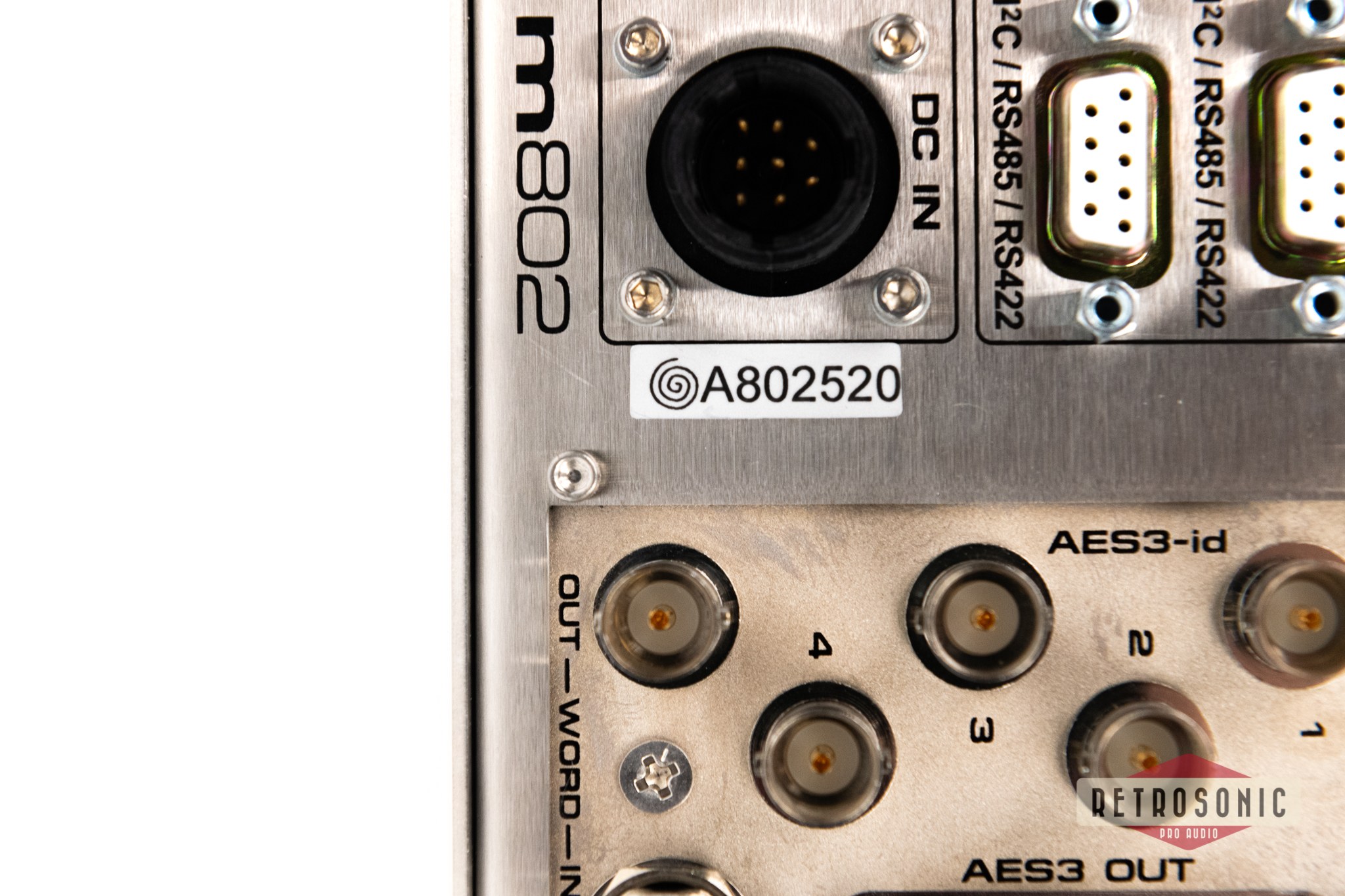

• A/D outputs include 2x8ch AES3 on DB25, 1x8ch AES3-id on 4 BNC connectors (supports double wire mode)
• optional ADAT Lightpipe output with SMUX for 96kHz
• s-LockTM dual stage PLL for extremely low jitter without sample rate conversion
• wordclock in and out
• 130V phantom power available, per channel pair, for DPA microphones

Serial Nr.: #A802520

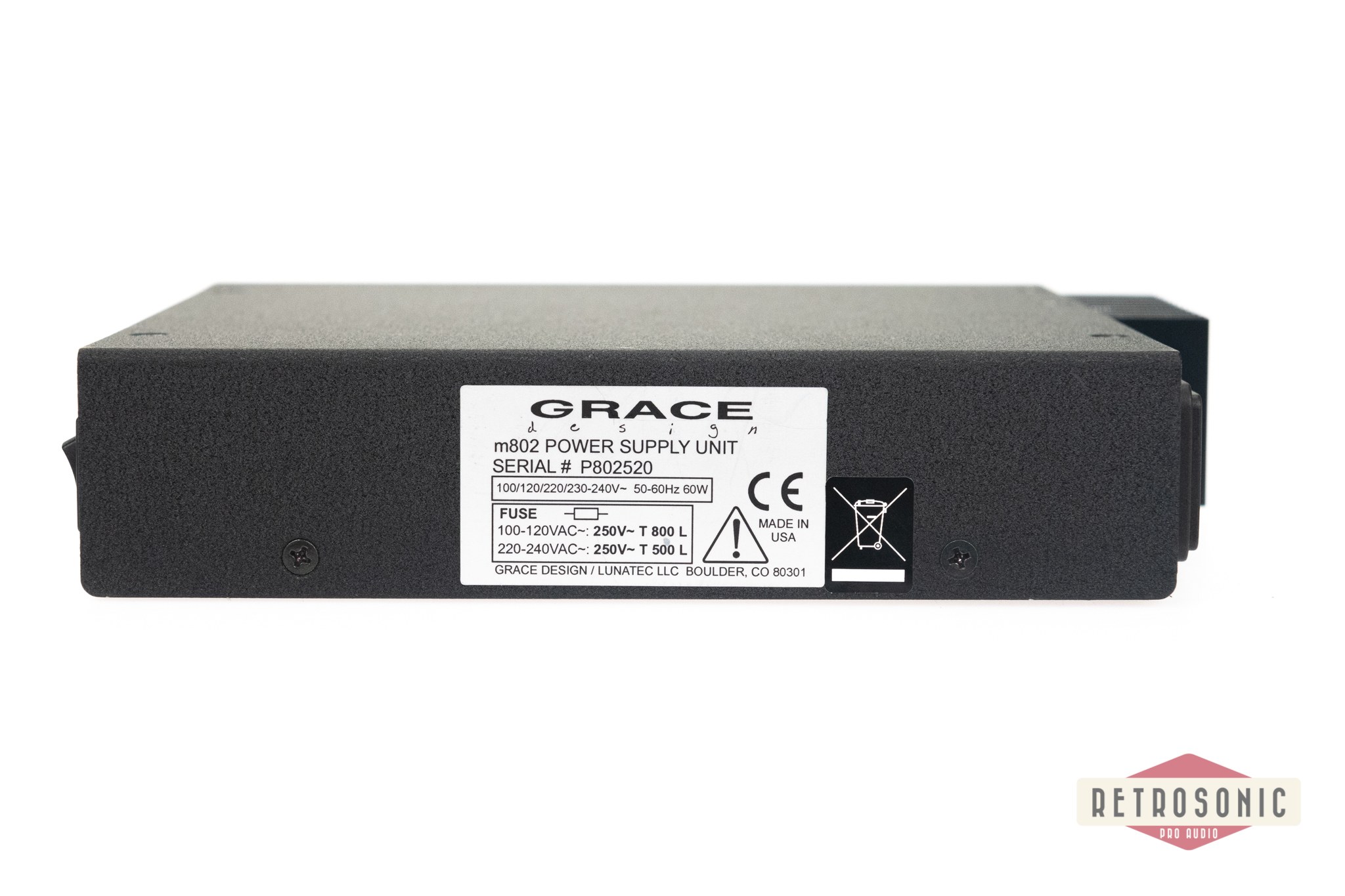

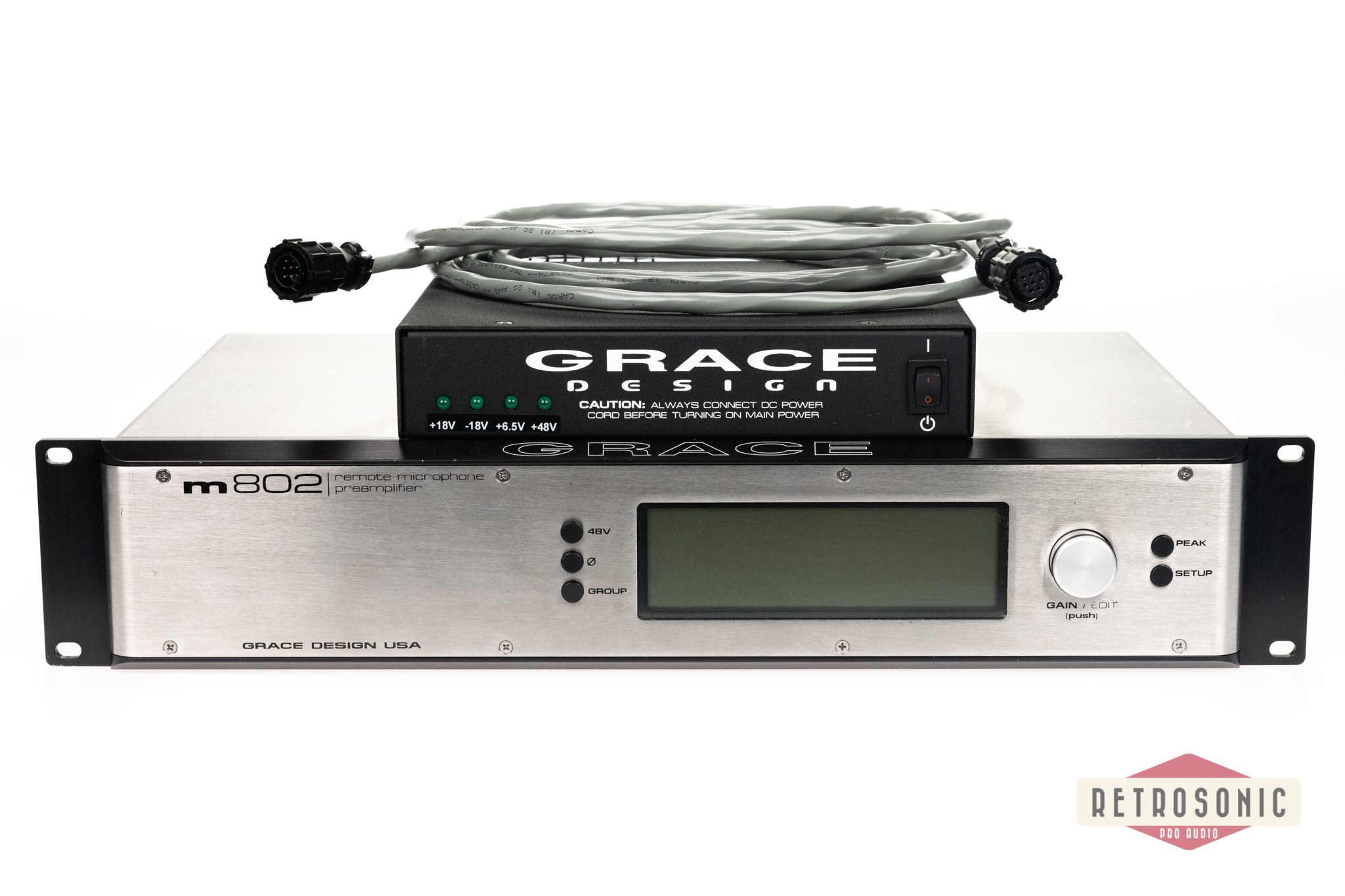

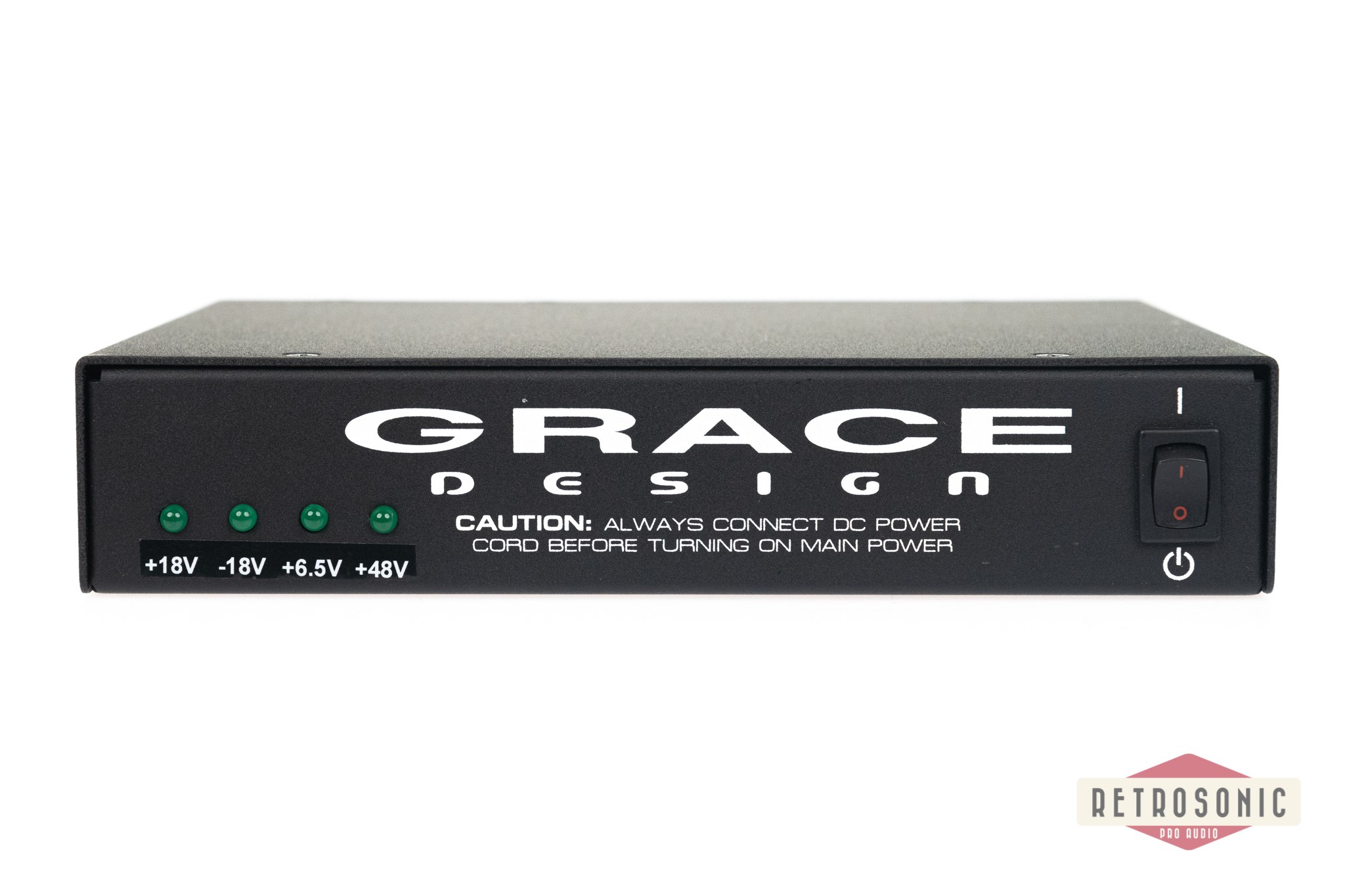

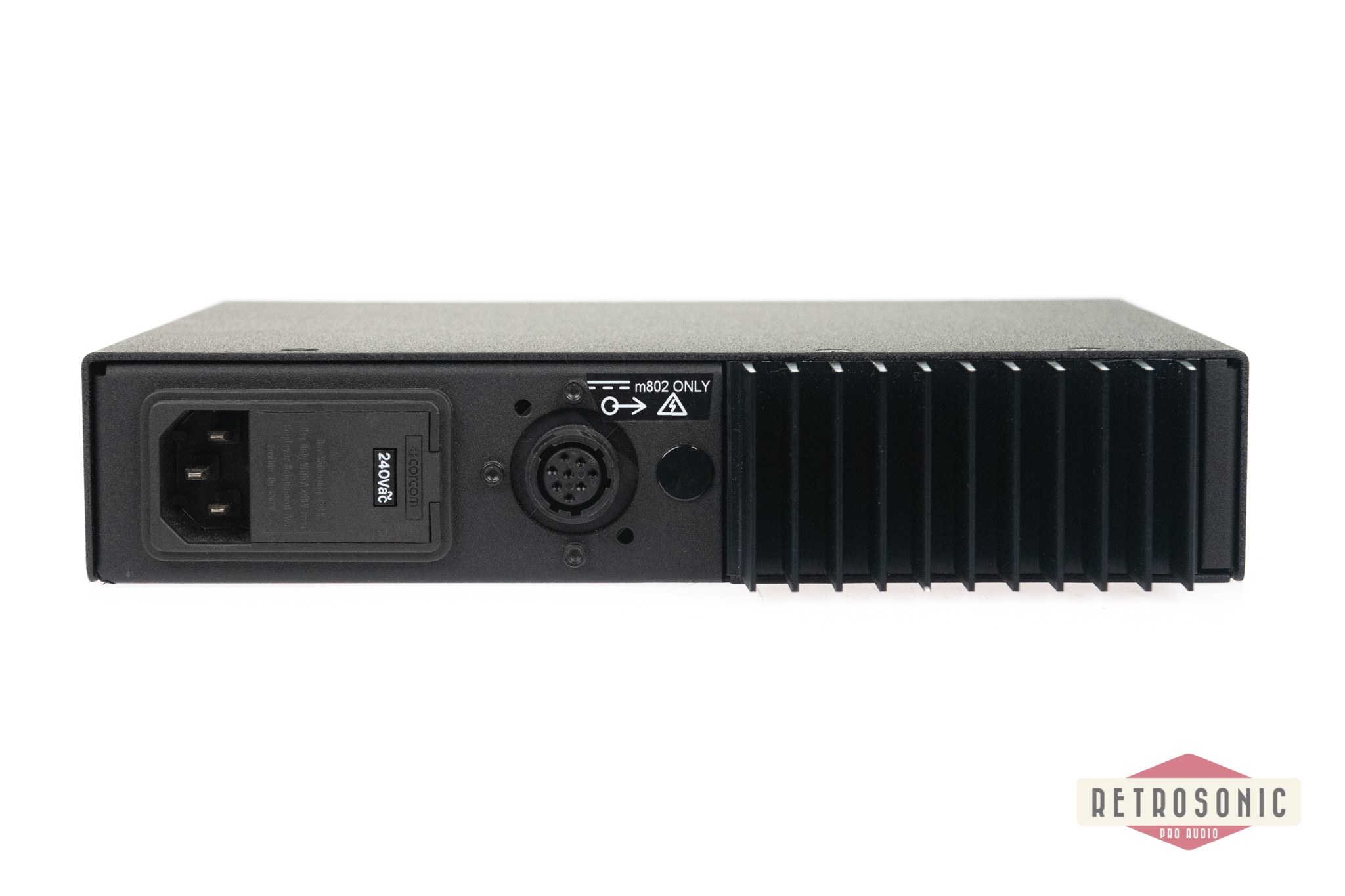

Excellent working condition, good visual condition. PSU operates on 120-240V, depending on the fuse installed. Currently set to 240V operation. EU power cord included.
