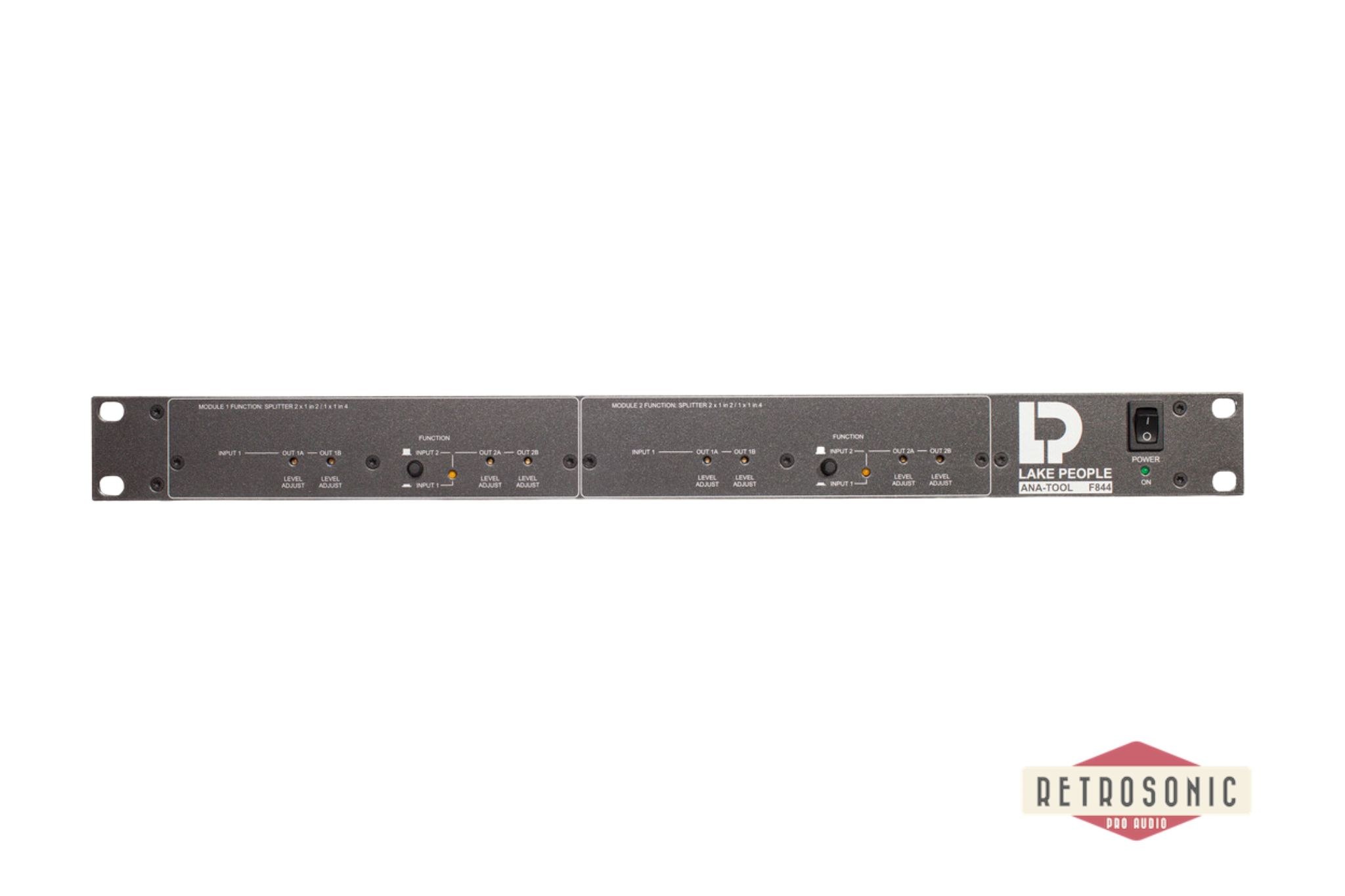

Lake People ANA-TOOL F844

The Lake People ANA-TOOL F844 is a high-quality balanced line distribution amplifier designed for studio, broadcast, and installation work. It features four identical sections, each with one balanced input and two balanced outputs, and can be switched from 4 x 1-in/2-out operation to 2 x 1-in/4-out from the front panel. Internal access also allows wider distribution configurations.

Built for line-level signals, the F844 uses precision differential input stages with excellent common mode rejection, helping preserve signal integrity even in more demanding setups. Front-panel multiturn trimmers allow accurate level adjustment from -12 to +12 dB, while the balanced outputs are designed for strong rejection performance and stable drive capability.

Bandwidth is sensibly filtered to a useful 5 Hz to 70 kHz range, and all XLR connections use gold-plated contacts. With its rugged 1U steel chassis and no-nonsense design, the F844 is exactly the kind of utility tool that quietly earns its place in a professional rack.

Features
• balanced analog distribution amplifier for line-level signals
• four identical 1-in / 2-out sections
• front-panel switching for 2 x 1-in / 4-out operation
• internal access for expanded distribution modes
• precision differential input stages with high CMRR
• front-panel multiturn level trims, -12 to +12 dB

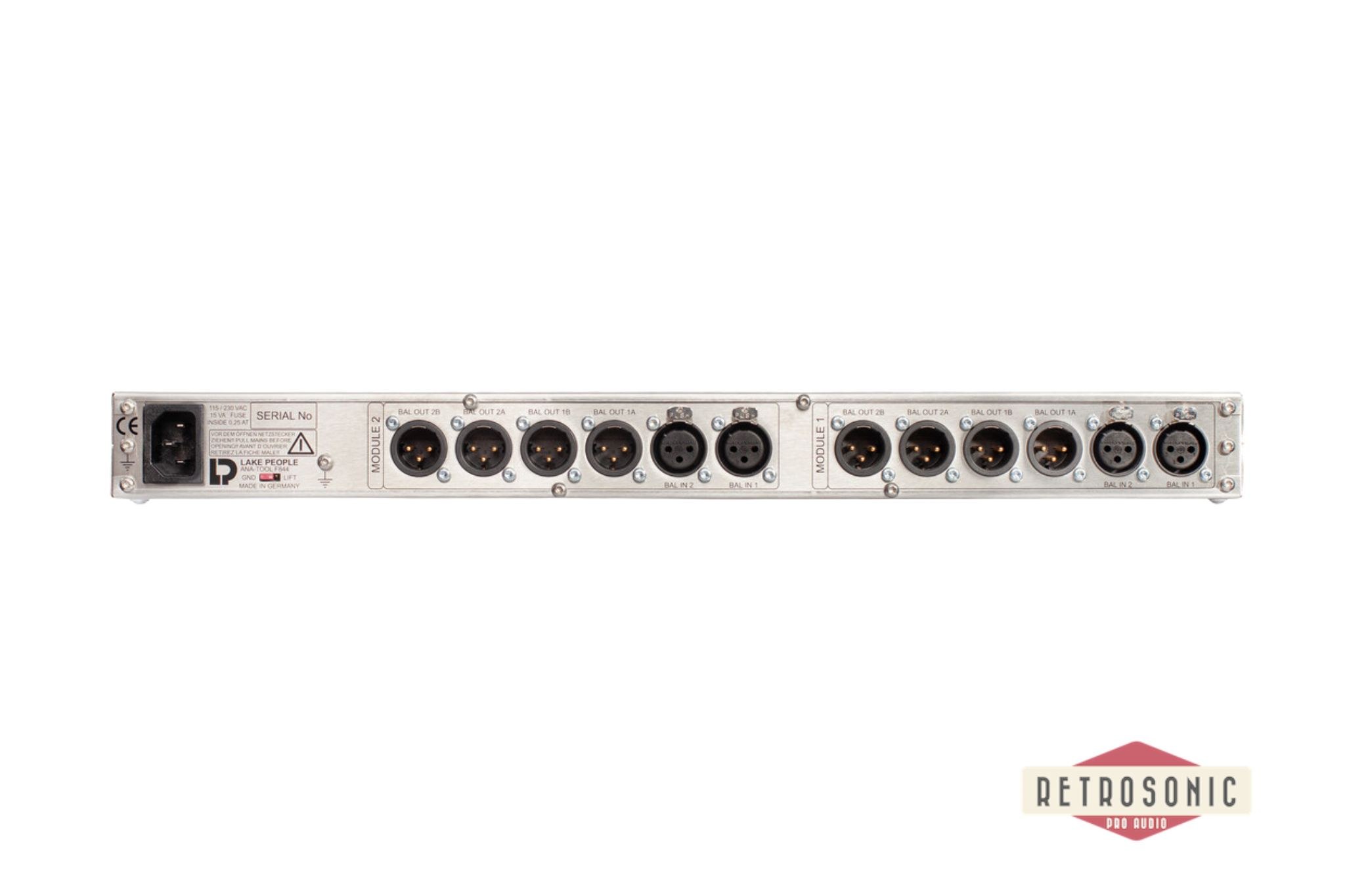

• balanced XLR I/O with gold-plated contacts
• bandwidth limited to 5 Hz to 70 kHz for stable operation
• 30 ohm output impedance to IRT standard
• rugged 19-inch, 1U steel chassis
