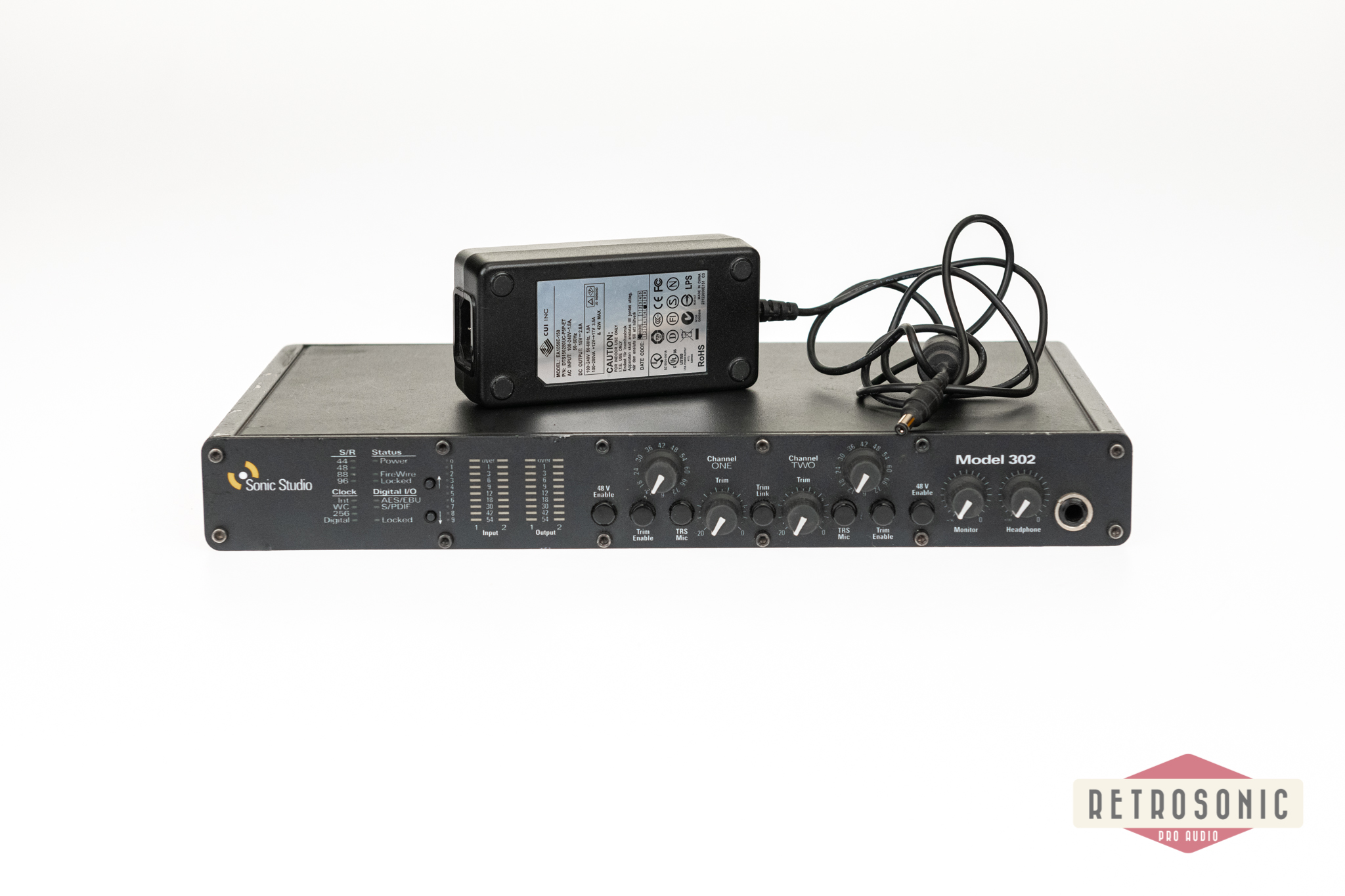

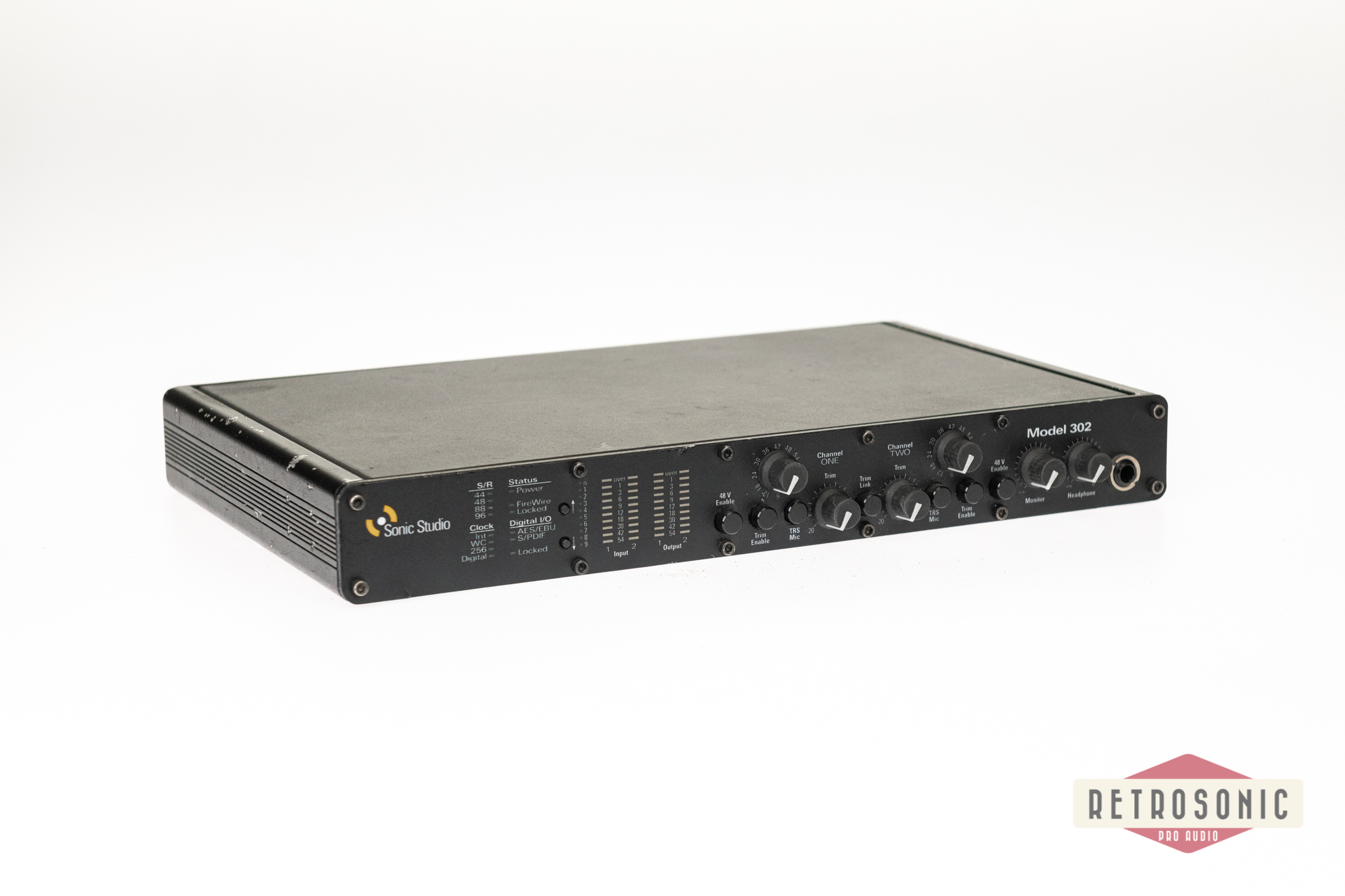

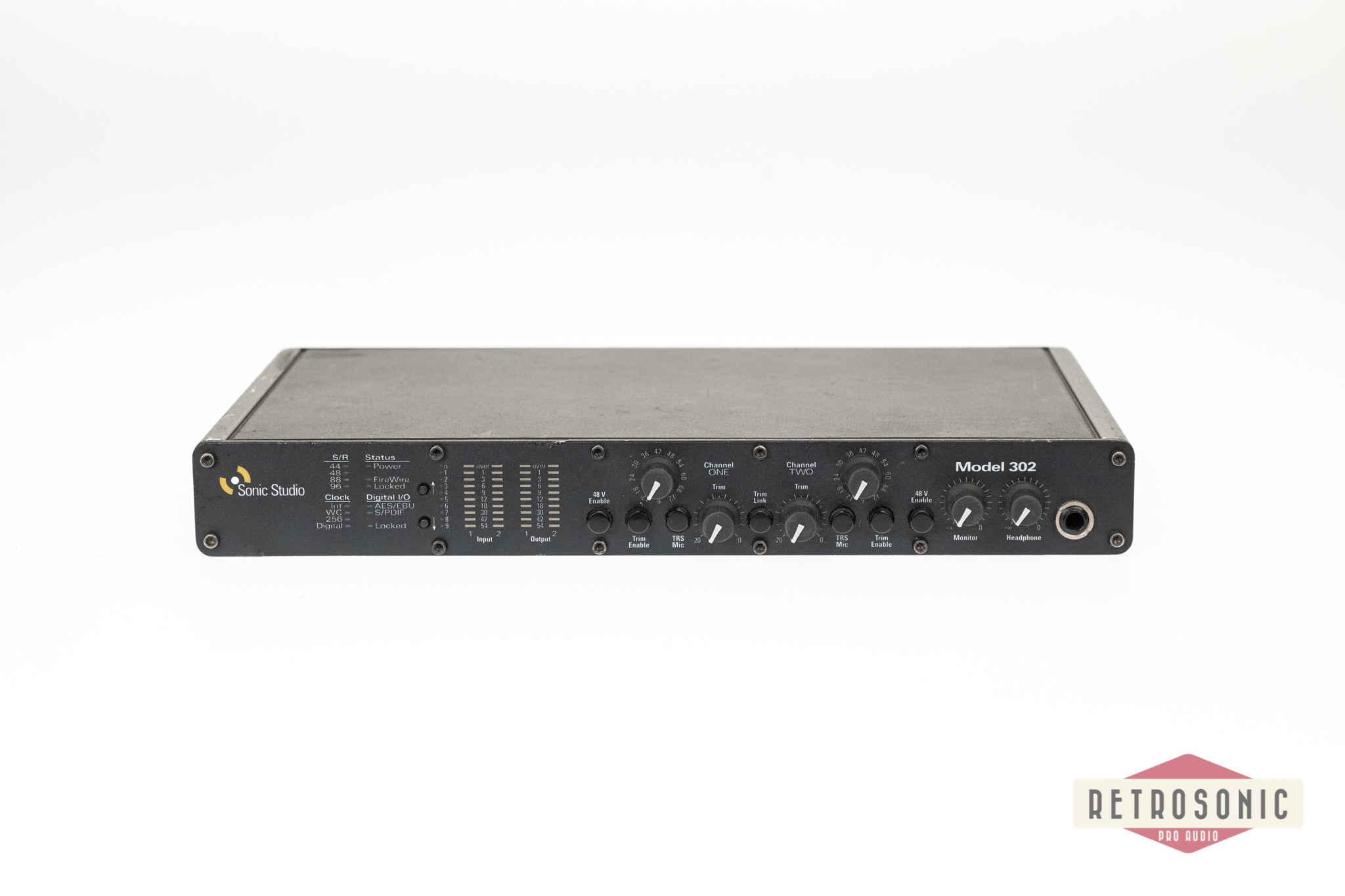

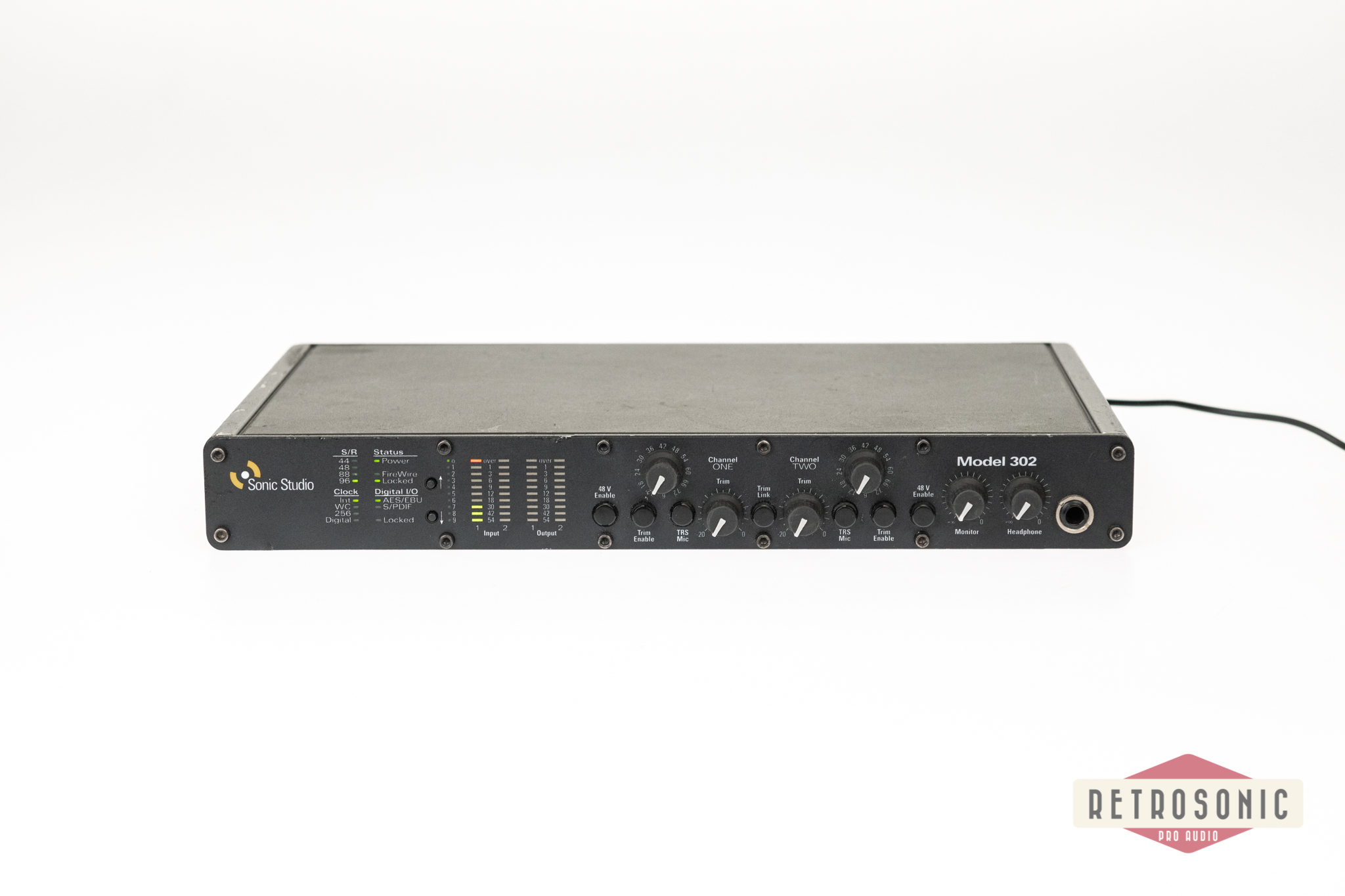

Two low noise mic preamps and low latency monitoring with extensive processing and routing- that is what put the Sonic Studio Model 302 DSP I/O Processor in the major leagues.
The signal path, built with extended precision, includes Sonic EQ and 90 other plug–ins for recording mixing and mastering.
4 inputs, 6 outputs are routable with full 96/24 simultaneous I/O.
The interface is compatible with Mac audio applications via Core Audio I/O.
Some of the features include:

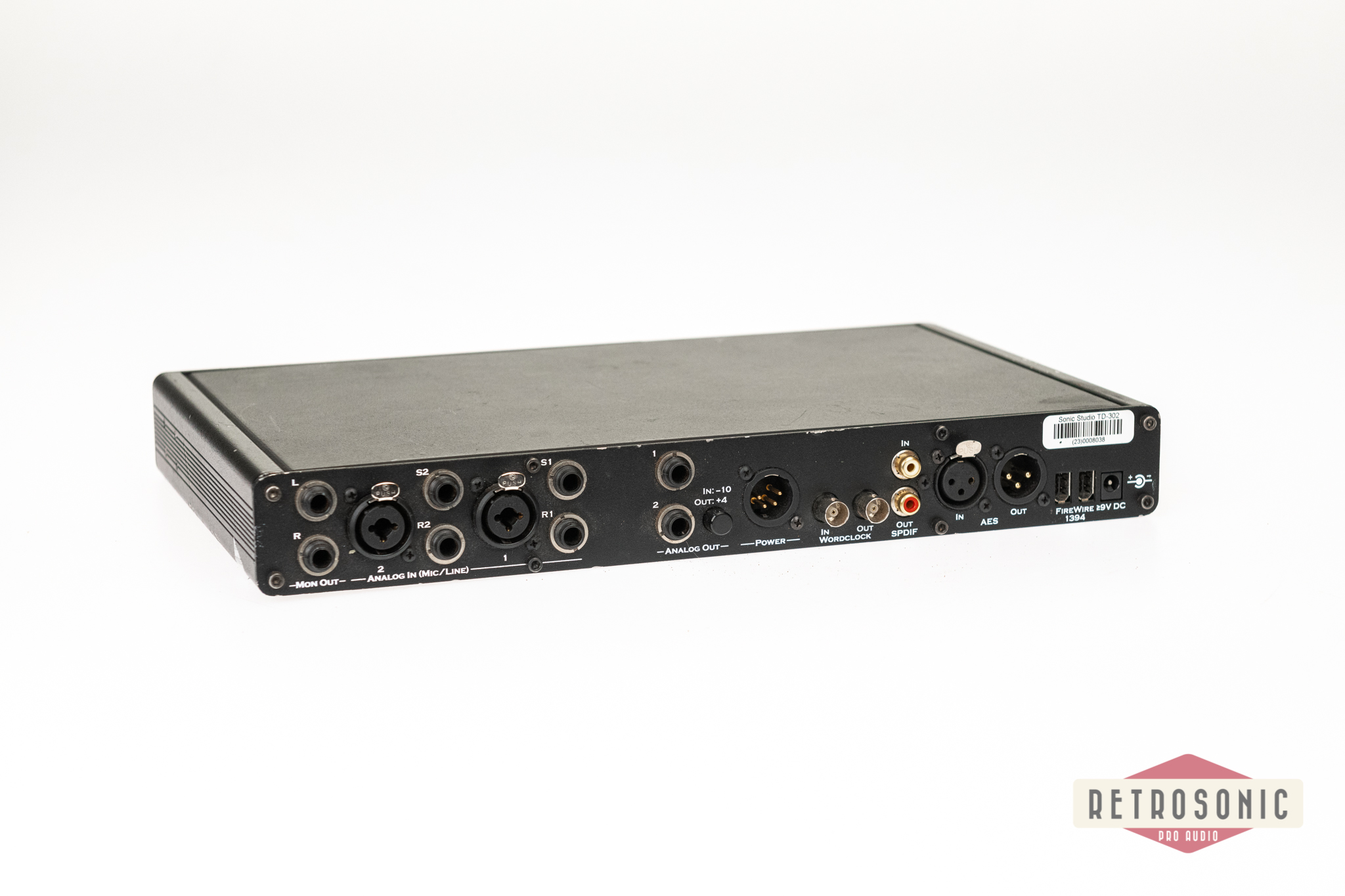

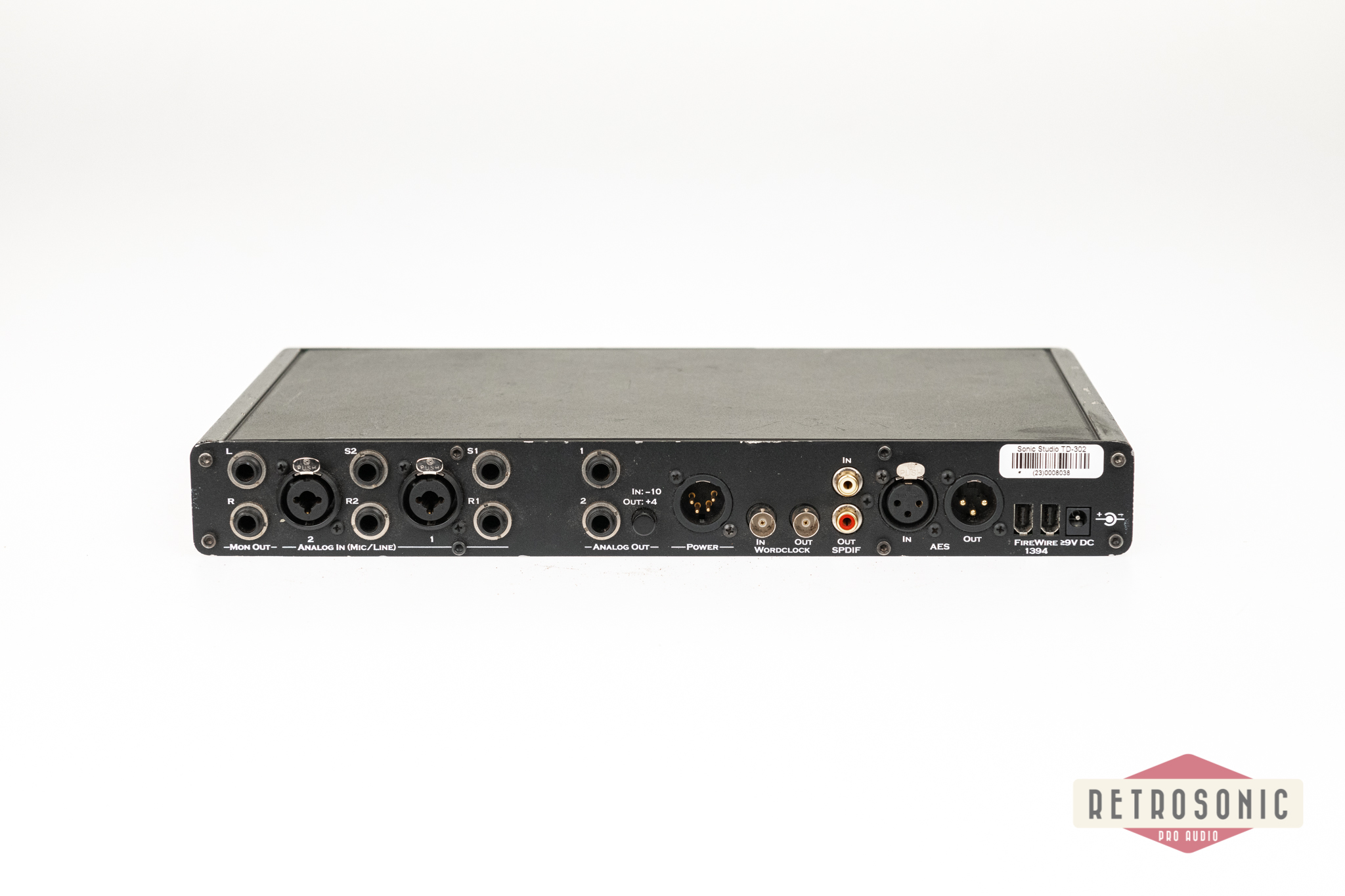

• 2 balanced analog inputs, 1⁄4” TRS & XLR
• 2 balanced analog outputs, 1⁄4” TRS, switchable -10 or +4 dBu
• 2 balanced analog monitor outputs, 1⁄4” TRS
• Stereo balanced analog send & return, 1⁄4” TRS
• 2 channels of high gain, very low noise mic preamplification w/ switchable phantom power
• High quality headphone output, 1⁄4” TRS
• 24 bit A/D converters, 110 dB dynamic range
• 24 bit D/A converters, 120 dB dynamic range
• 44.1, 48, 88.2, 96 kHz sampling rates
• AES/EBU 24 bit/96 kHz bidirectional audio I/O
• Low jitter Word Clock I/O, 1x or 256x “SuperClock” on BNC
• Stereo digital input, AES/EBU or S/PDIF selectable
• Switchable asynchronous sample rate conversion on input
• Stereo digital output, simultaneous AES/EBU & S/PDIF
• 4 simultaneous inputs, 6 simultaneous outputs
• Dual FireWire 400 (IEEE 1394a) host connectors — bus, mains or battery powered
• Fully supports Core Audio for all Mac OS X applications
• Beefy DSP in hardware
• Sonic EQ included
• Light weight & portable
• Rack mount kit hardware included

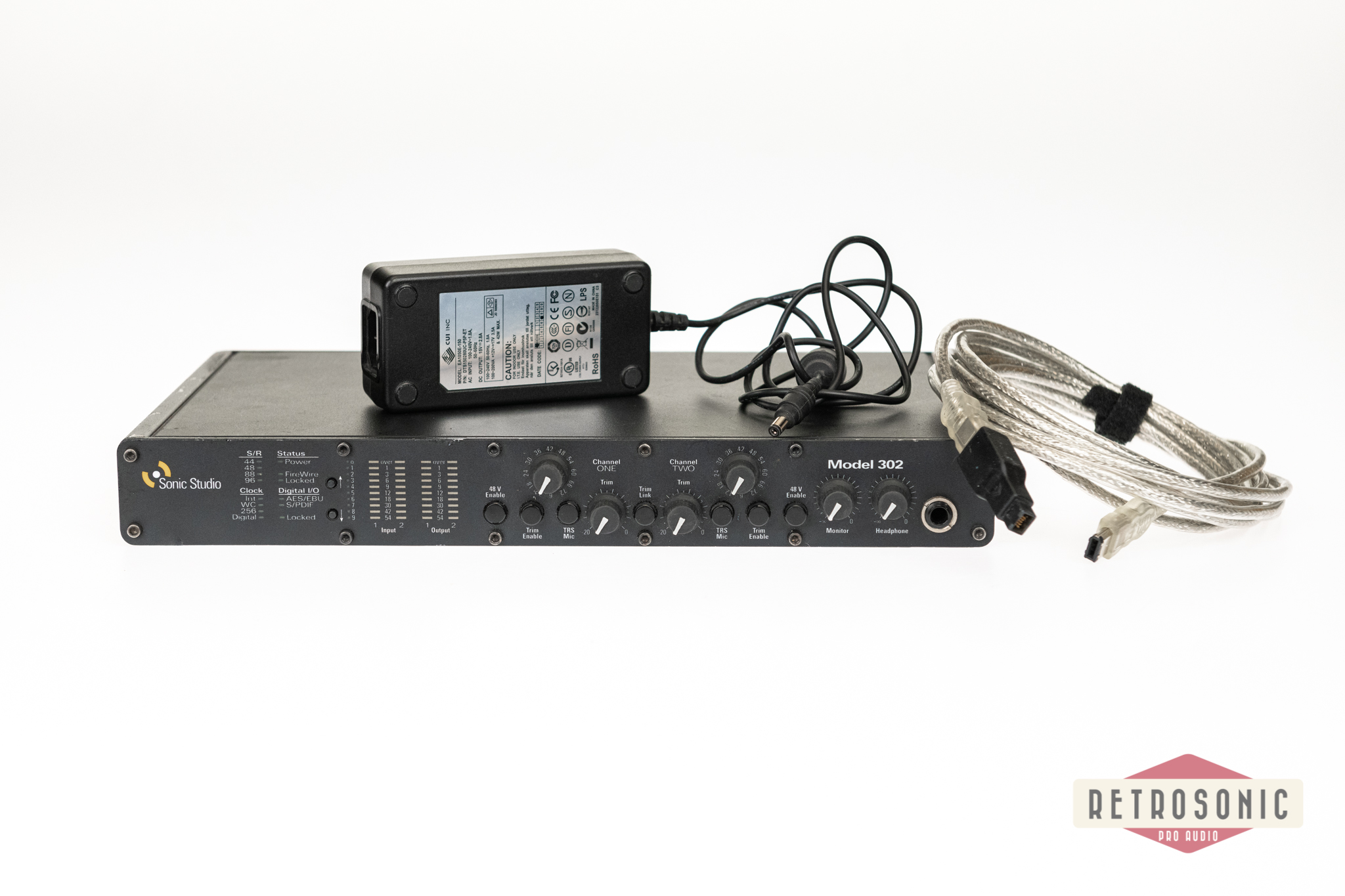

The interface is in excellent working condition, good visual condition, has some minor signs of wear. PSU operates on 100-240V. FireWire cable included.
