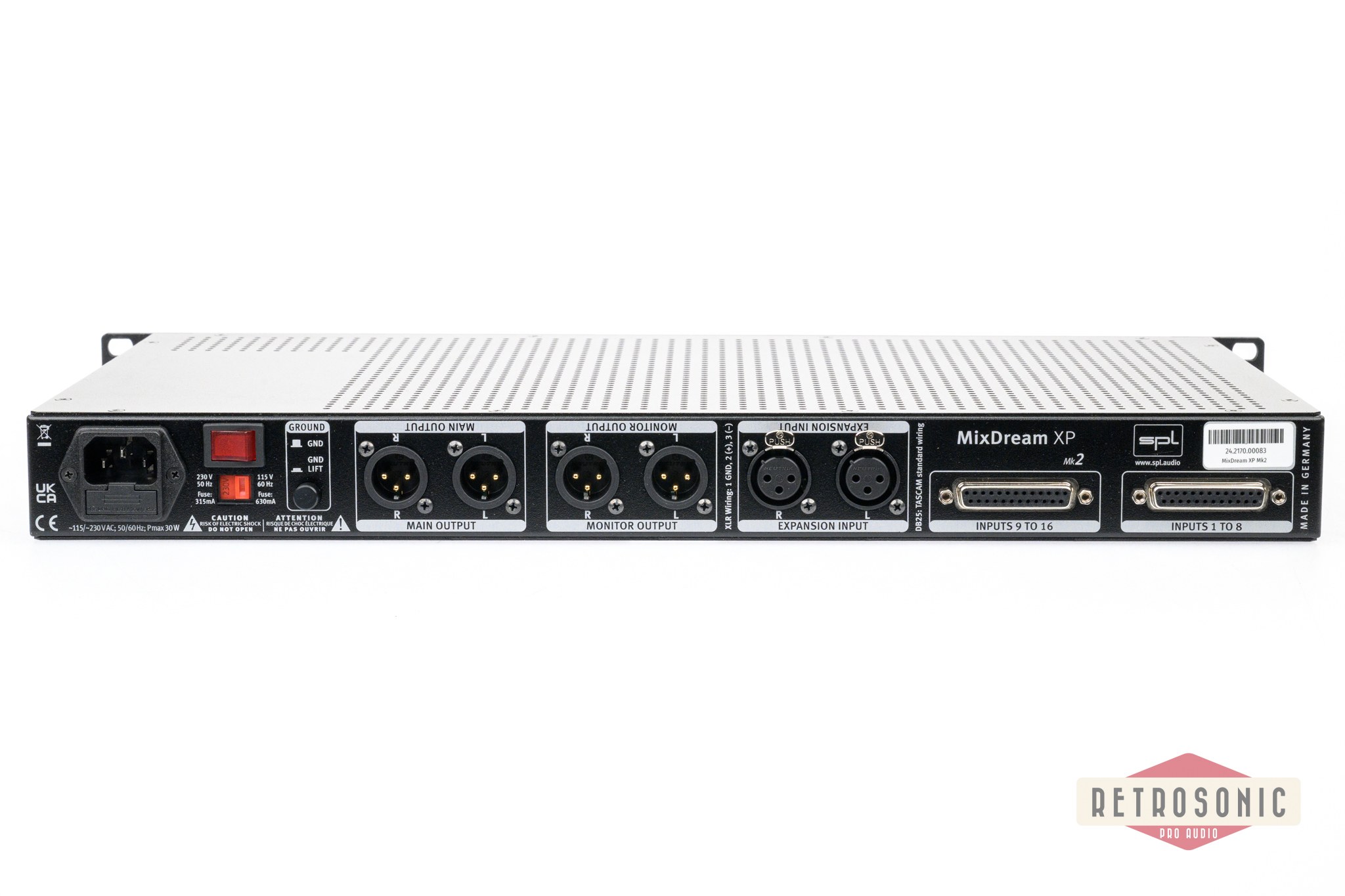

SPL MixDream XP Mk2 #1

The SPL MixDream XP Mk2 is a clean, purist 16-in-2 analog summing mixer built around SPL’s Class A circuitry and generous +/-30 V internal audio rails. It is designed for engineers who want the depth, width and harmonic cohesion of analog summing, without giving up the speed and precision of a modern DAW workflow.

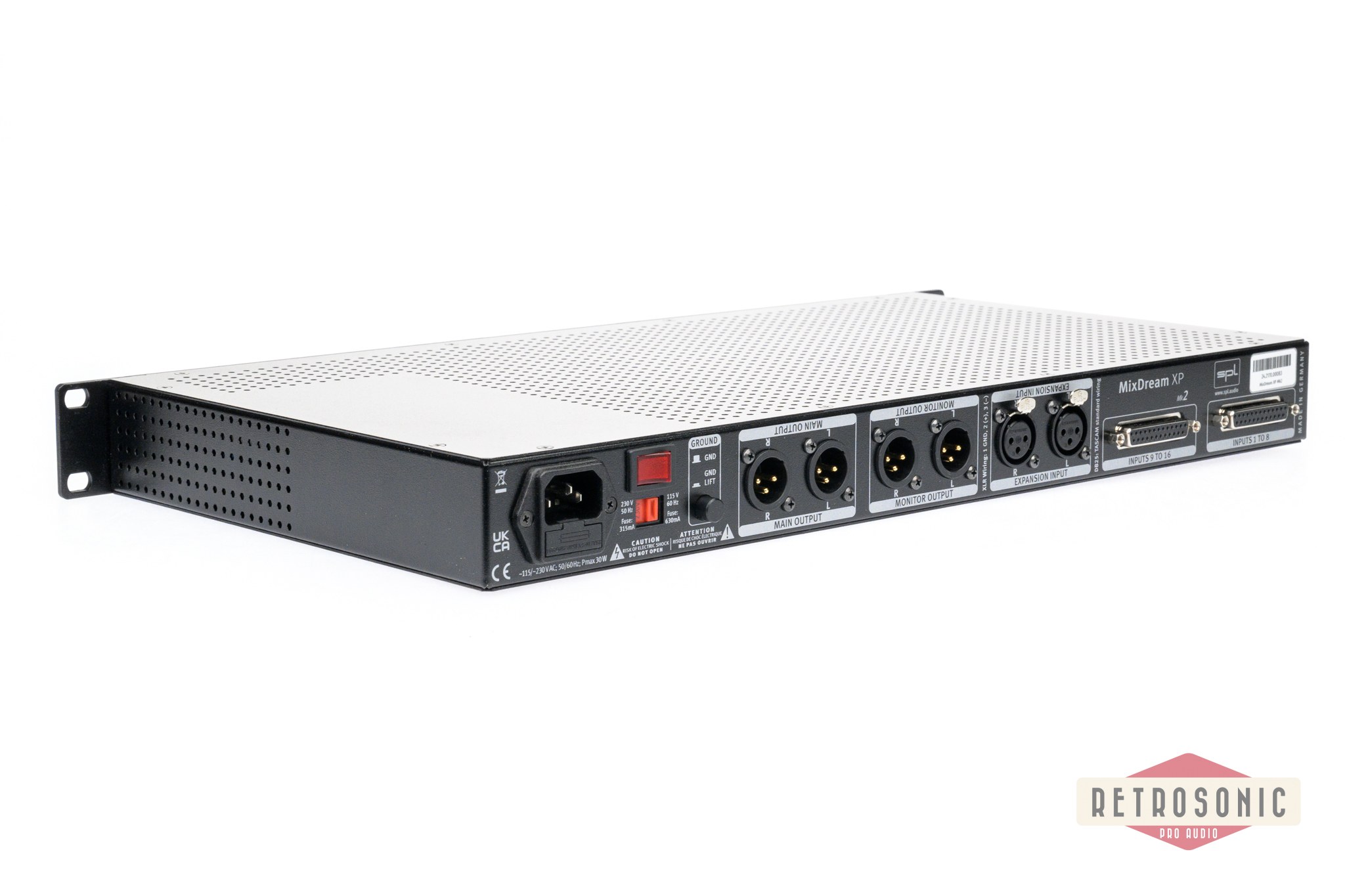

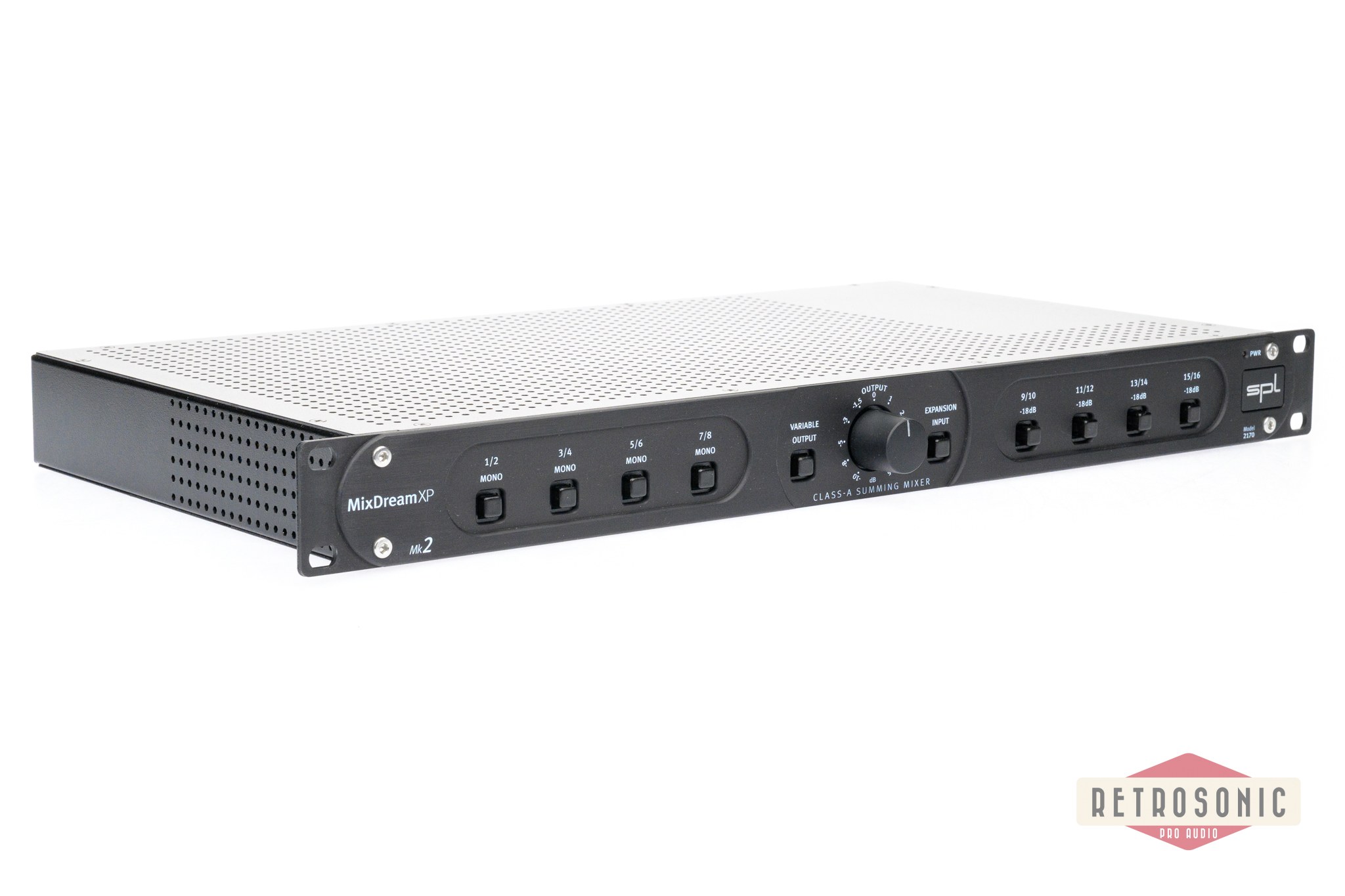

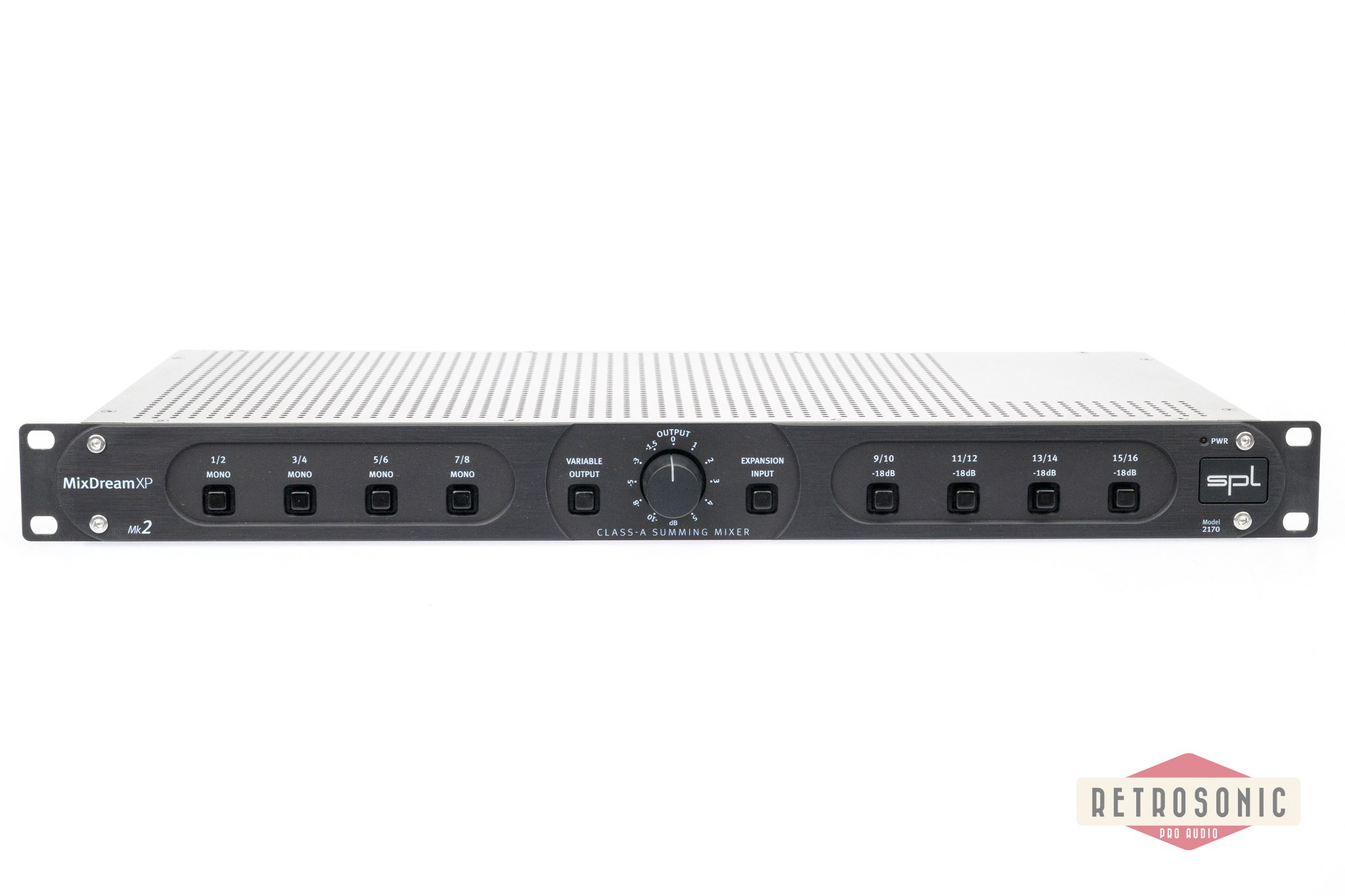

There are no faders, pan pots or unnecessary extras here. Just high-quality analog summing, balanced DB25 inputs, stereo main and monitor outputs, and a simple front-panel layout that keeps the focus on the mix. The first four stereo pairs can be switched to mono for centrally placed sources like kick, snare, bass or lead vocal, while the last four stereo pairs include switchable -18 dB attenuation, useful for lower-level DAW returns such as effects, reverbs and ambience.

With 28 dBu maximum level, 125 dB dynamic range and a frequency response extending from 10 Hz to 200 kHz, the MixDream XP Mk2 is a serious mix tool in a compact 1U format. Made in Germany, built with a solid aluminum front panel and a steel chassis, it feels every bit as professional as it sounds.

Main Features

* 16-in-2 analog summing mixer
* Class A analog circuitry
* +/-30 V internal audio operating voltage

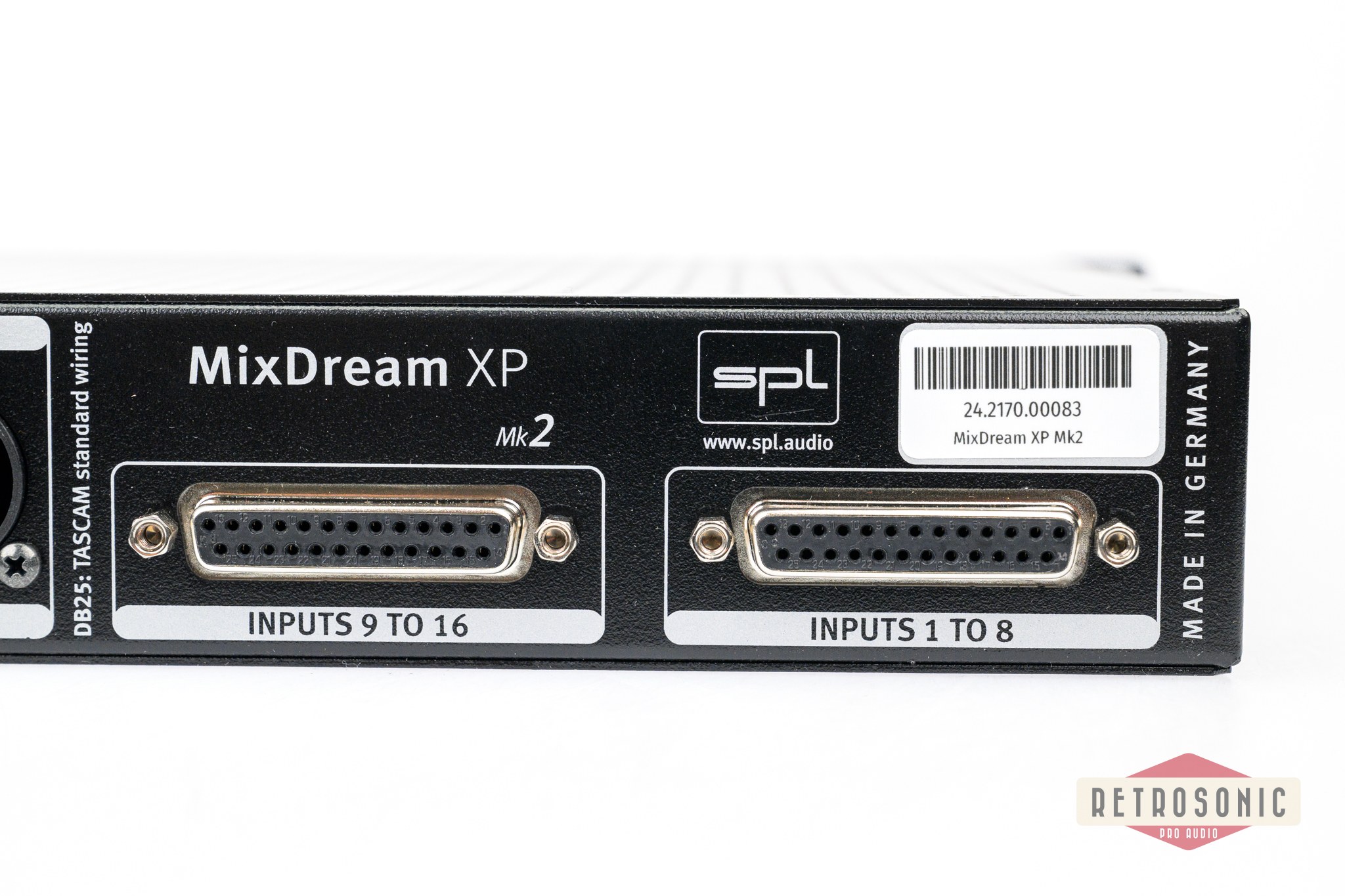

* 16 balanced DB25 inputs, Tascam standard
* Balanced stereo main output
* Parallel balanced stereo monitor output
* Mono switches for the first four stereo channel pairs

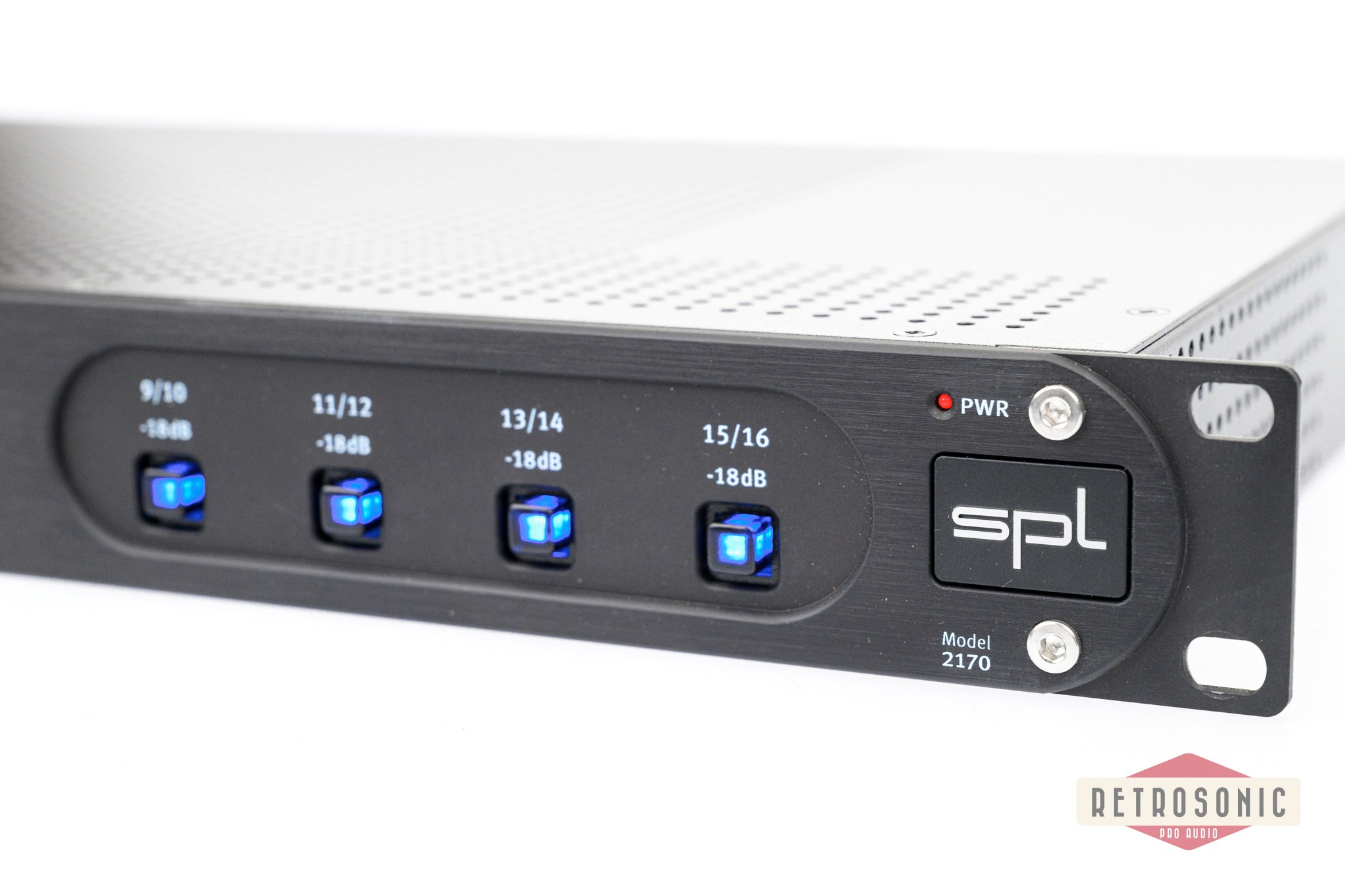

* Switchable -18 dB attenuation on the last four stereo channel pairs

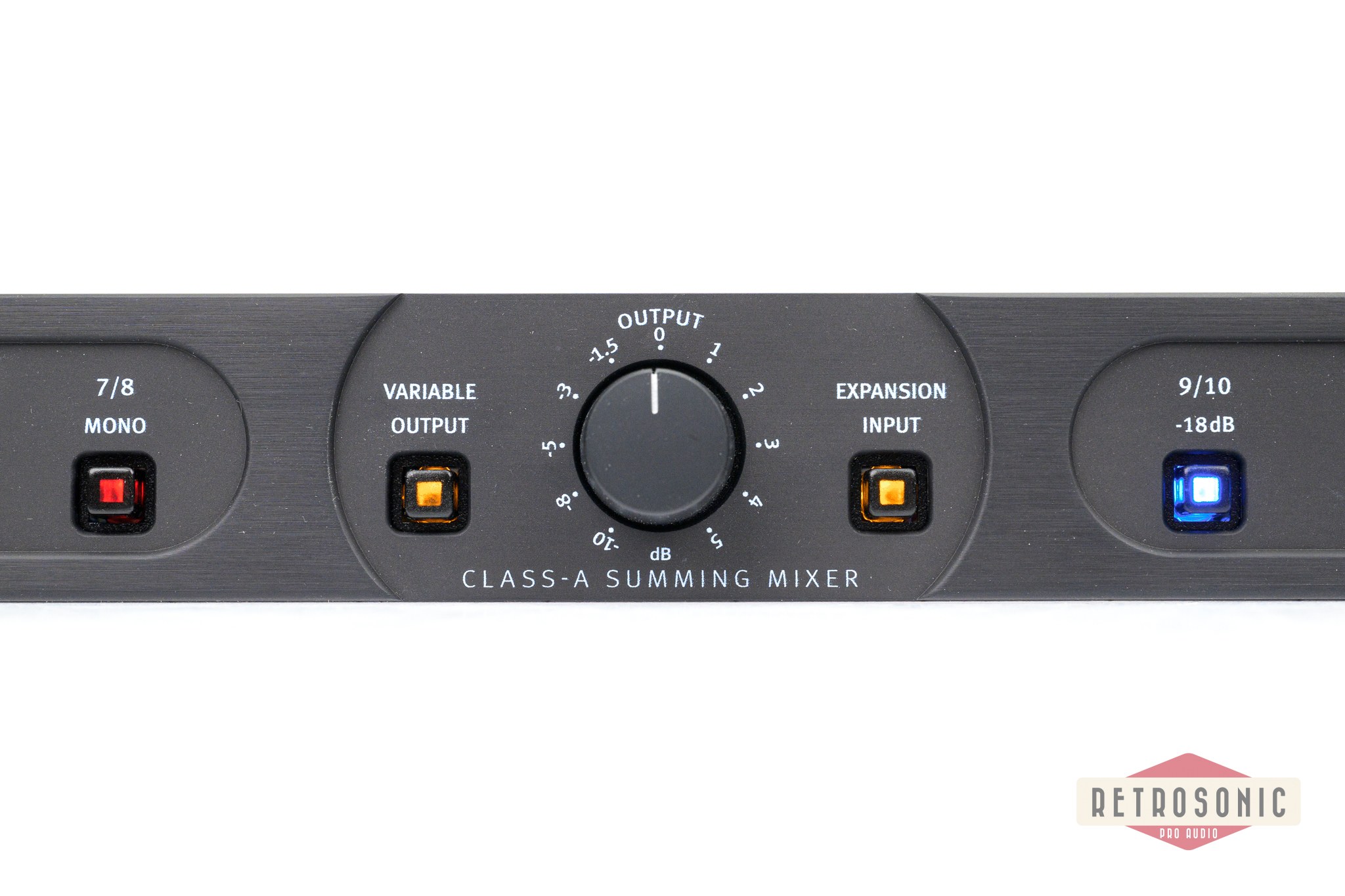

* Variable output level control, switchable to unity gain
* Expansion input for linking another MixDream XP Mk2 or adding an extra stereo source
* 28 dBu maximum input and output level
* 125 dB dynamic range
* 10 Hz to 200 kHz frequency range
* 1U rackmount format
* Made in Germany

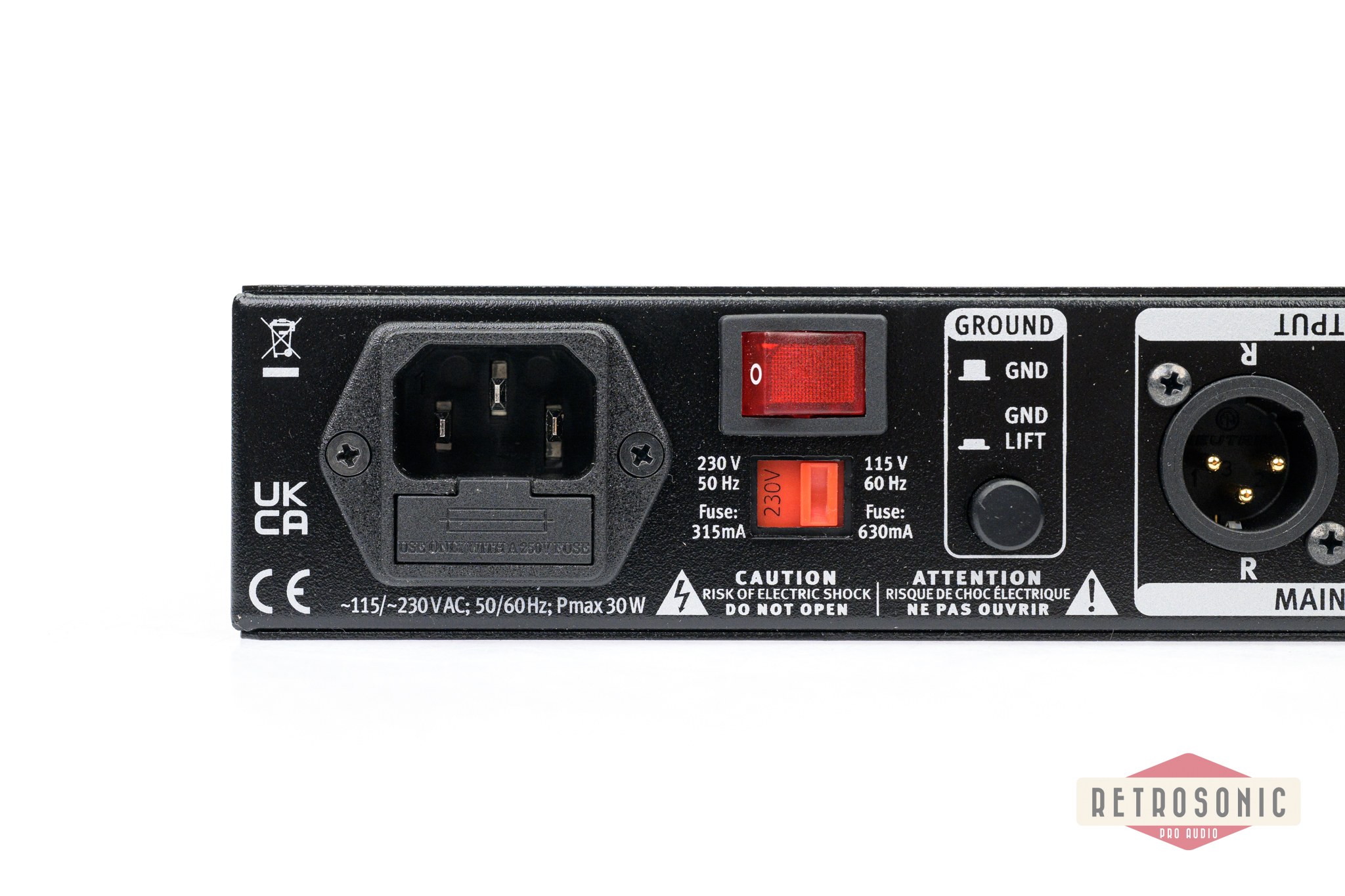

PSU is switchable between 115V and 230V, currently set to work on 230V. EU power cord included.
