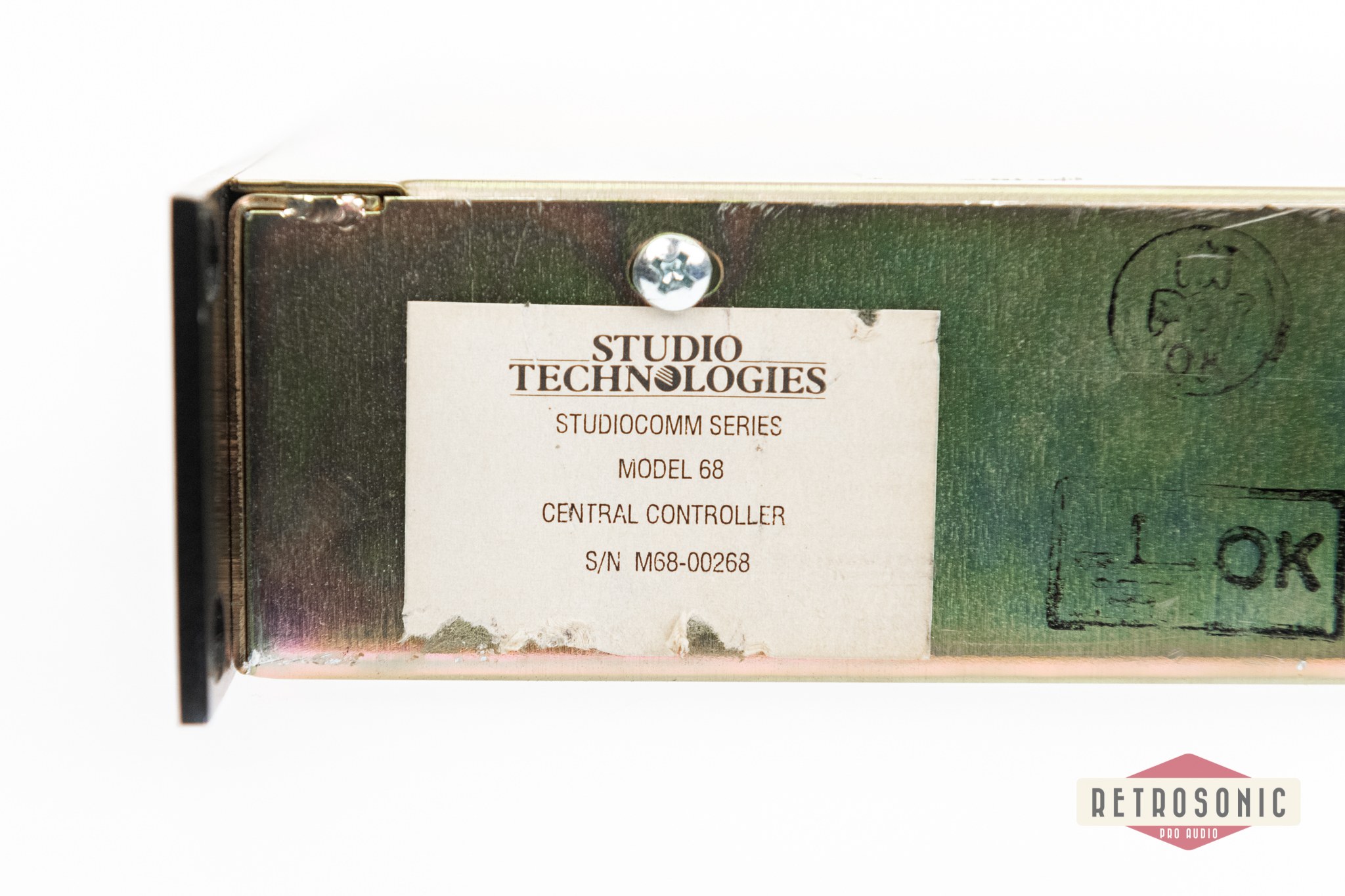

The StudioComm Model 68 Central Controller and Model 69 Control Console provide the means to select input sources, control the level of monitor loudspeakers, and provide mute and solo functions, along with many other features.

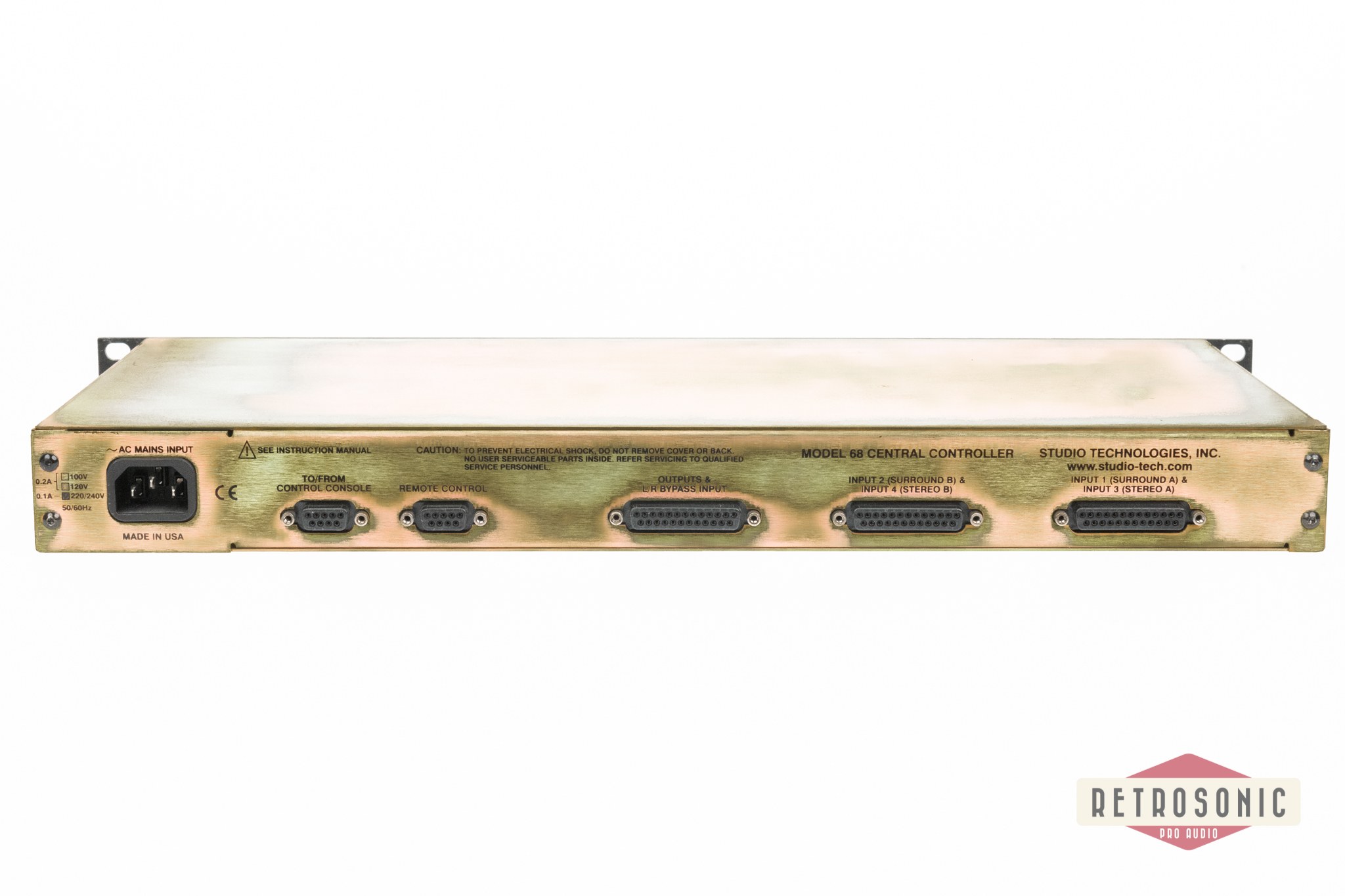

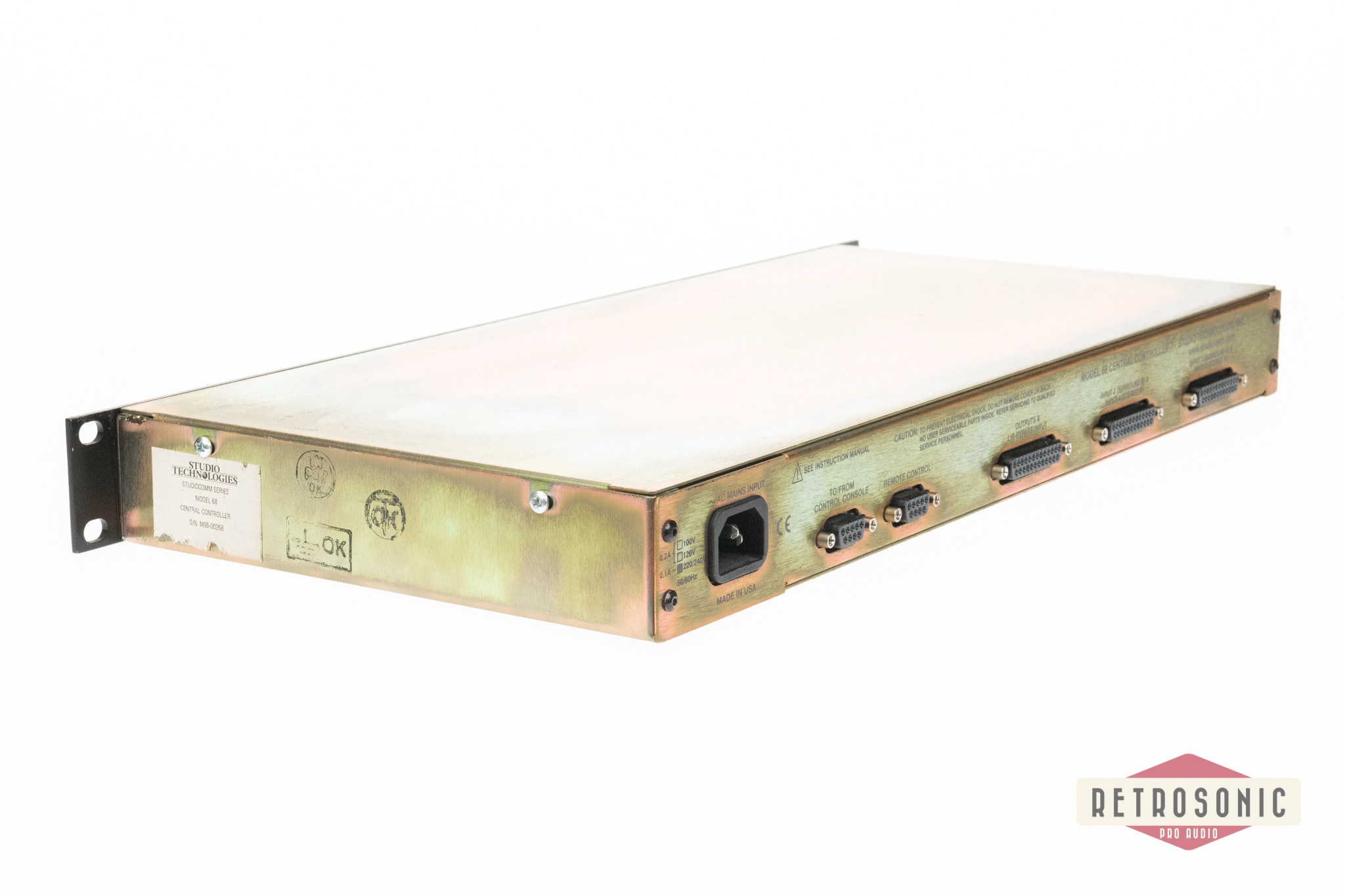

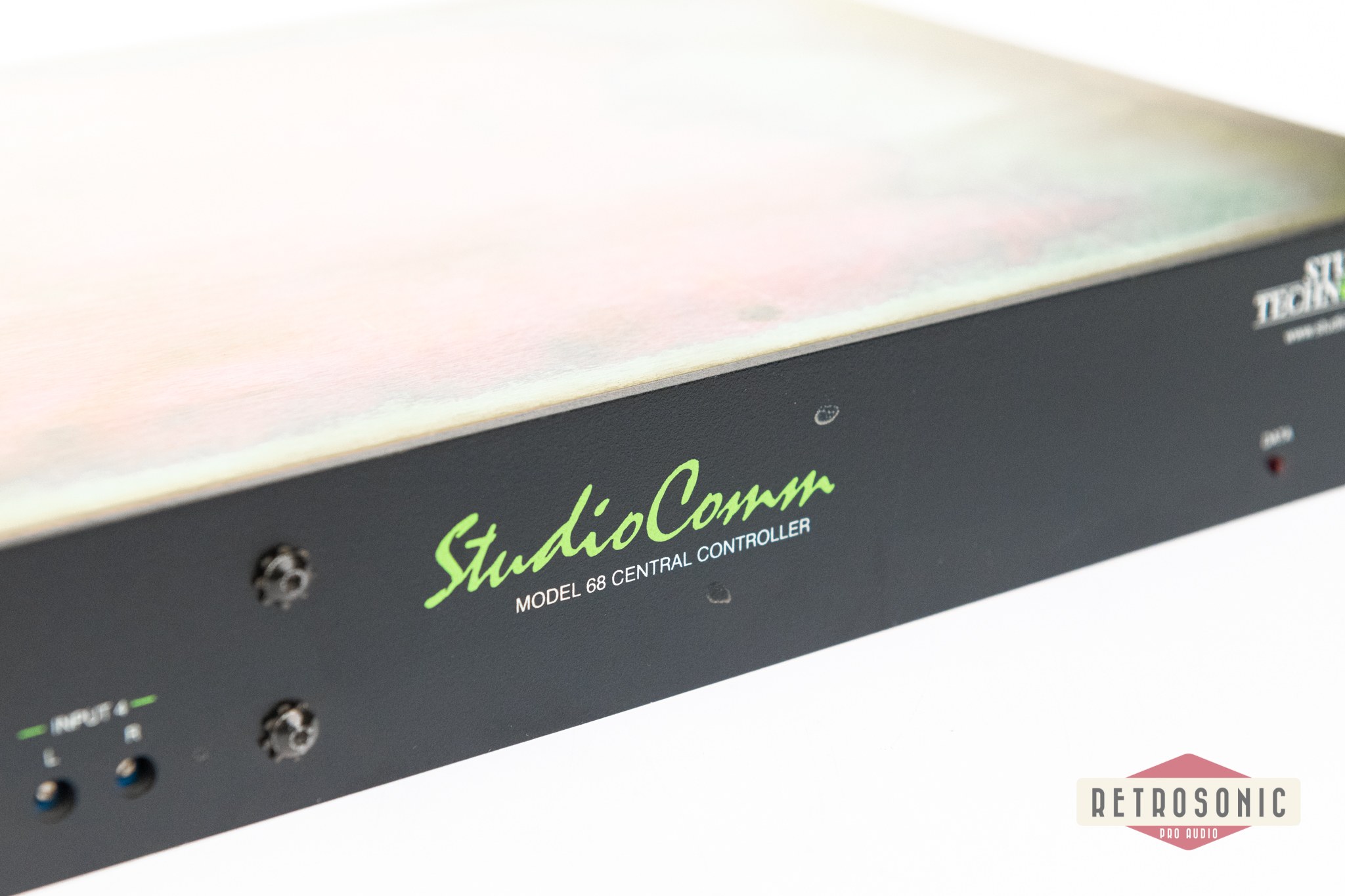

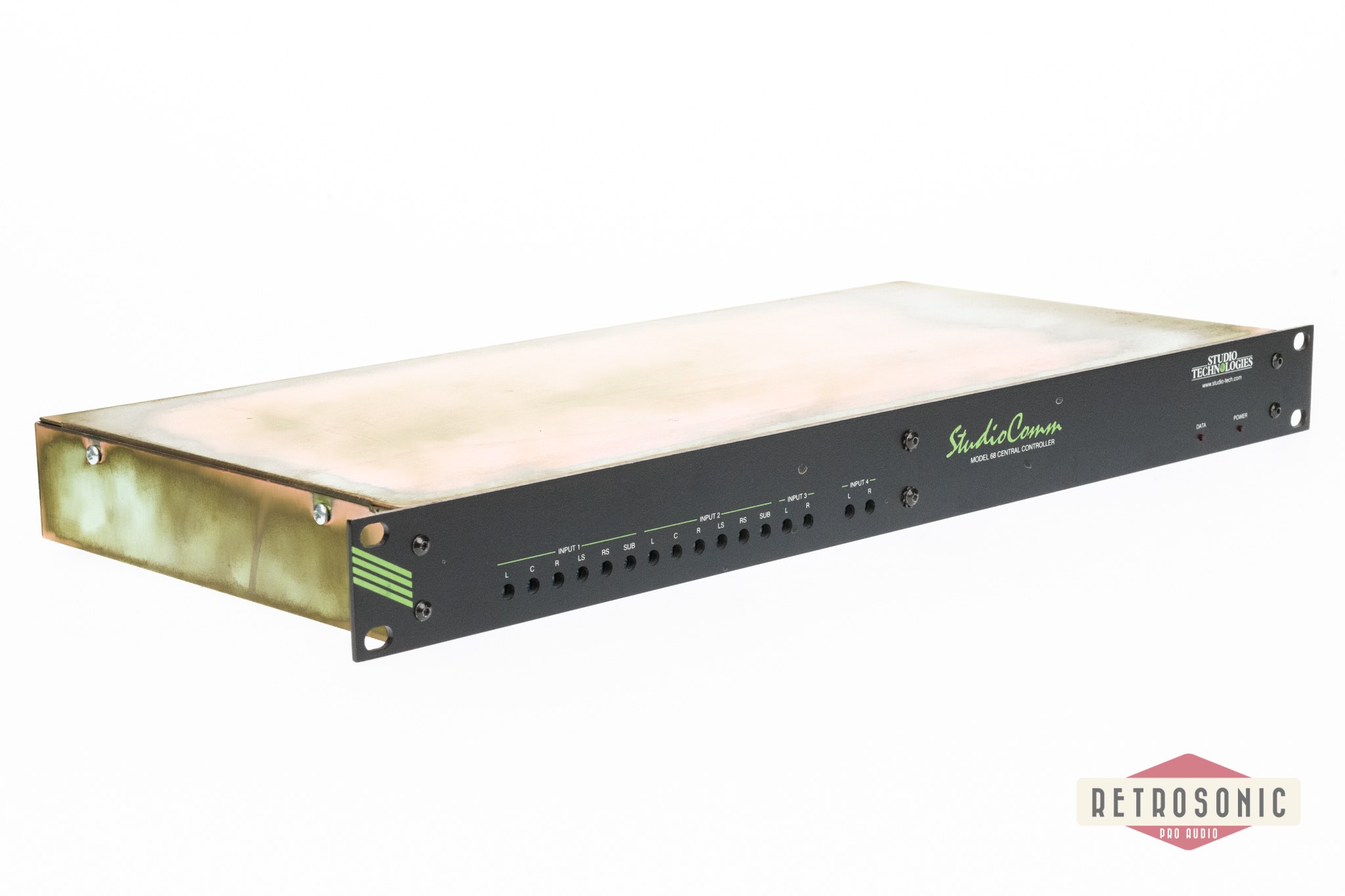

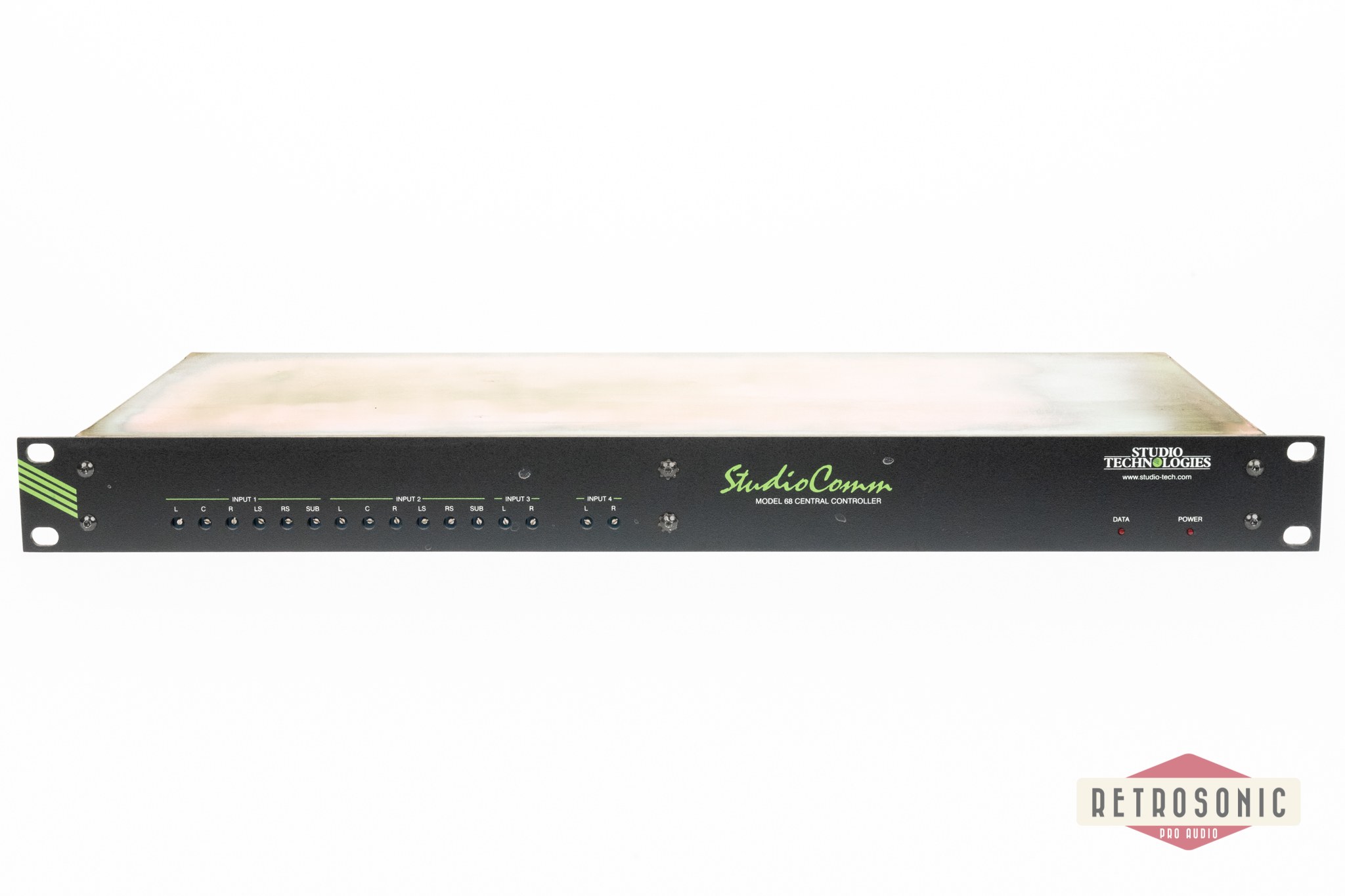

The Model 68 supports two 6-channel inputs, two stereo inputs, and six monitor output channels in a single rack space.
The surround and stereo inputs, as well
as the monitor outputs, are electronically balanced. Fifteen-turn trim potentiometers are used to precisely calibrate the input and monitor output signals. Using electro- mechanical relays, the 6-channel monitor output provides power-up and power-down protection for the loudspeakers.
The L/R Bypass function allows a stereo line-level audio source to be passively routed to the Model 68’s left and right monitor output channels, while muting the center, left surround, right surround, and subwoofer monitor outputs.
An 8-bit microcontroller provides the logic “horsepower” for the Model 68.

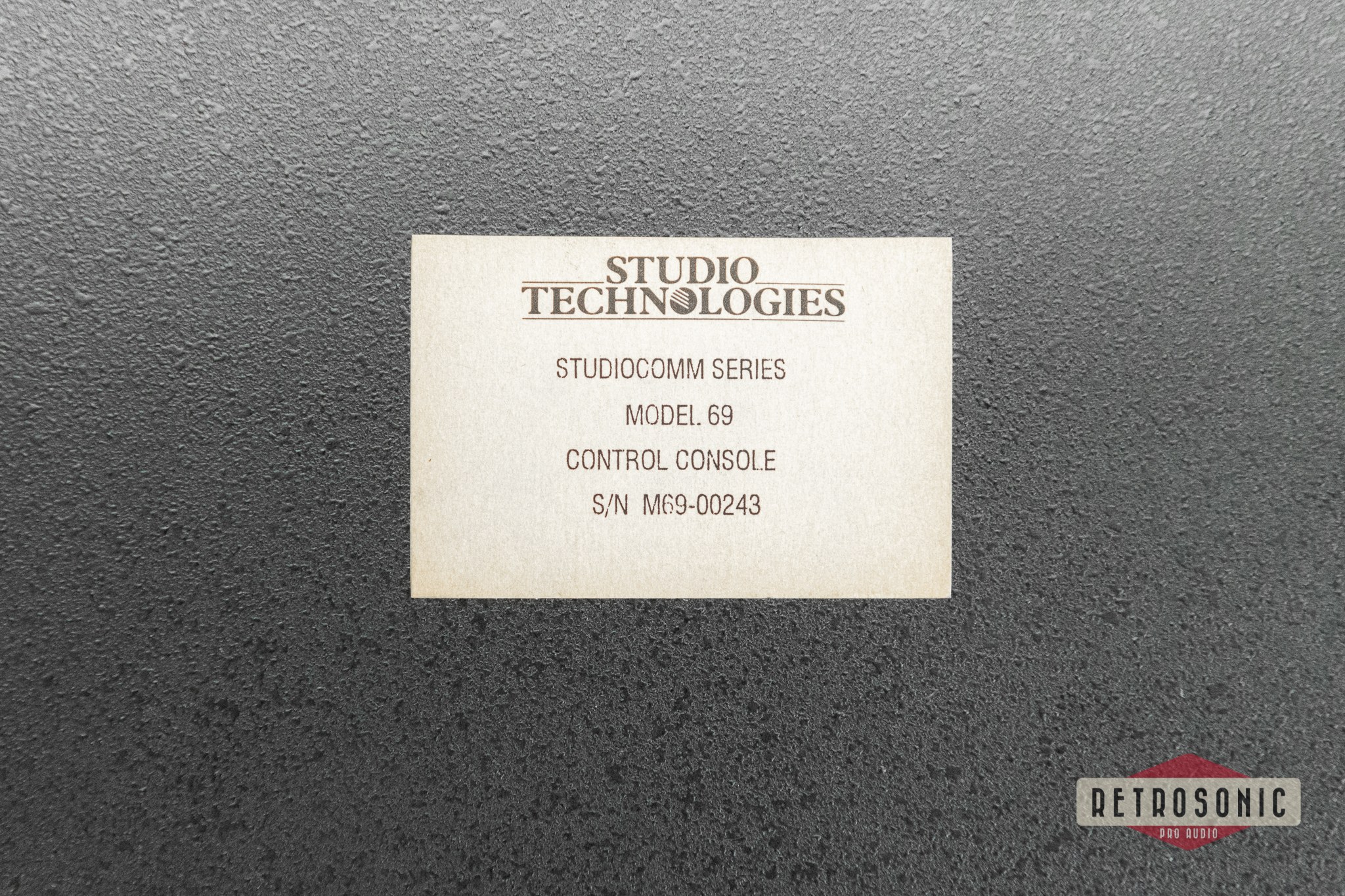

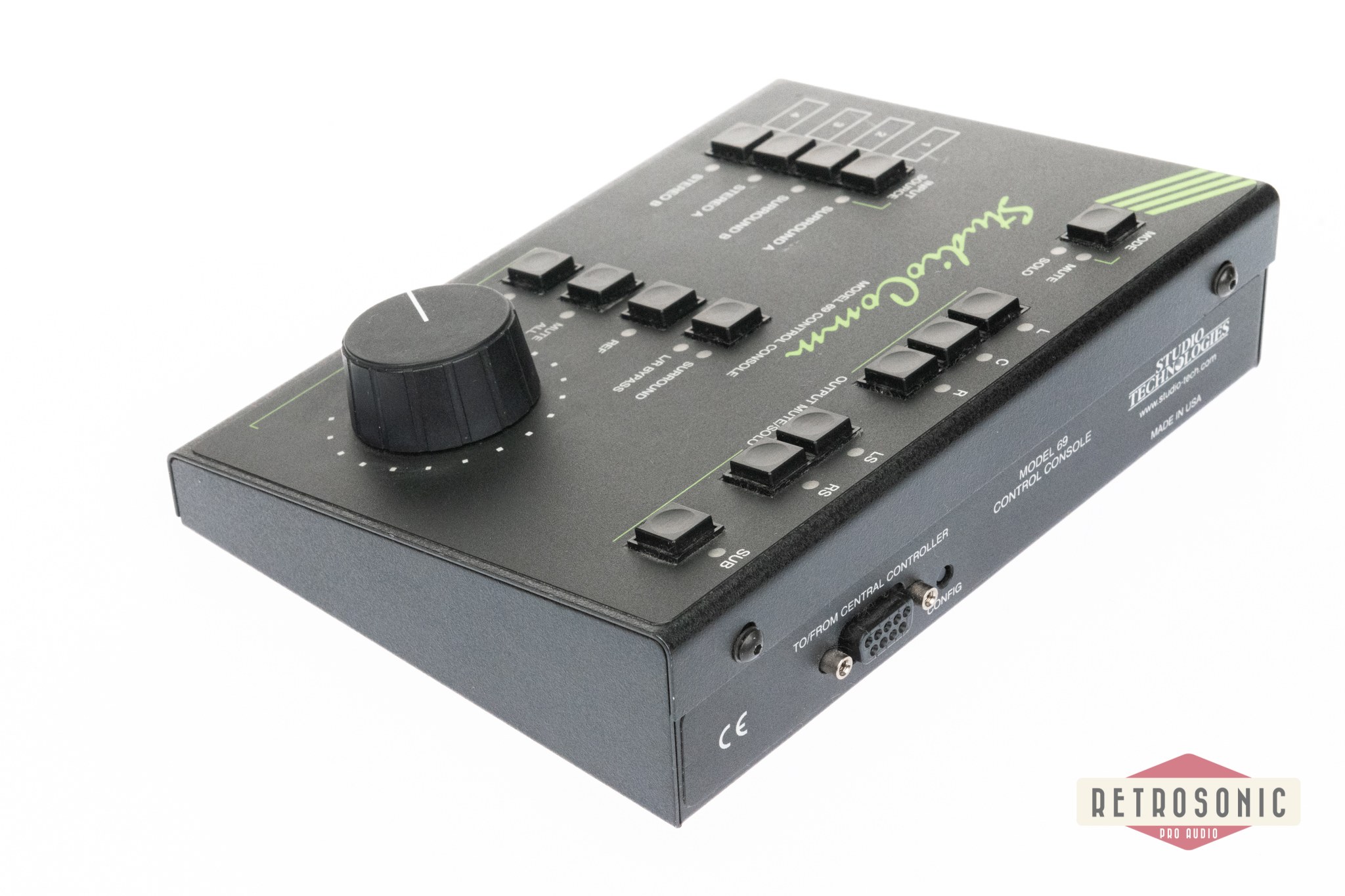

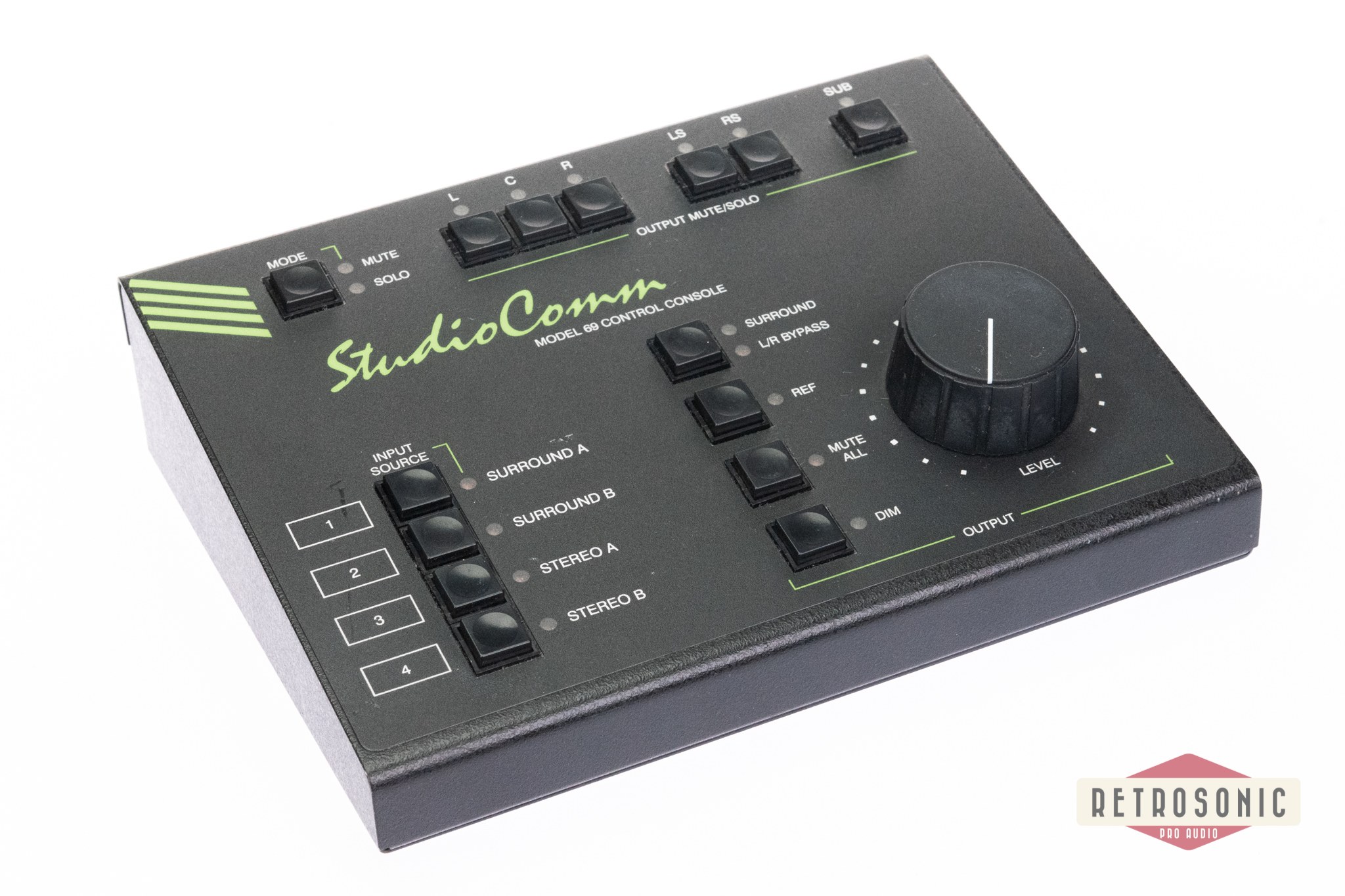

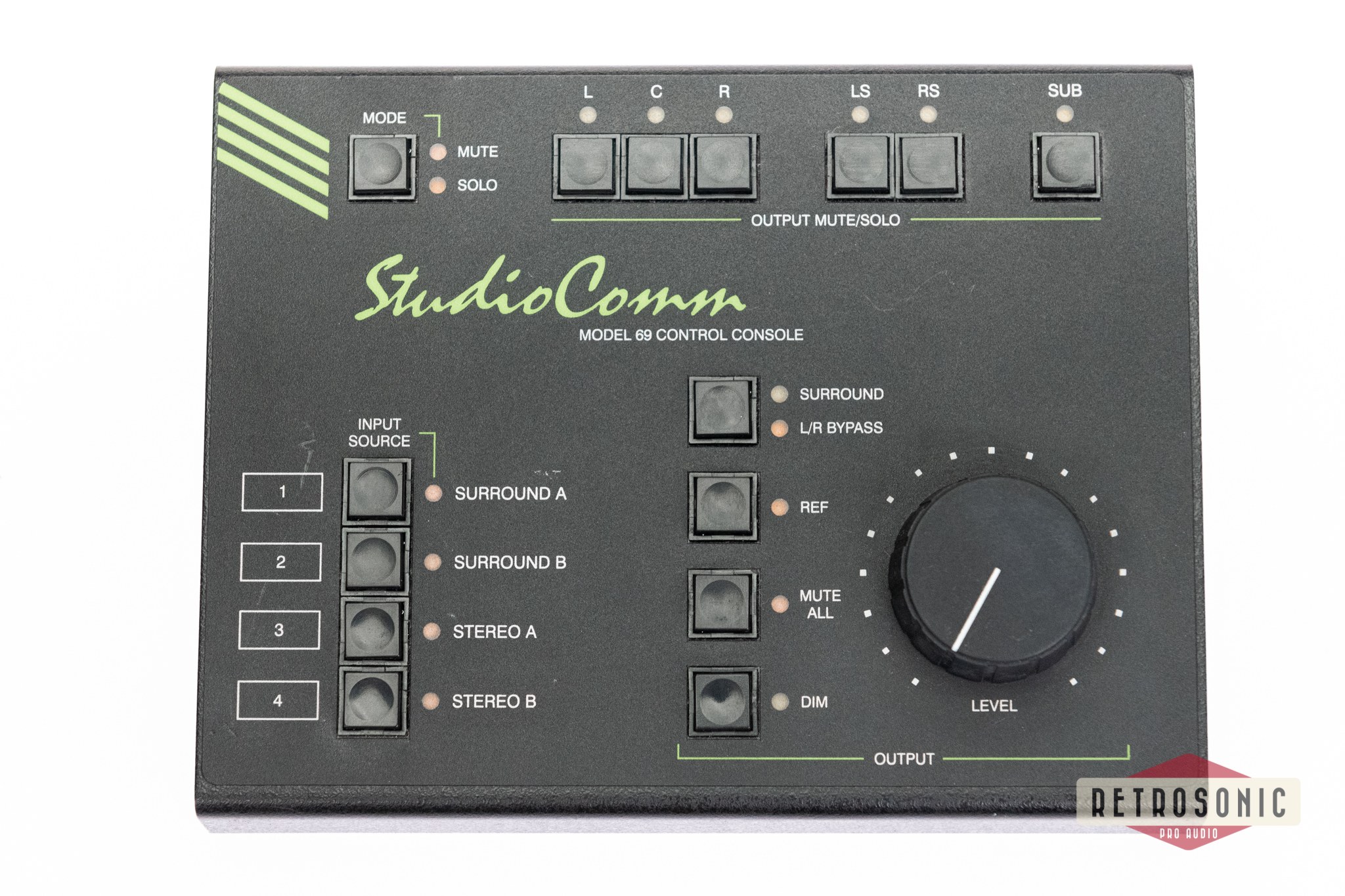

The Model 69 Control Console is a com- pact, self-contained unit designed to be located at the operator’s position. It allows fingertip control of all monitoring para- meters. Numerous LEDs provide complete status information.

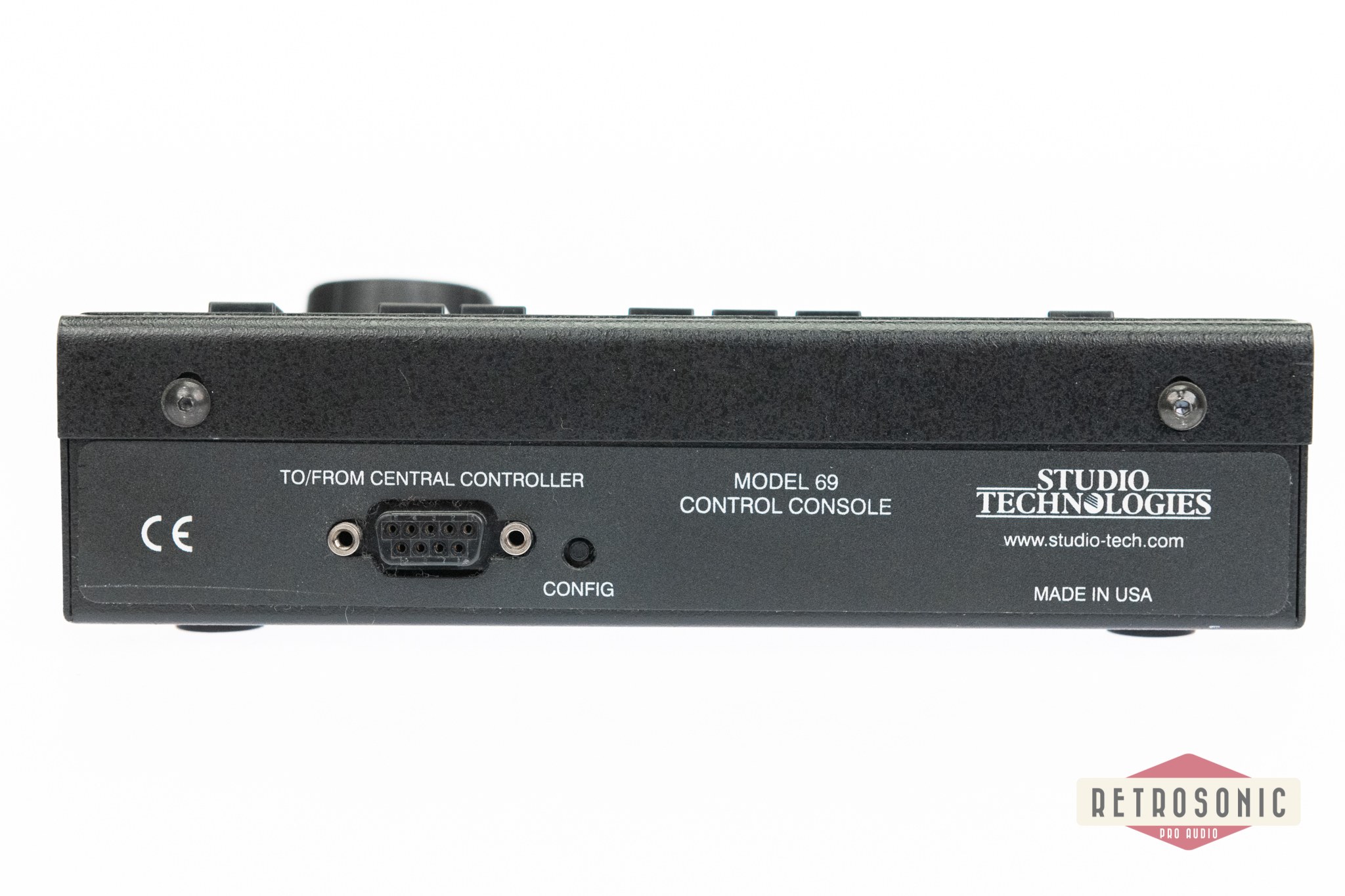

The Model 69 supports two 6-channel (surround) and two 2-channel (stereo) input sources, along with one 6-channel monitor output.A Model 69 Control Console connects to the Model 68 Central Controller using a standard 9-pin D-sub cable. Power for the Model 69 is provided by the Model 68.
Excellent working condition, good visual condition. PSU works on 220V. EU power cord included.
US and EU parcels ship via UPS, ETA 1-7 working days from pickup day zero. That also applies to most
All shipments are fully insured.
Bigger shipments requiring pallets or custom made crates ship to US, CA, JP, CN, AU and other outside of EU locations via DHL Air Freight, ETA is normally approx. 7-14 working days from pickup day zero.
Big shipments inside EU ship via different freight companies, recently mostly via ACE Logistics. Freight forwarders can use different courier companies for deliveries to final destinations.
Palletising and crating time can vary depending on the size of the shipment and packaging queue. We pack all our shipments with great care.
You are most welcome to pick your order up yourself from our Retrosonic Pro Audio showroom, studio and warehouse in Tallinn, Estonia.
We ship worldwide – contact us for a personal shipping quote or any other questions.
VAT (Value Added Tax) can be deducted if you have a company with a valid EU VAT number or if you're based outside of the EU. Non-EU buyers pay all and any import tax and duty as regulated by their local customs.
