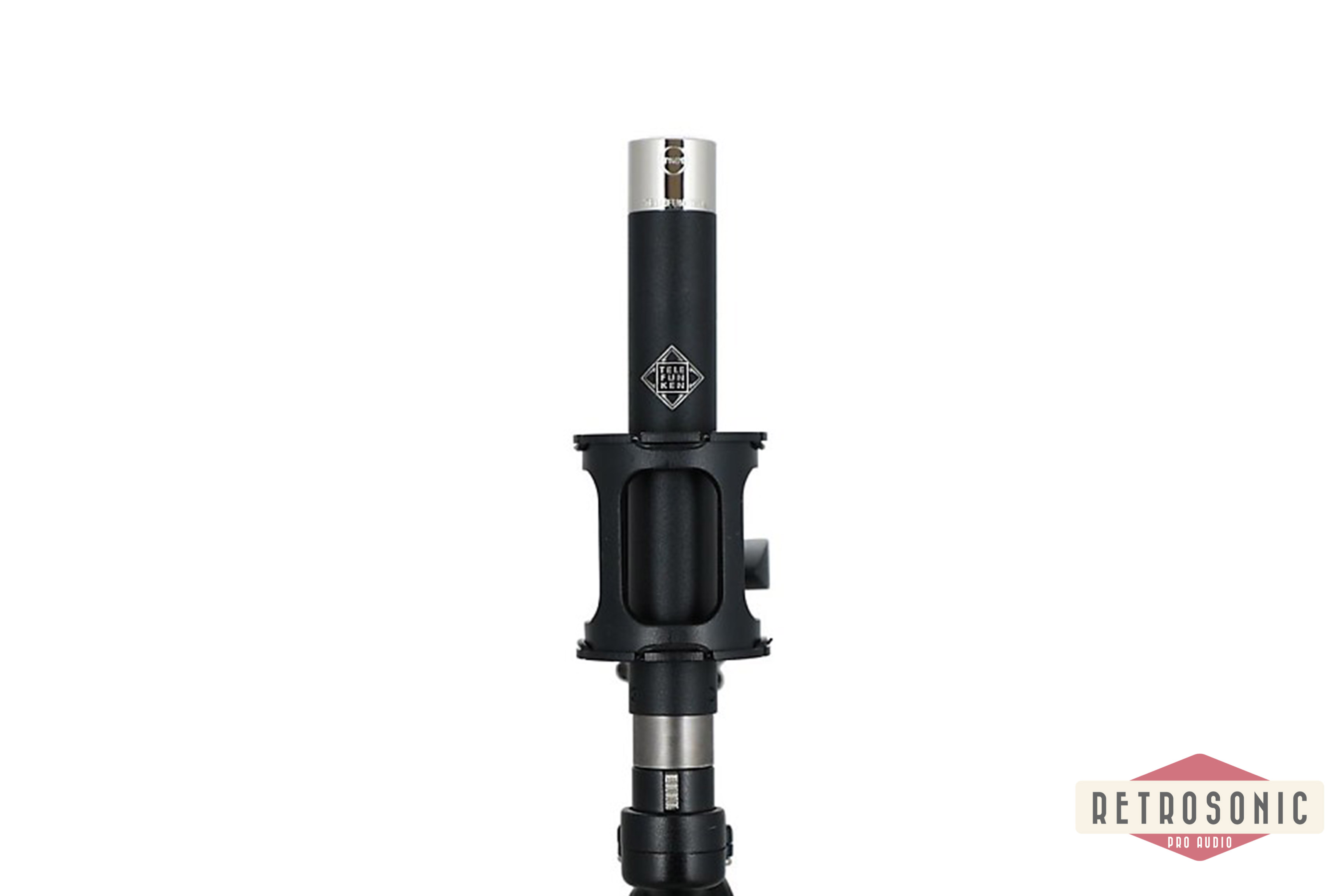

Telefunken M61 SDC Omni FET microphone
Telefunken M61 SDC Omni FET microphone

Telefunken M61 SDC Omni FET microphone

A small diaphragm omni FET mic
SKU: M61
€ 729.51 ex VAT
€ 890.00 incl. VAT
Brand new Contact to order
Contact to order
Please fill in all the required fields
SEND
Paypal Wise
Invoice
Description
Features
Shipping & VAT

The M61 FET Omnidirectional package includes one M60 amplifier paired with a TK61 omnidirectional polar pattern capsule. The TK61 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, and offers a large, open sound perfect for capturing the ambience and vibe of your instrument or recording environment to breathe life into any recording. The frequency response is flat from 20 Hz to 5 kHz, with a smooth, airy presence peak at 8 kHz.

The M60 FET’s incredibly quick transient response captures nuances and subtleties with impressive precision and clarity. This results in an extremely detailed sonic image with definition and presence, perfectly suited for the complex character of stringed instruments and percussive sources.

Utilizing a unique proprietary circuit topology, this re-interpretation of the classic FET mic amplifier produces an exceptional transient response and SPL handling capabilities. Carefully selected and tested components are hand-plugged into gold-plated circuit board traces to provide an ultra-clean true Class A discrete amplifier with a frequency response of +/- 2dB from 20 Hz to 50 kHz. The output is matched with a custom American-made transformer that offers an especially low self-noise and a typical THD+N of 0.015% or better, making it ideal for critical recording applications.

The M60 FET amplifier body is finished in a durable, lightly textured black powder coat adorned with the historic TELEFUNKEN diamond badge. The microphone’s XLR connector shell complements the look with a matte black nickel plated finish engraved with the model and serial number. The TK6x capsules feature a bright nickel plated enclosure with a fine gold mesh pattern.

The M61 FET Omnidirectional system ships complete with a SGMC-5R 5-meter XLR cable with right angle female connector, M761 elastic shock mount, and a foam windscreen, all packed in an ZC61 zipper carrying case.

Type: Pressure Gradient Condenser
Capsule: TK60 - 15 mm Edge Terminated Diaphragm
Tube Type: Active FET Transistor (No Vacuum Tube)
Transformer: Custom Wound TELEFUNKEN T61CT
Polar Pattern: Omnidirectional
Frequency Range: 20 Hz - 31.5 kHz, ± 2 dB (Amplifier)
Sensitivity: 8.6 mV/PA, ± 1dB
THD at 1kHZ at 1Pa (Amplifier): < 0.01%
Output Impedance: 120 Ω
Maximum SPL (for 1% THD): > 130 dB
S/N Ratio: > 89 dBA
Self Noise (Amplifier): ≤ 5 dBA
Dimensions: 140 mm L x 21 mm Dia
Weight: 110 g
Current Draw: 2 mA
Power Requirement: +48 VDC Phantom Power
Cable: SGMC-5R - 5 Meter (16.9 ft) Cable, Right Angle Female 3 Pin XLR, 3 Pin Male XLR
Shockmount: M 961 - Suspended Elastic Mount
Flight Case: ZC61 - Soft Foam Zip Case, ZC62 for Stereo Set

US and EU parcels ship via UPS, ETA 1-7 working days from pickup day zero. That also applies to most locations worldwide.

All shipments are fully insured.

Bigger shipments requiring pallets or custom made crates ship to US, CA, JP, CN, AU and other outside of EU locations via DHL Air Freight, ETA is normally approx. 7-14 working days from pickup day zero.

Big shipments inside EU ship via different freight companies, recently mostly via ACE Logistics. Freight forwarders can use different courier companies for deliveries to final destinations.

Palletising and crating time can vary depending on the size of the shipment and packaging queue. We pack all our shipments with great care.

You are most welcome to pick your order up yourself from our Retrosonic Pro Audio showroom, studio and warehouse in Tallinn, Estonia.

We ship worldwide – contact us for a personal shipping quote or any other questions.

VAT (Value Added Tax) can be deducted if you have a company with a valid EU VAT number or if you're based outside of the EU. Non-EU buyers pay all and any import tax and duty as regulated by their local customs.
