Tonelux OTB16 16-channel Summing Mixer

16-channel summing mixer
SKU: K_2480
Very good
In stock
Contact for price
Please fill in all the fields
SEND
description
features
Shipping & VAT

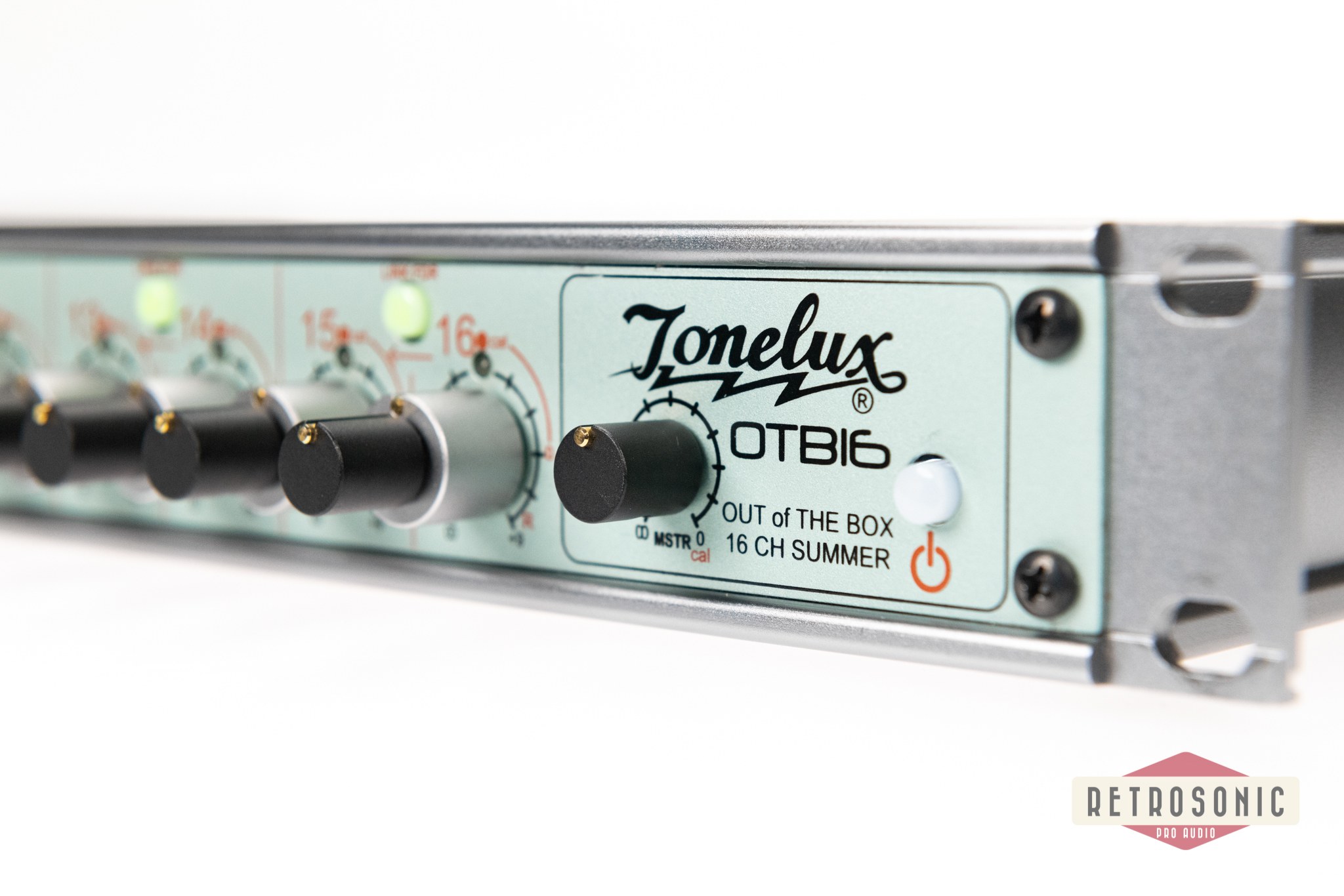

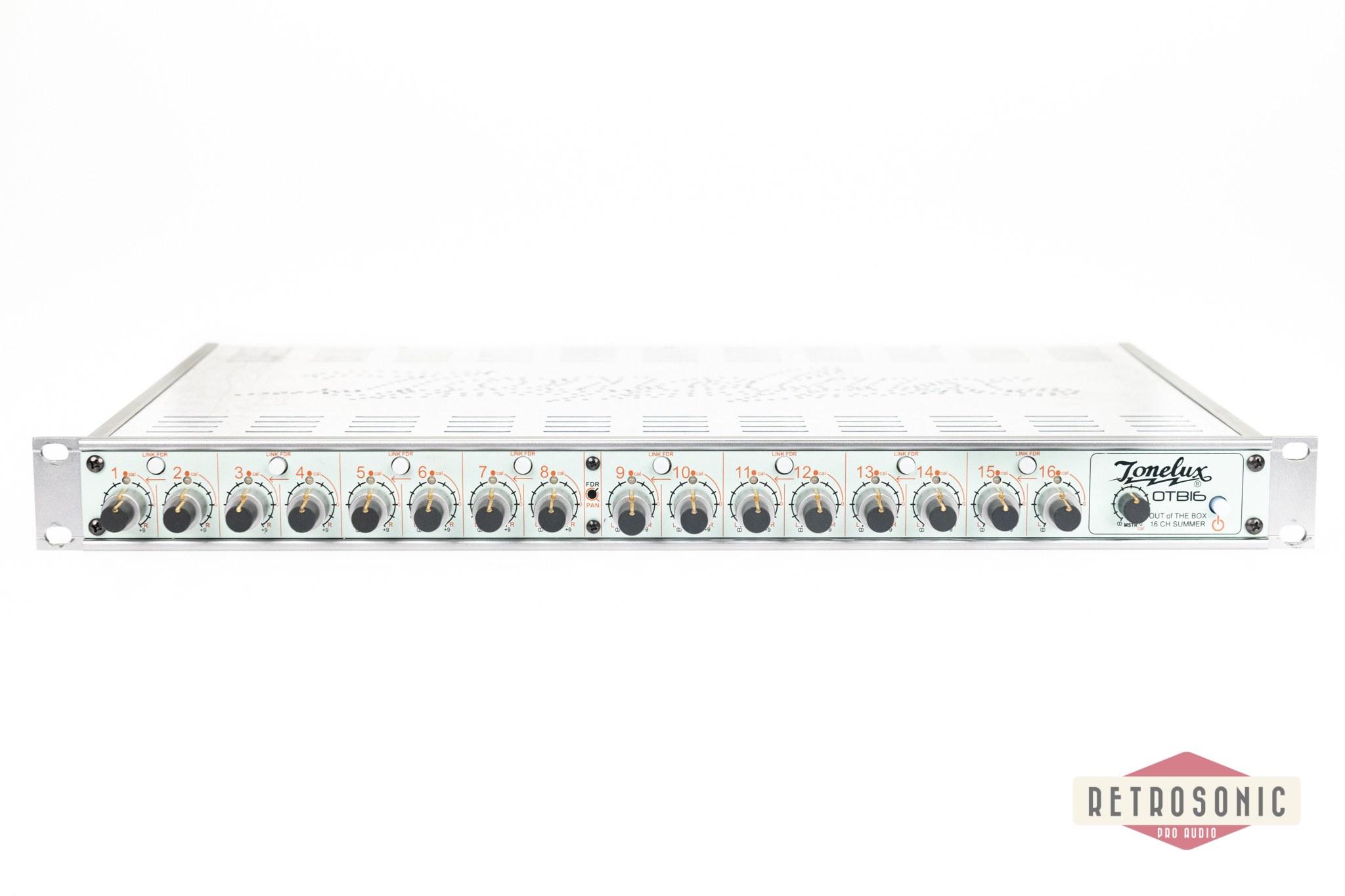

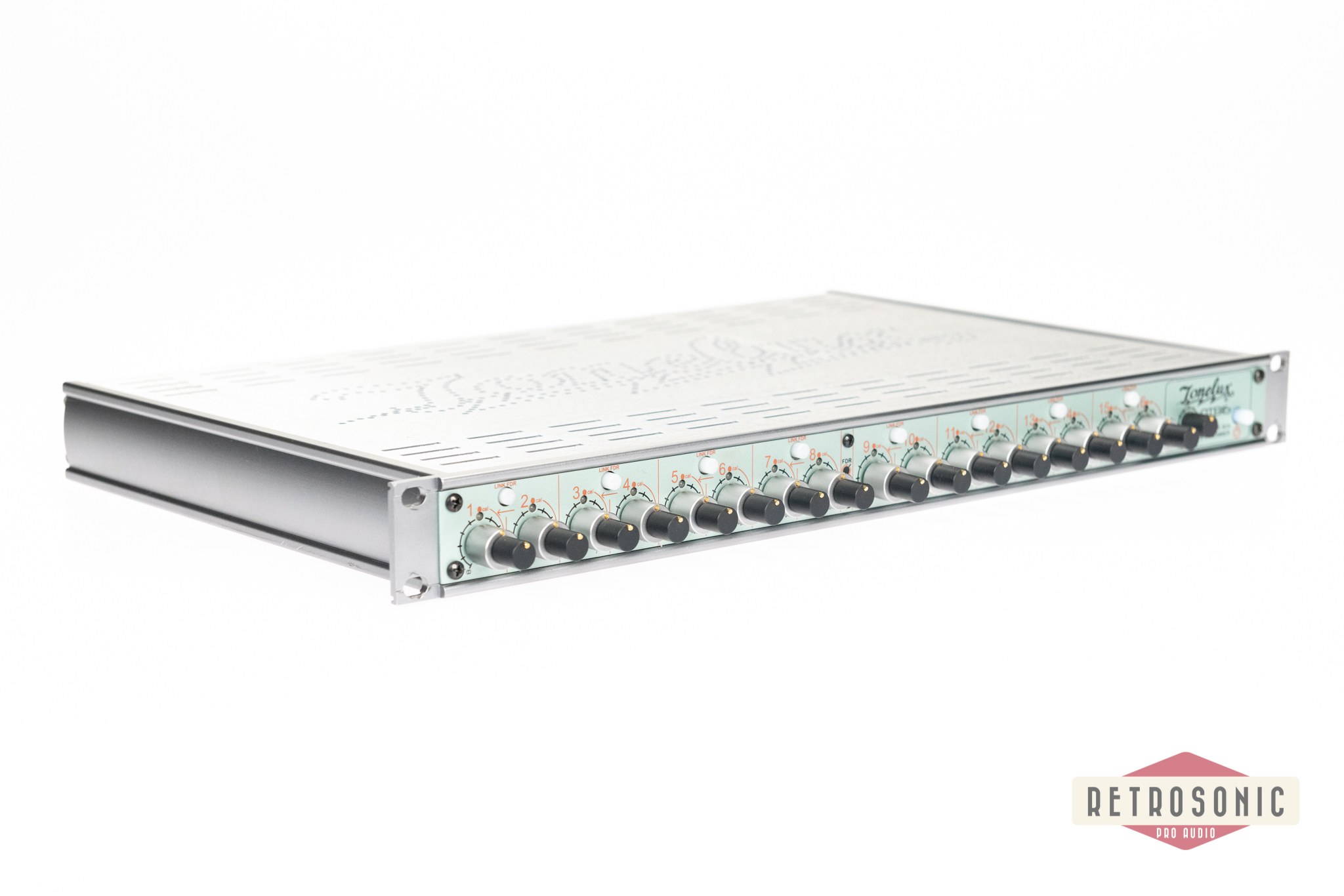

format_quote Tonelux OTB16 is a 16 channel mixer in a 1U rack enclosure.
It has 16 balanced inputs and a Tonelux discrete summing bus.

Each channel has a level control and a pan knob. The inputs of the OTB16 are 2 eight channel D-sub inputs at a level of +4dBu.

The summing of the 16 channels is done via the Tonelux TX-240 and TX-260 discrete op-amps, and then through the main output transformer, which can be adjusted by the MASTER fader, and comes out of a pair of XLR connectors.

The unit also has a a monitor output for monitoring or expansion, it is balanced but does not have transformers. The pre-fader monitor output can be plugged into the BUS input to extend the number of channels with a second or third OTB16.

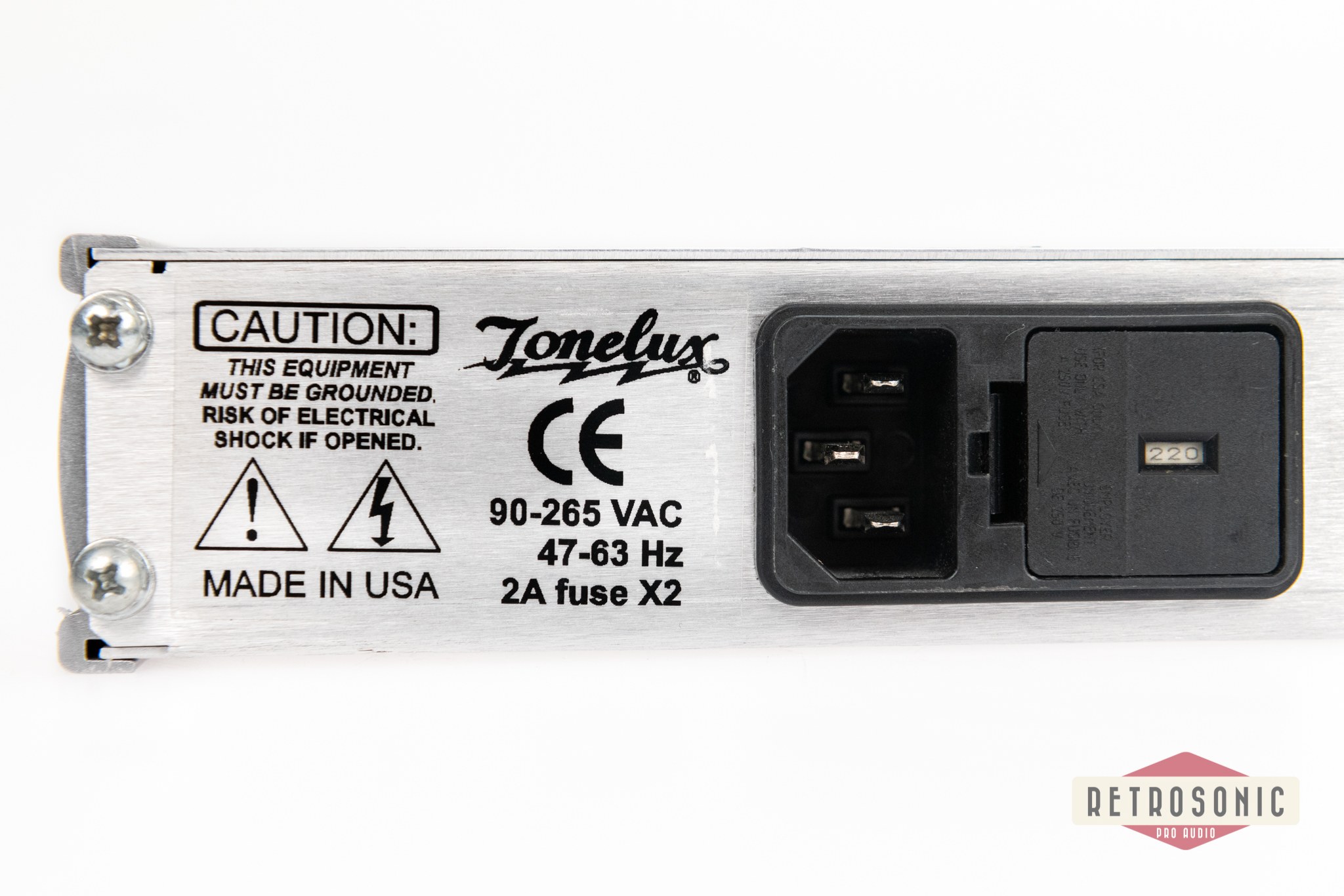

Excellent working condition, good visual condition, some minor scratches, nothing bad. PSU operates on 120-230V, depending on the fuse installed. Currently set to 230V operation. EU power cord included.
format_quote US parcels are shipped fully insured with DHLExpress and they usually arrive within 2-3 working days from pickup day zero.

EU parcels arrive within 4-6 working days and are shipped with DPD or ACE Logistics.

You are also most welcome to pick up your order from Retrosonic Pro Audio showroom, studio and warehouse in Tallinn, Estonia.

We ship worldwide! Contact us for a personal shipping quote or if you have any questions.

VAT (Value Added Tax) is deducted if you have a company with a valid EU VAT number or if you're based outside of EU. Non-EU buyer pays all and any import duty and tax as regulated by your local customs.
