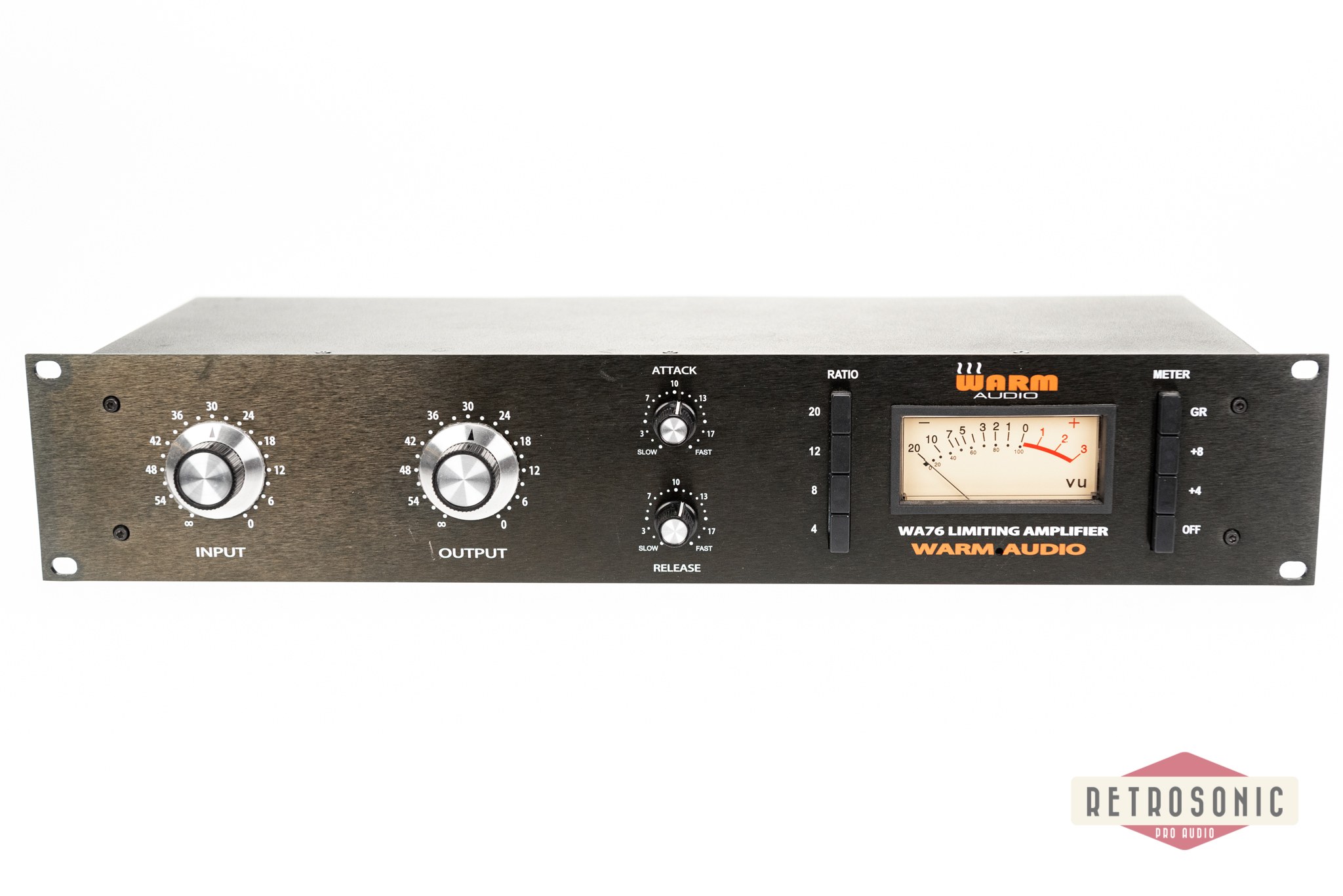

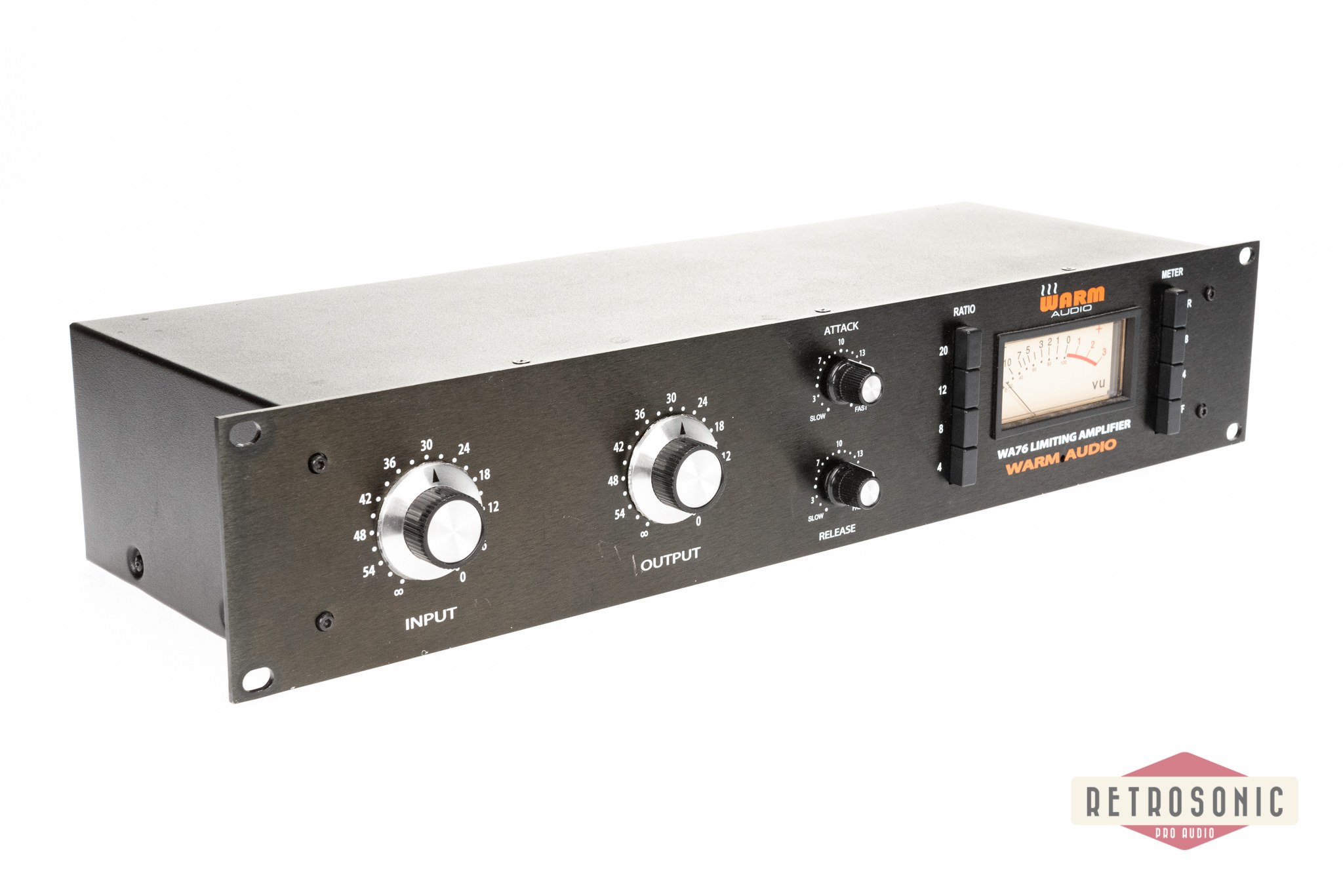

Warm Audio WA76 Compressor

The WA76 Discrete Compressor stands as a modern replication of the revered Classic '76 Revision D. Maintaining a fully discrete signal path, it incorporates the original Reichenbach Engineering's (now CineMag) transformer design.

Renowned for its breakthrough in limiter technology, the classic '76 has graced countless hit records since its inception. Engineers have long coveted its ultra-fast attack time and distinctive sound, and now it's finally within reach!

The meticulous reproduction faithfully captures the circuitry of the revision D, widely regarded as one of the best and most favored among the various versions produced over the years. Utilizing all discrete, through-hole components, premium CineMag input and output transformers, and a class A circuit, the WA76 stays true to the legacy design.

Features:
- Premium-grade input and output CineMag USA transformers.
- True to the classic '76 compressor in design and performance.
- Completely discrete signal path.
- Modeled after the D revision.
- Supports the famous "All Buttons In" ratio setting.
- Ultra-fast attack time.
- Class A line level output amplifier.
- Input impedance - 600 ohms, Bridges-T control (floating).
- Frequency response ± 1 dB 20 Hz to 20 kHz.

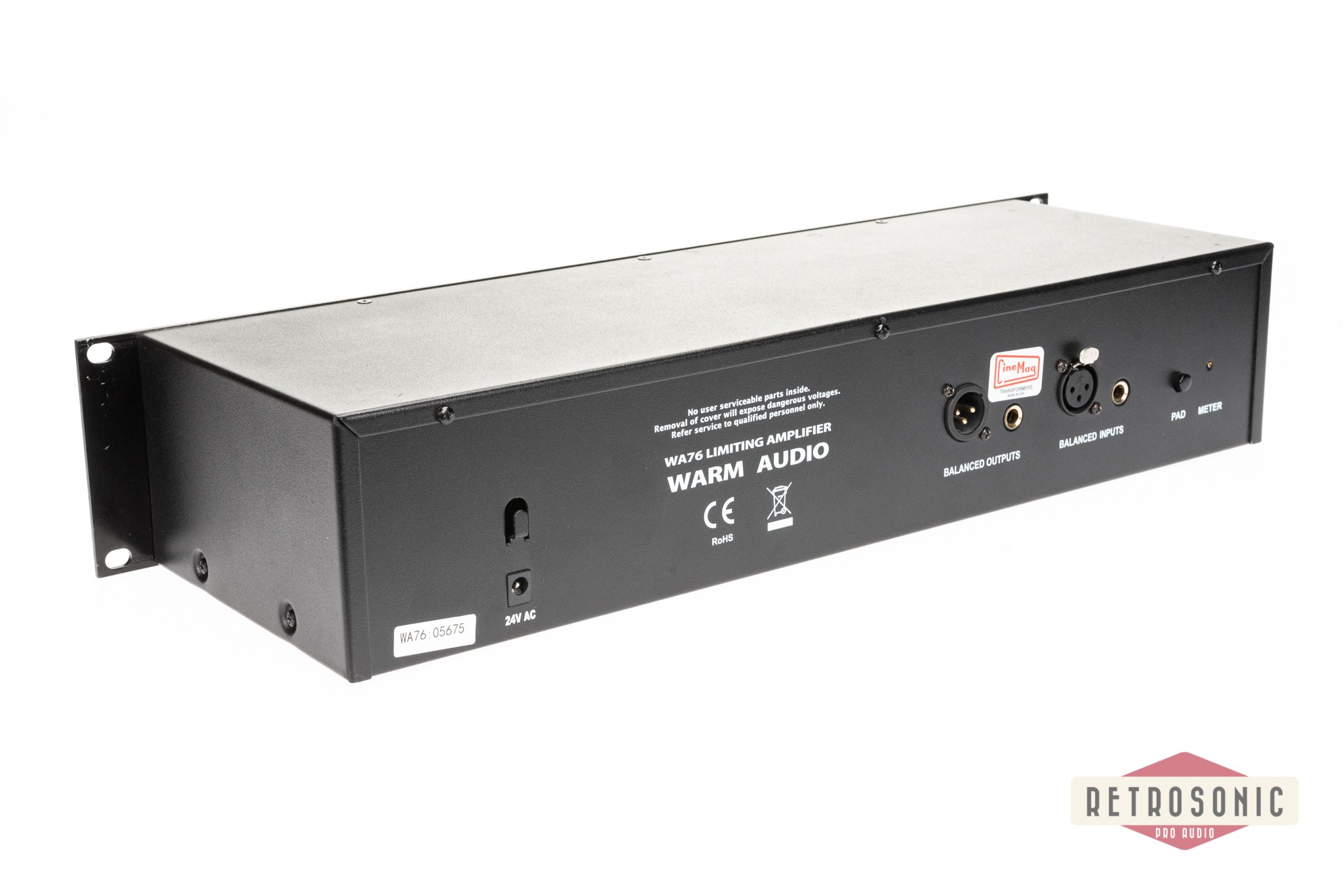

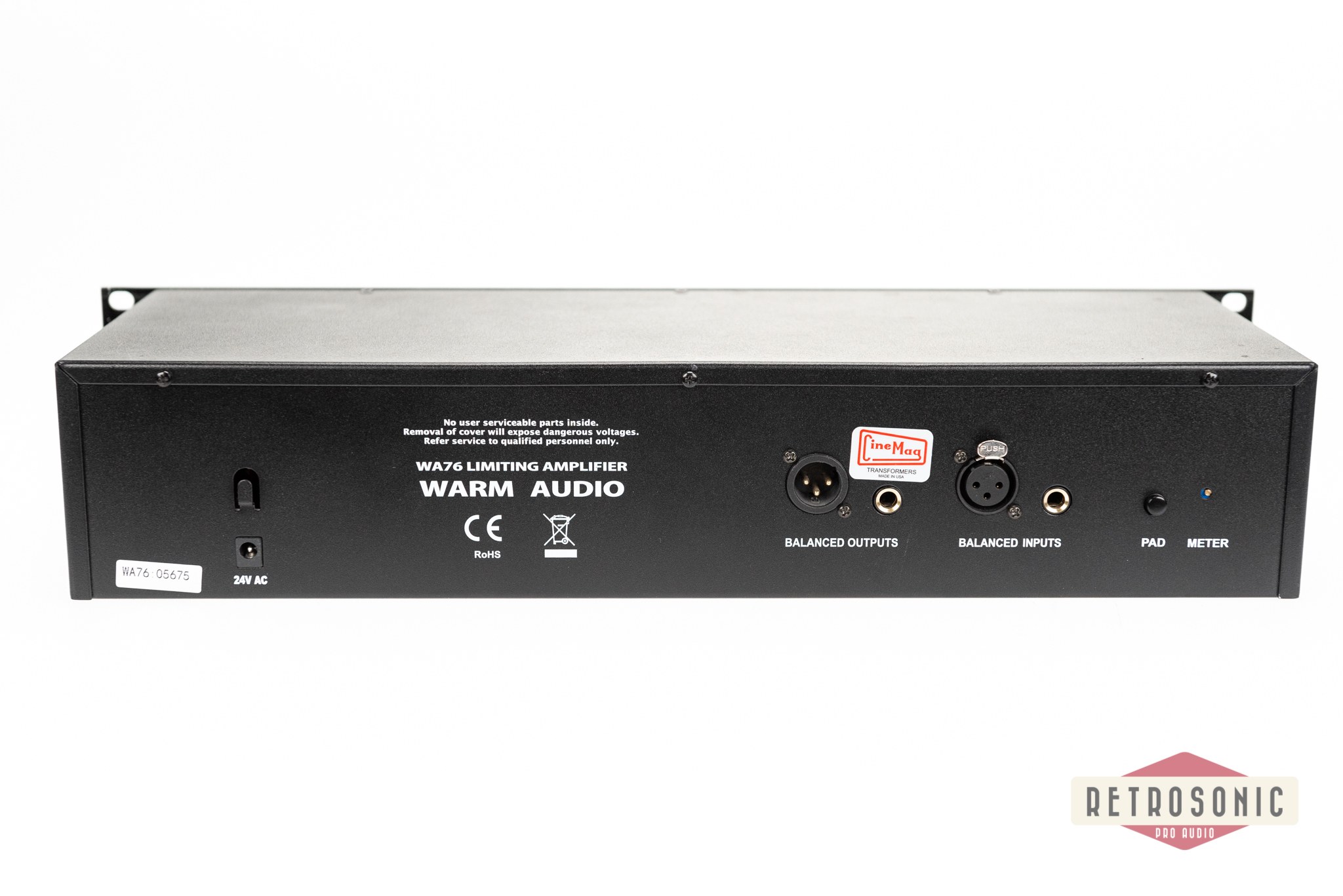

- XLR and TRS inputs. XLR and TRS outputs.
- 50 dB of gain.
- Less than 0.4% total harmonic distortion from 50 Hz to 20 kHz with limiting.
- Signal-to-noise ratio is greater than 74 dB at +25 dBm.
- EIN -104.1 dBm.
- Attack time, 20 microseconds to 800 microseconds.
- Release time, 50 milliseconds to 1 second.

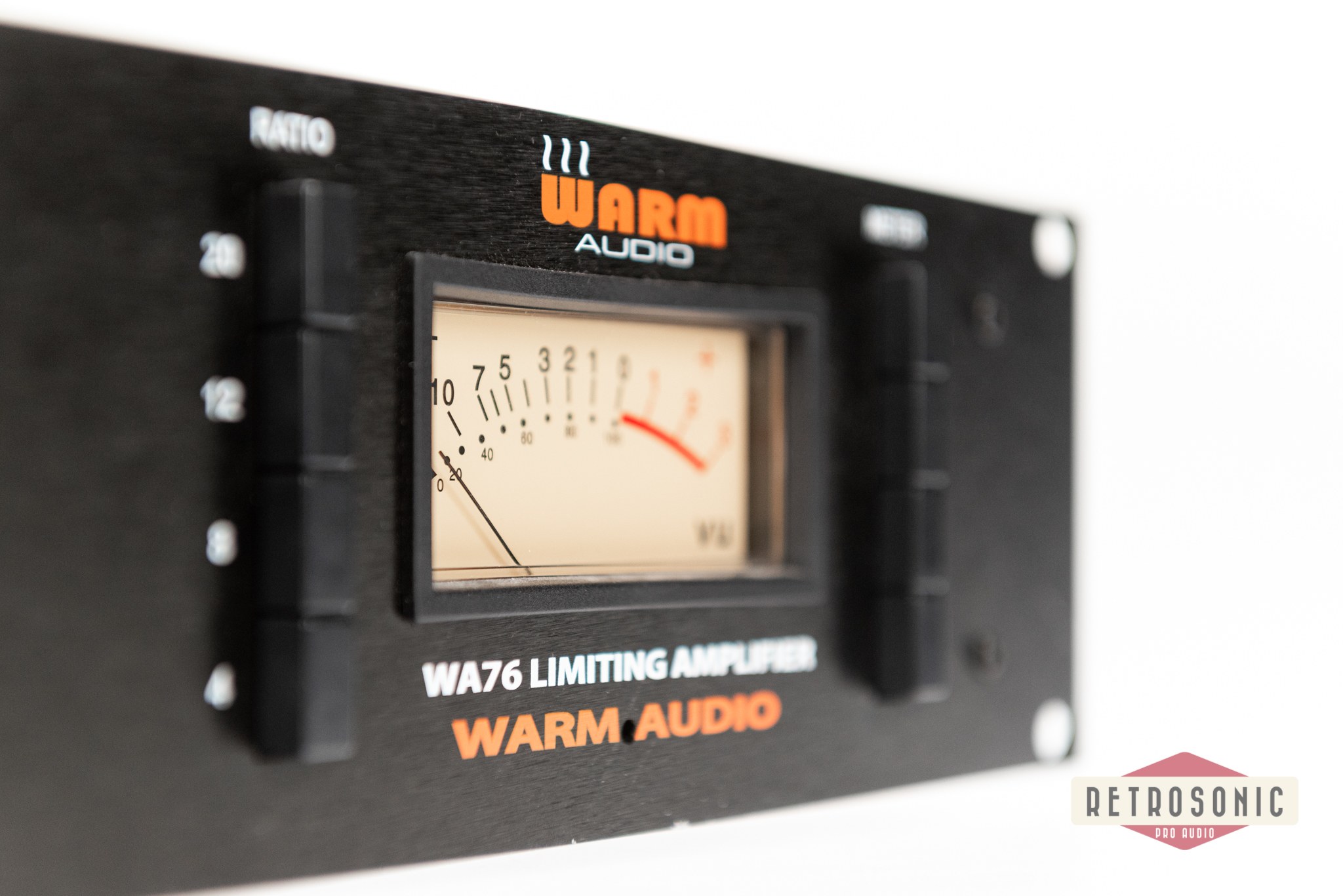

- Meter provides dB gain reduction and dB output.
- Switchable 115/230-volt IEC power inlet.
- 19″ rackmount chassis, 2U.
