WesAudio NG78 Stereo FET Compressor

FET compressors have long shaped the character and dynamics of recordings in professional studios. The ng78 continues this tradition with a two-channel, fully analog design featuring digital recall.

Each channel offers an extended attack time of up to 20 ms, enabling precise transient control while preserving the signature speed and punch of FET compression.

The newly added 2:1 ratio delivers subtle, musical compression. Introducing the ng78 – a blend of classic FET sound and modern versatility, providing full control across two channels.

Core Features:

· 100% Analog Stereo FET Compressor (1176-style) with +24dBu of headroom.

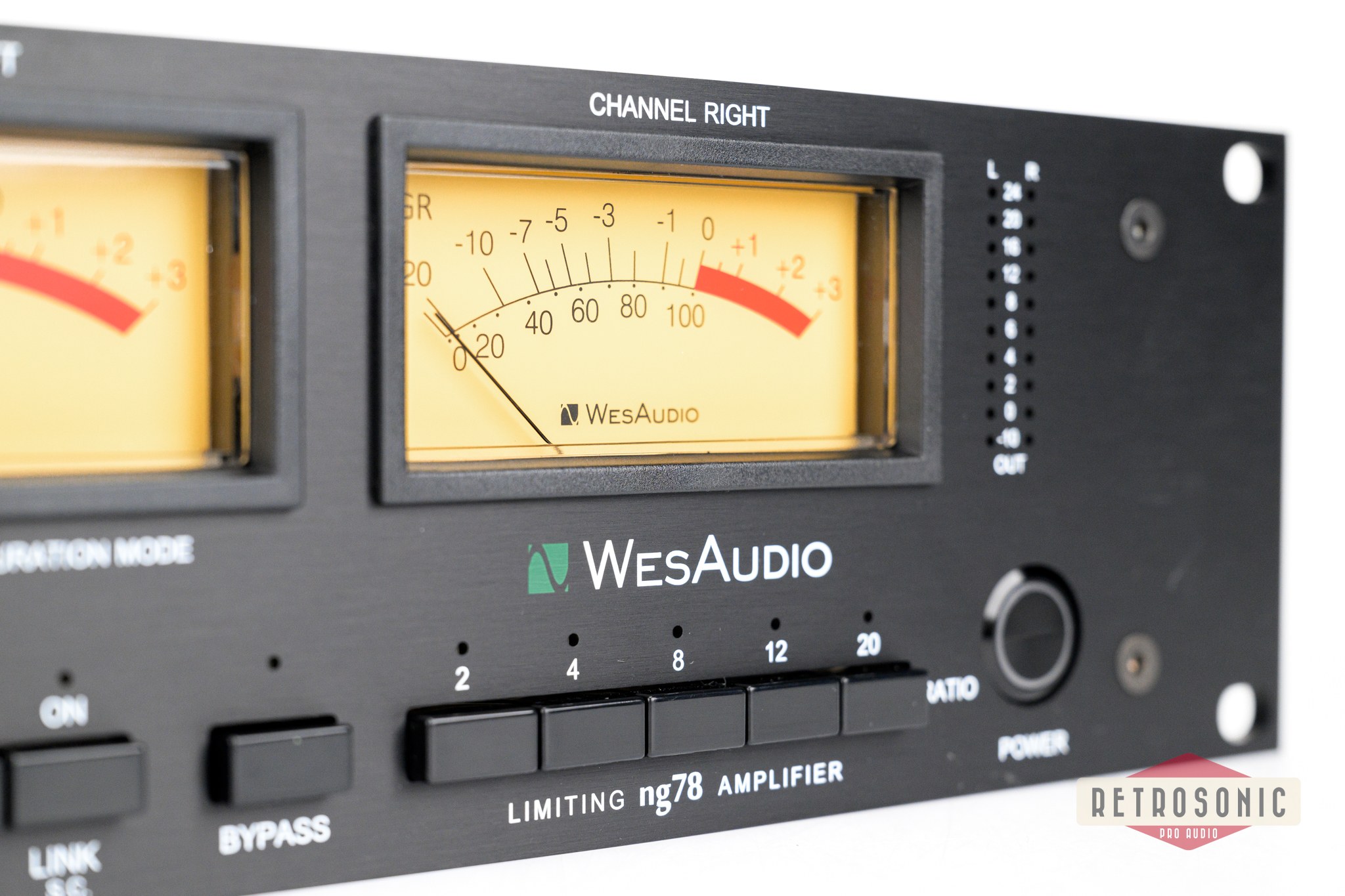

· Five Ratio Settings: 2:1, 4:1, 8:1, 12:1, 20:1 – including All-Button Mode and a gentle 2:1 ratio option.
· Extended Attack Range – now starting from slower values for more natural transient control.
· Total Recall & Plug-in Control – seamless integration with most major DAWs.
· Parallel Compression via dedicated MIX knob.
· Carnhill Transformer Output Stage for added analog weight and character.
· Flexible Detector Linking – choose between dual mono stereo compression or true stereo operation.

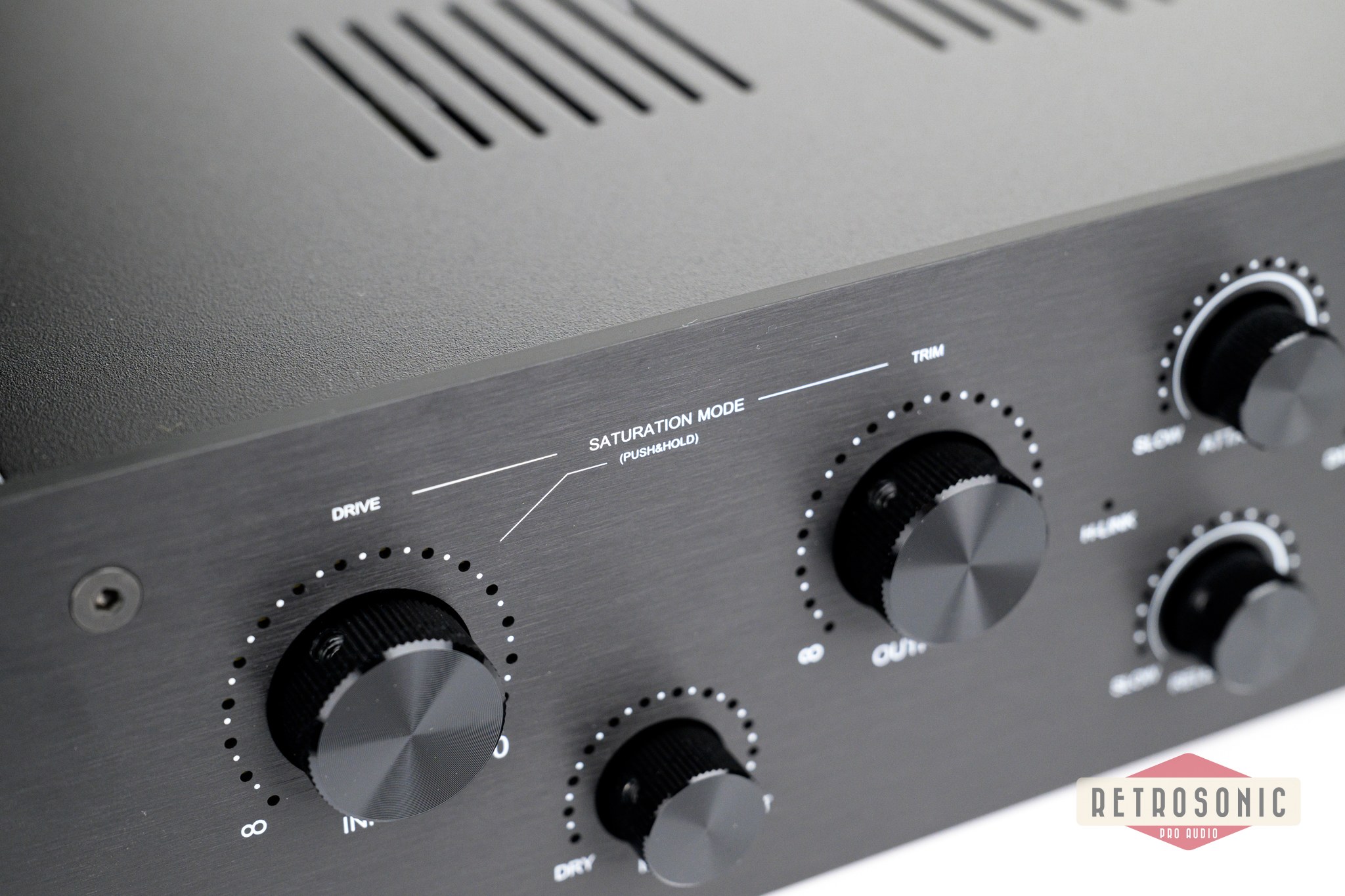

· Saturation Mode – a dedicated control simultaneously adjusts input and output (compression circuit disabled),
turning the unit into a saturation box or clipper.
· Dynamic Link Technology – adaptive circuit that compensates for component tolerances in the sidechain signal, ensuring perfect stereo balance during compression for every parameter combination.

Sidechain & Metering:

· Advanced Sidechain EQ with two independent sections:
· High-Pass Filter at 60 Hz / 90 Hz / 150 Hz – preserve low-end while compressing.
· High Shelf at 2 kHz / 5 kHz / 10 kHz – emphasize mid/high content for precise detection.

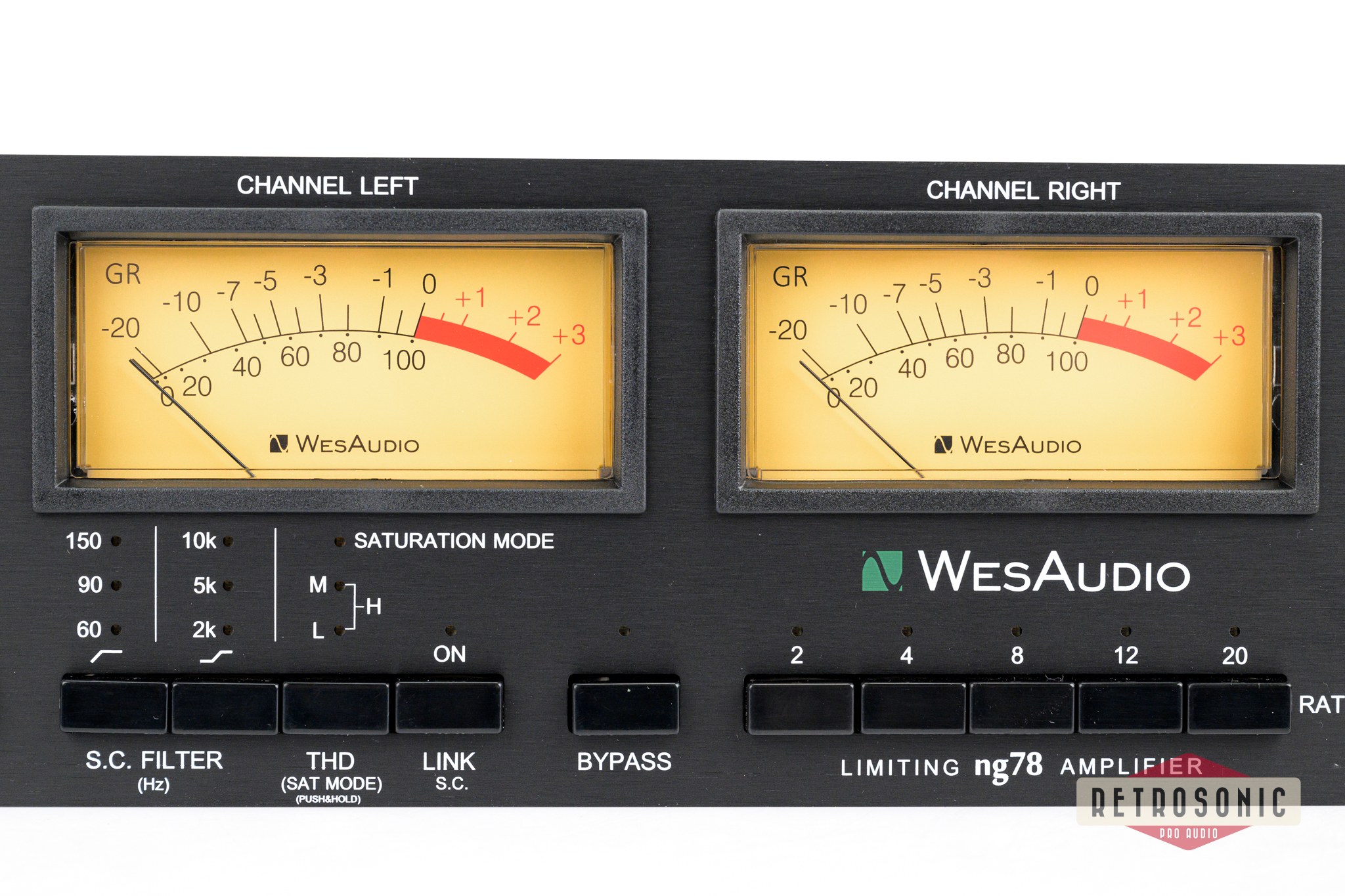

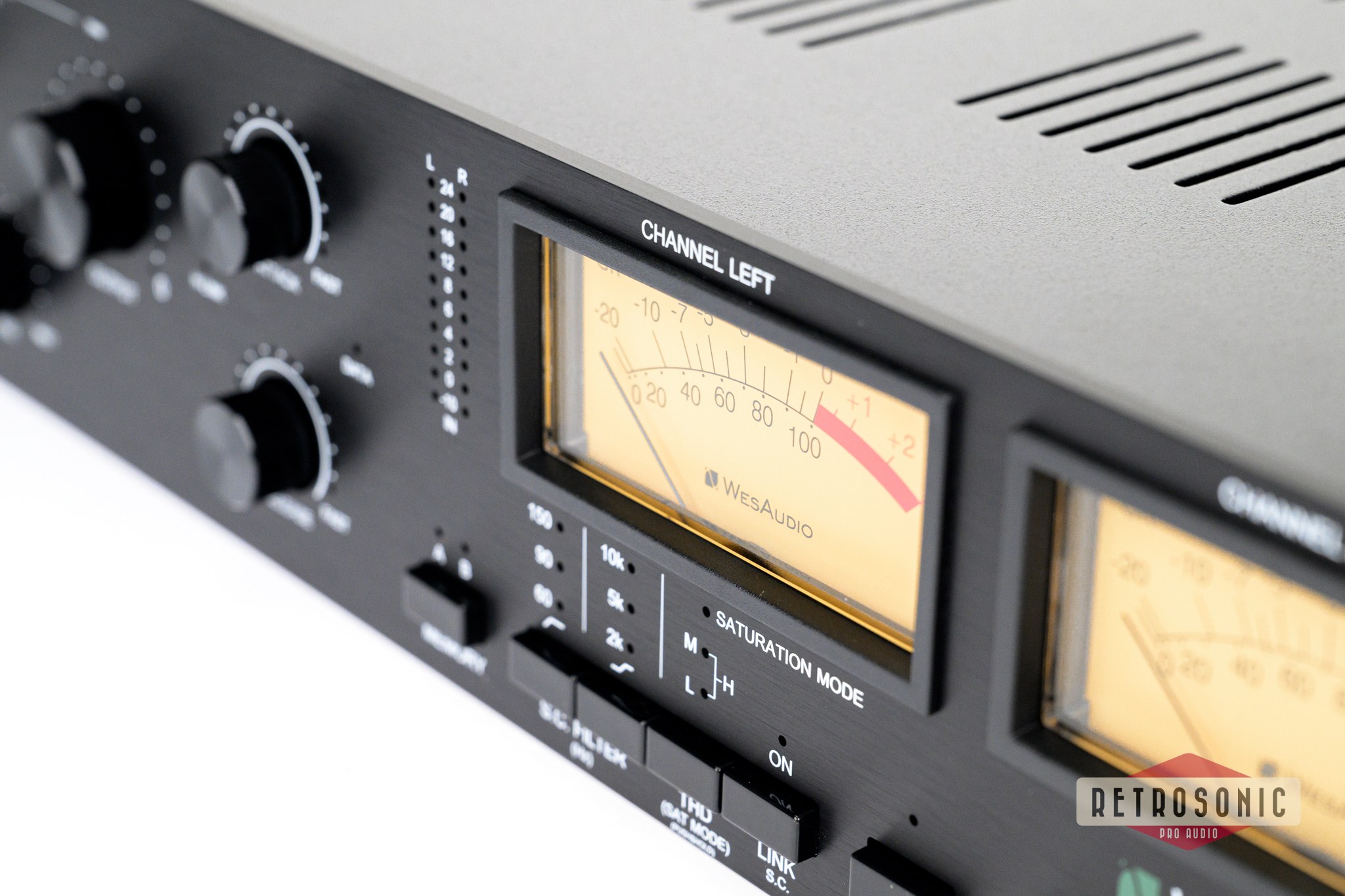

· 2 Vintage-Style Gain Reduction Meters for classic visual feedback.
· High-Precision Input & Output Metering for accurate level monitoring.


Additional Highlights:

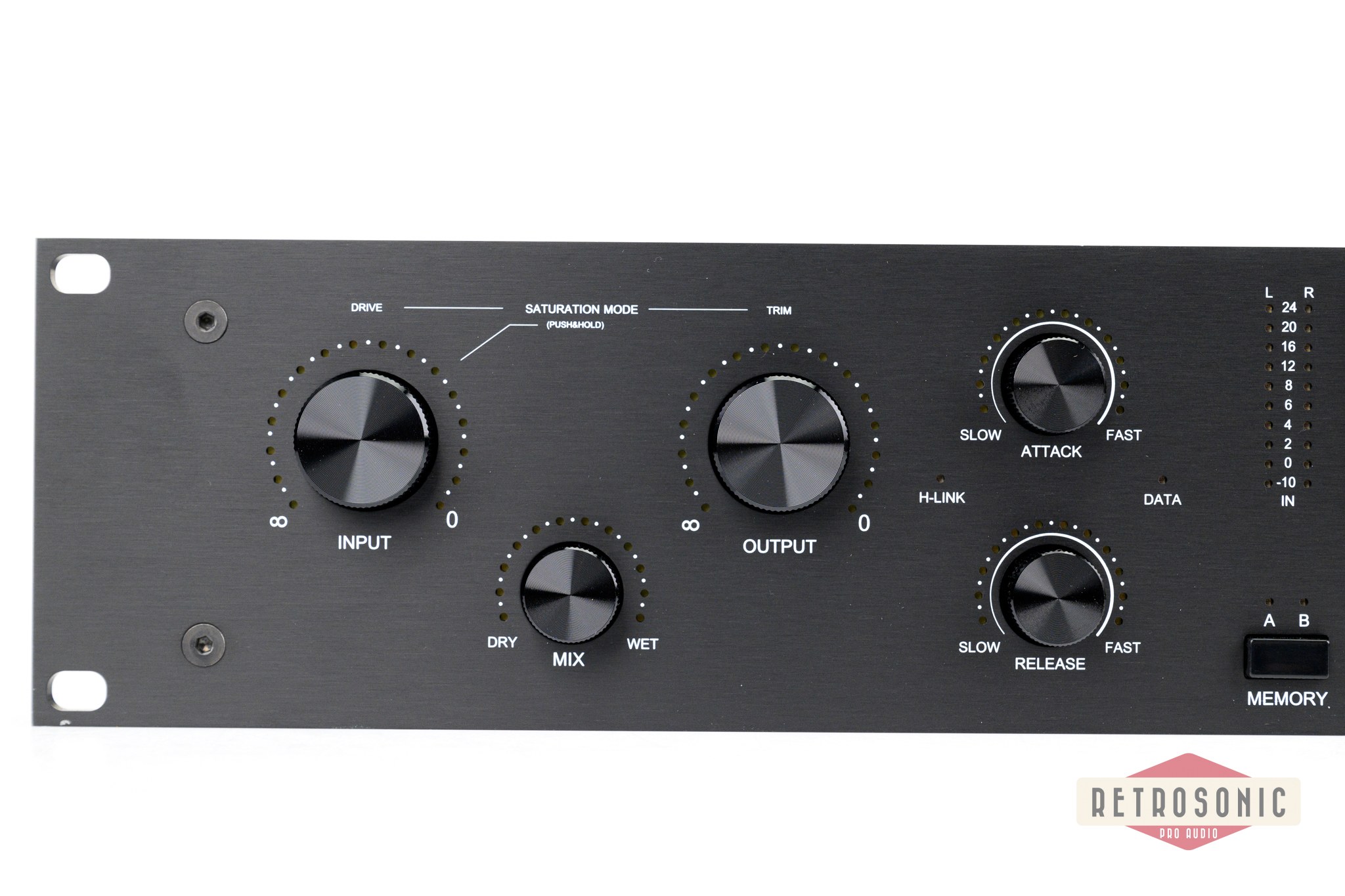

· Classic FET Compressor Controls: Input, Output, Attack, Release.
· Selectable THD (Total Harmonic Distortion) with Low, Mid, and High modes – tailored harmonic enhancement from the FET circuit.
· Fully Digitally Controlled Analog Circuit – isolated control path ensures pure analog signal integrity.
· Hardware A/B Switching – instantly compare two independent settings.
· Analog Automation in DAW for modern hybrid workflows.
· USB & Ethernet Connectivity for flexible plugin integration.
· Form Factor: 2U rackmount

Attack Time: 20us – 20ms
Release Time: 50ms – 1100ms
Compression Ratio: 2:1, 4:1, 8:1, 12:1, 20:1 (all possible combinations)
SC High Pass Filter: 60,90,150Hz
SC High Shelf Filter: 2kHz, 5kHz, 10kHz
Output Impedance: 50 ohm
Frequency Response: 20Hz-20kHz (+/- 1dB)
Signal to Noise Ratio SNR: SNR >83dB
Max Signal Level: +24dBu
THD+N MIN: 0.2%
Noise Floor: -95dBu

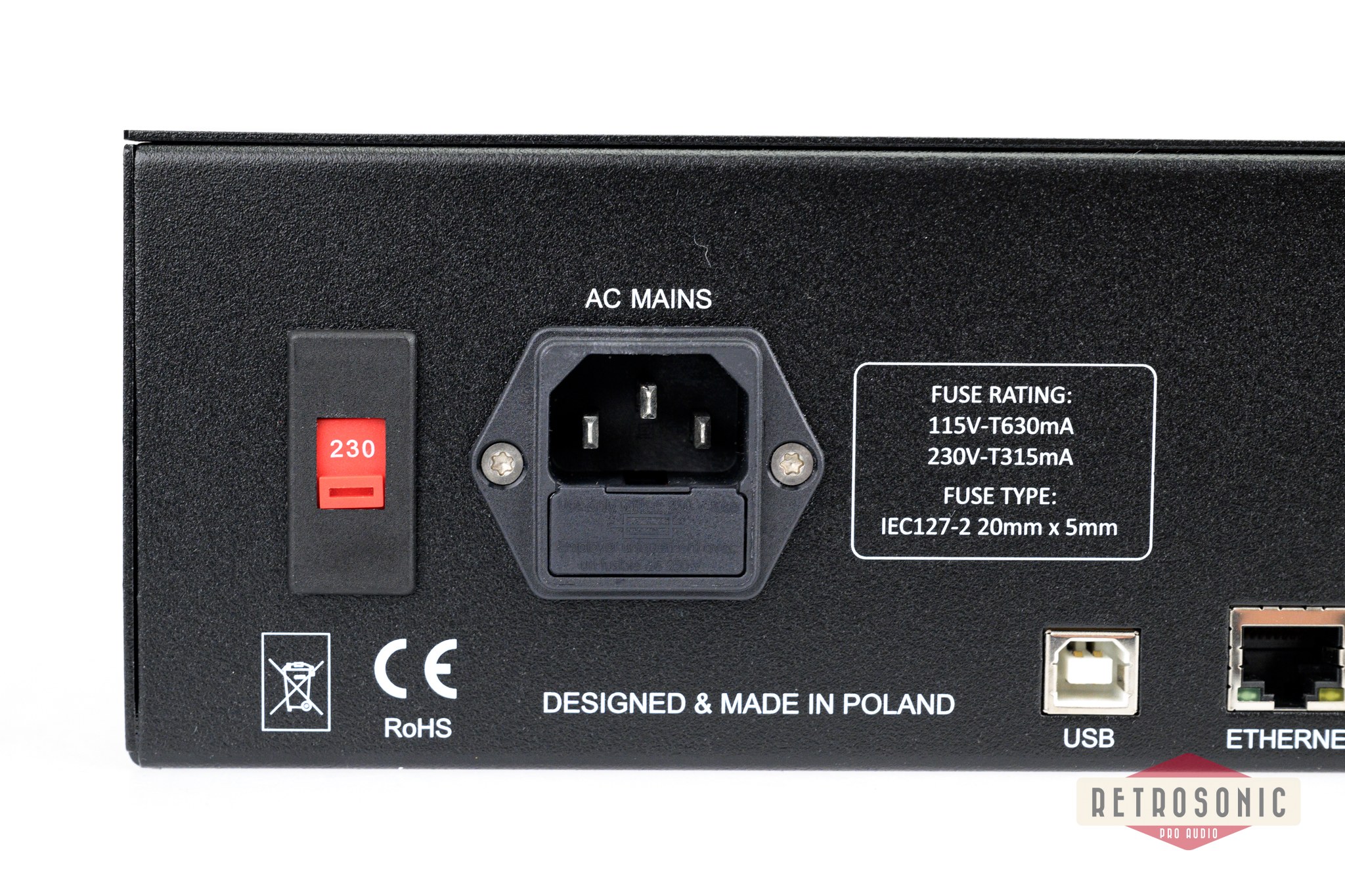

Power Consumption: 14W
Unit Dimensions: 88x483x235mm
Box Dimensions: 580x420x320mm
Unit Weight: 7 kgs
Box Weight: 8 kgs

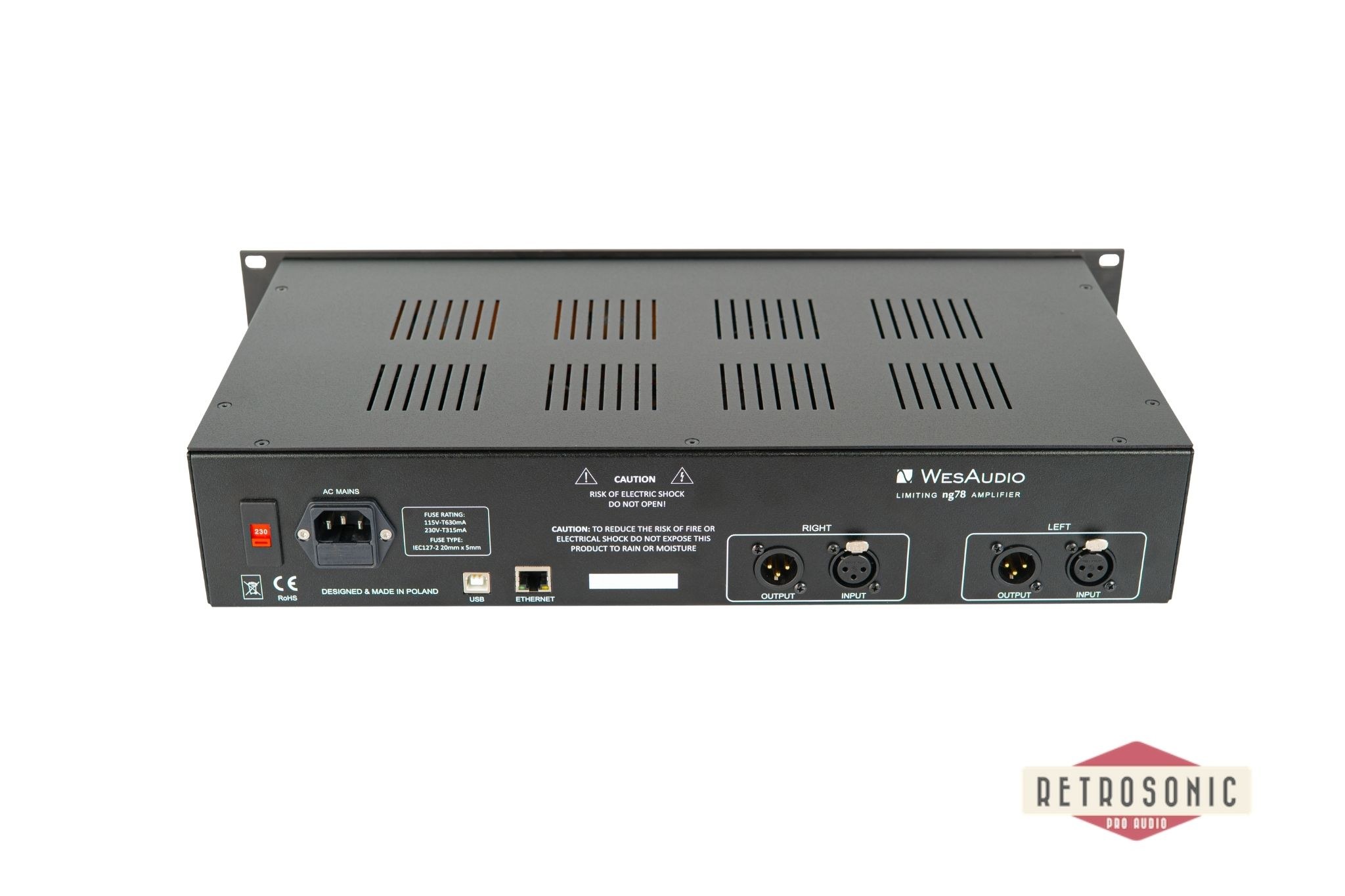

Balanced Output and Input
Case Rack: 2U
Warranty: 2 years
