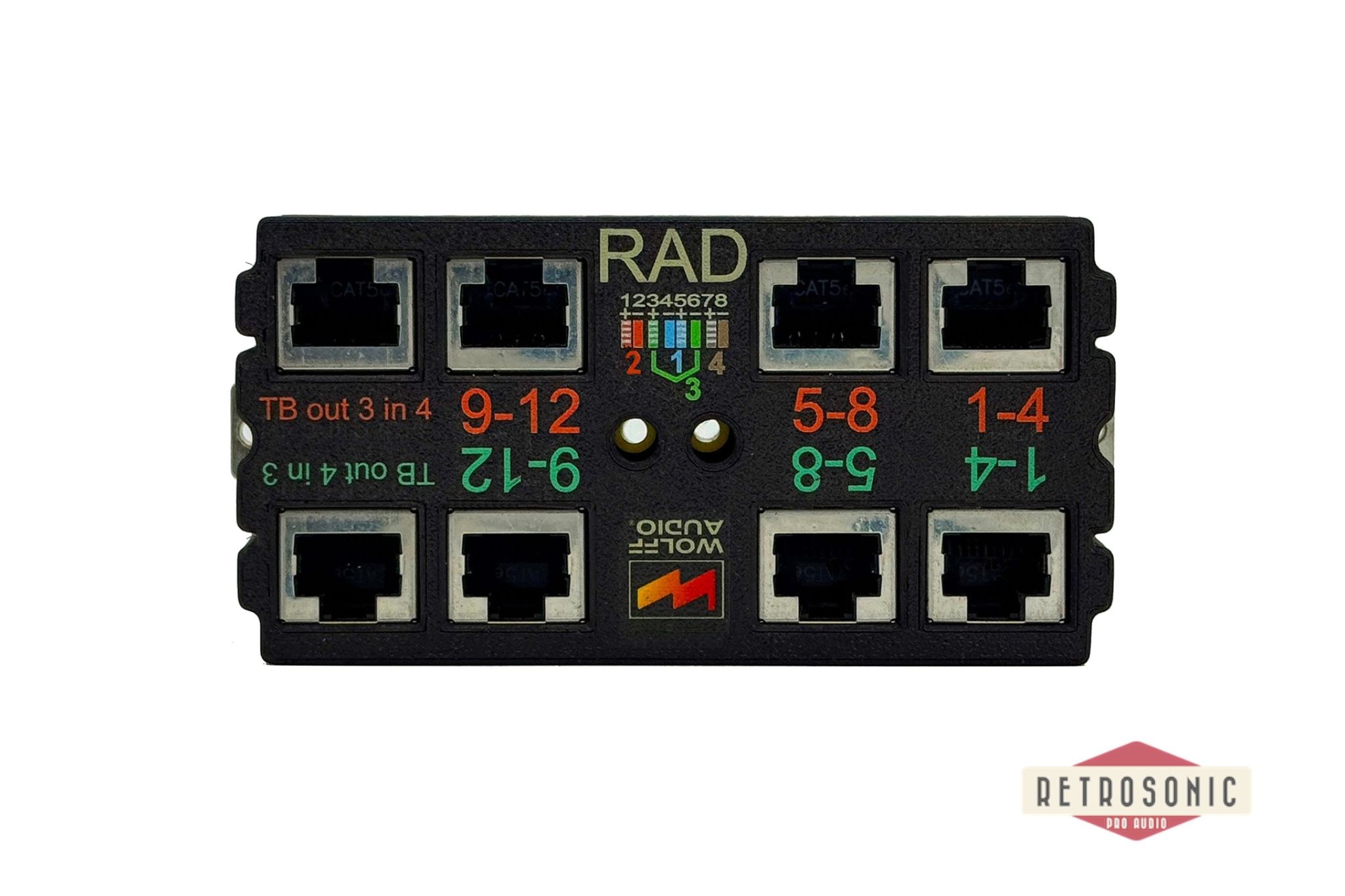

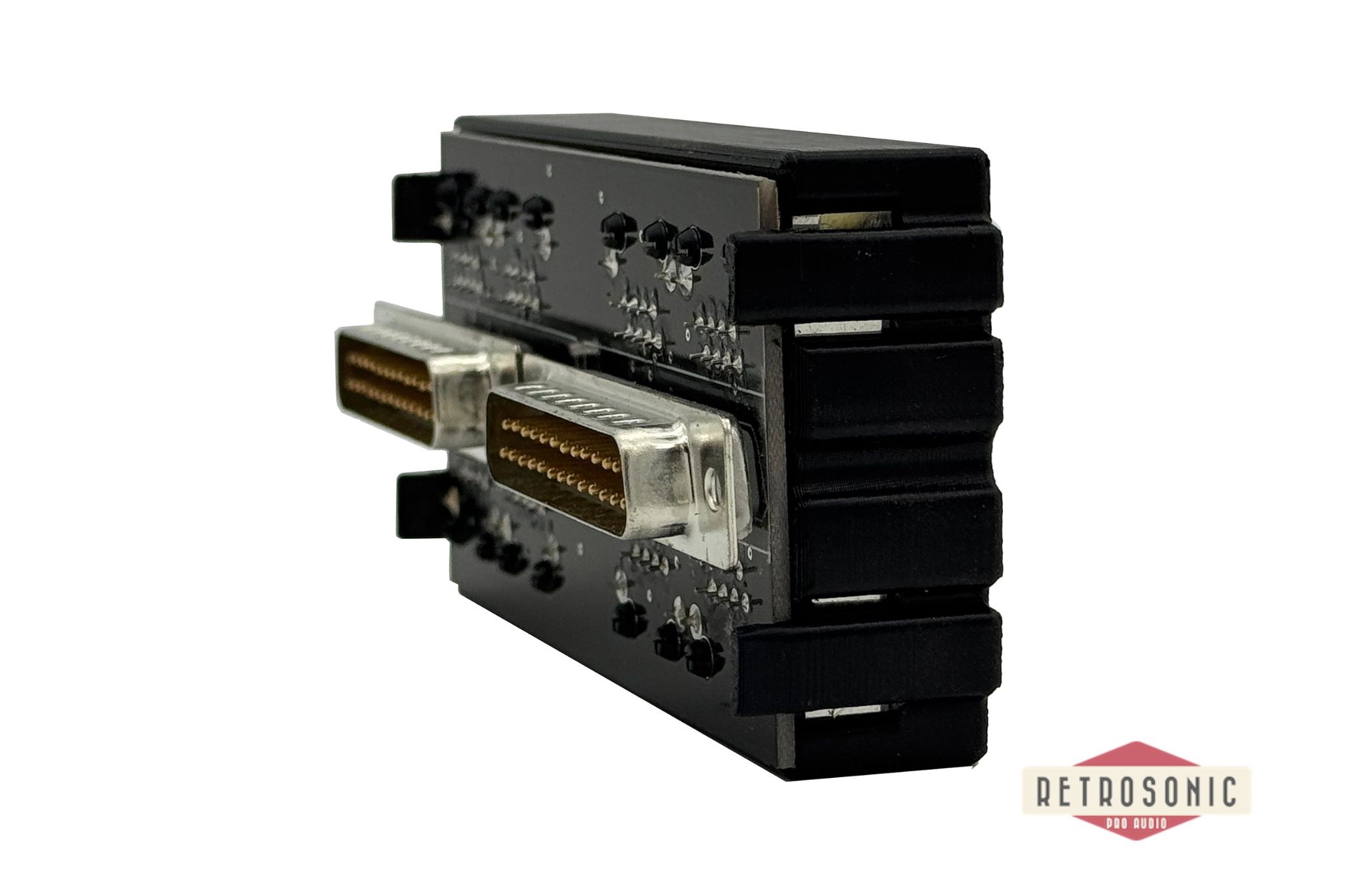

Wolff Audio MeMore RJ45 RAD

Designed for seamless operation with the Radial Catapult system, the MeMore RJ45 RAD Adapter Card integrates CAT-based analog audio networks directly into the Wolff Audio MeMore monitoring environment. This RJ45 to DB25 interface enables clean, efficient analog signal distribution over standard CAT5/CAT6 cabling.

By replacing traditional analog multicore with lightweight Ethernet infrastructure, the adapter simplifies wiring while preserving signal integrity. A full 12-channel audio configuration is carried via three RJ45 connections, while a dedicated fourth RJ45 port provides bidirectional HearMe talkback between units.

Features

• Optimized for Radial Catapult systems
• Replaces bulky analog multicore with CAT5/CAT6 cabling
• Four analog audio channels per cable
• Full 12-channel connectivity using three RJ45 cables
• Dedicated RJ45 for HearMe talkback I/O
• Compatible with CAT5 and CAT6 installations
• Parallel wiring for flexible expansion and daisy-chaining

Specifications

• Input: 4 × RJ45 (3 audio, 1 HearMe talkback)
• Output: 2 × DB25, 4 × RJ45
• Channel Count: 12 analog audio channels + talkback
• Cable Type: CAT5 / CAT6
• Wiring: Parallel configuration

Included

• Wolff Audio MeMore RJ45 RAD Adapter Card
• Manufacturer warranty
