JoeCo Blackbox BRR1-A Recorder. Adat-version & 24-ch Analog I/O (DB25)

The 24 channel BBR1A multi-track ADAT recorder brings the benefits of multi-track audio capture with the BLACKBOX Recorder to digital desks and D-A converters equipped with Lightpipe (TOSlink) I/O.

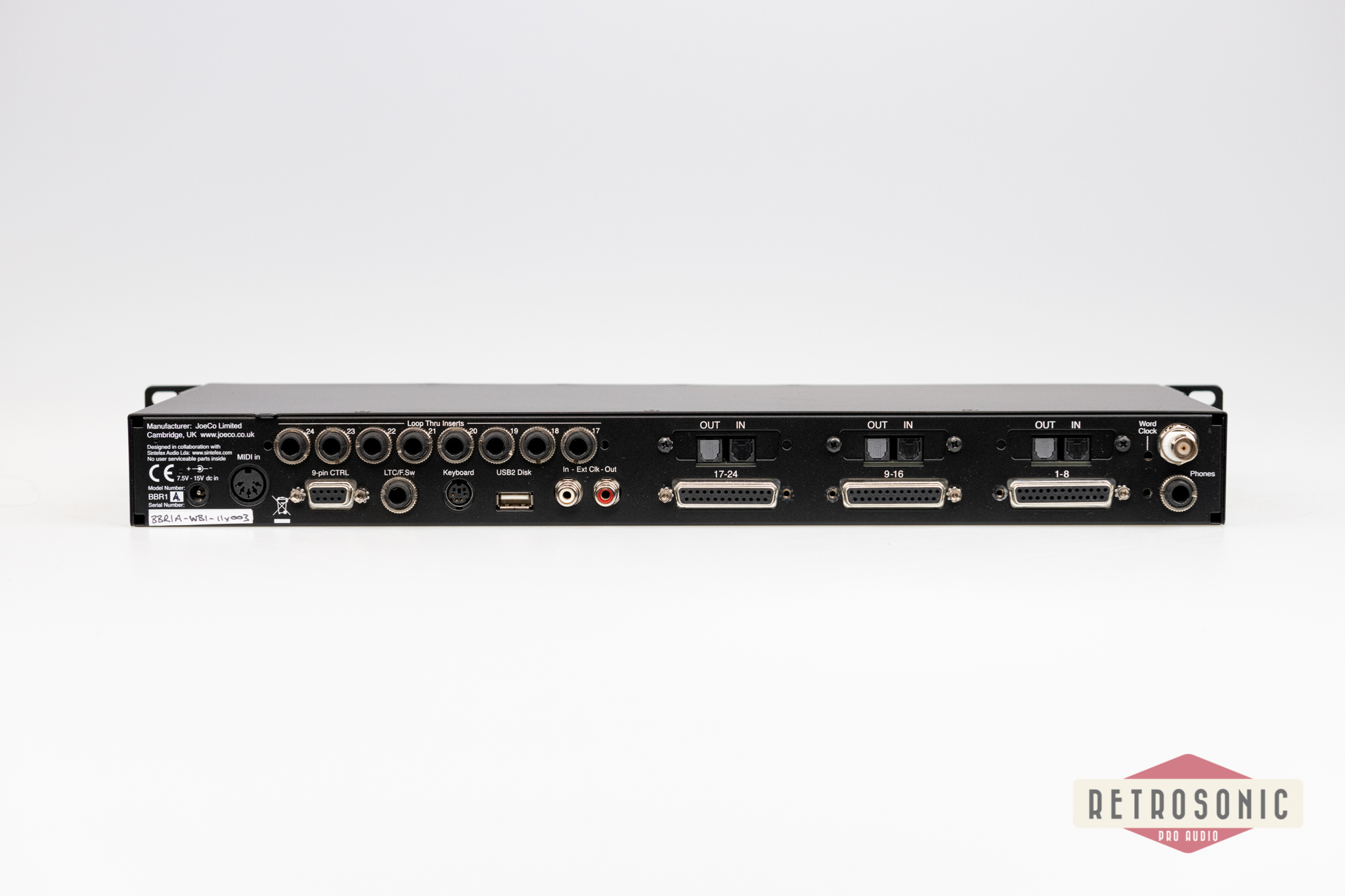

Three 8-channel Lightpipe inputs can be connected from the mixer while three Lightpipe outputs can return the signals back to the mixer. All other BLACKBOX multi-track recorder features remain unchanged, and the full analogue I/O capability of the standard BBR1 is still available for situations where the Lightpipe interface is not suitable.

JoeCo BLACKBOX BRR-A recorder is designed and built to the highest standards with rugged construction and a suite of unique features. It is the trusted choice of professionals all across the audio industry.

Lightpipe i/o via 3 x TOSLINK inputs and 3 x TOSLINK outputs (24 channels @ 48k, 12 channels @ 96k). Word clock input on BNC. Unbalanced analogue as BBR1U (cable looms not supplied)

Serial nr.: #BBR1A-WB1-11x003

Good working and visual condition. Unit operates on 7.5-15V PSU, which is not included.

Technical Specifications:

Sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz.
Bit depths: 16 / 24bit
Disk interface: USB2 – easy to obtain
Disk format: FAT32 – compatible with both Mac and PC
File type: Standard mono Broadcast WAV files
Monitoring: 1 x 1/4” TRS jack socket, headphone mix / solo
Physical: 19” rack mounted 1U (425x44x150m). Weight 2.1kg
Power: (9V-16V dc (<30W). 2.1mm dc inlet. PSU supplied
Audio i/o: Analogue inputs / outputs
Levels: -10dBu / +4dBu switchable
Max input / output level: +22dBu = 0dBFS
A-D / D-A conversion: 24bit, 96kHz 106dB S/N, 96dB THD+N
(typical A-weighted)
