The NBB-04T transmits 4 channels of analog audio converted from Dante networked audio stream which is distributed from other Dante-enabled devices.

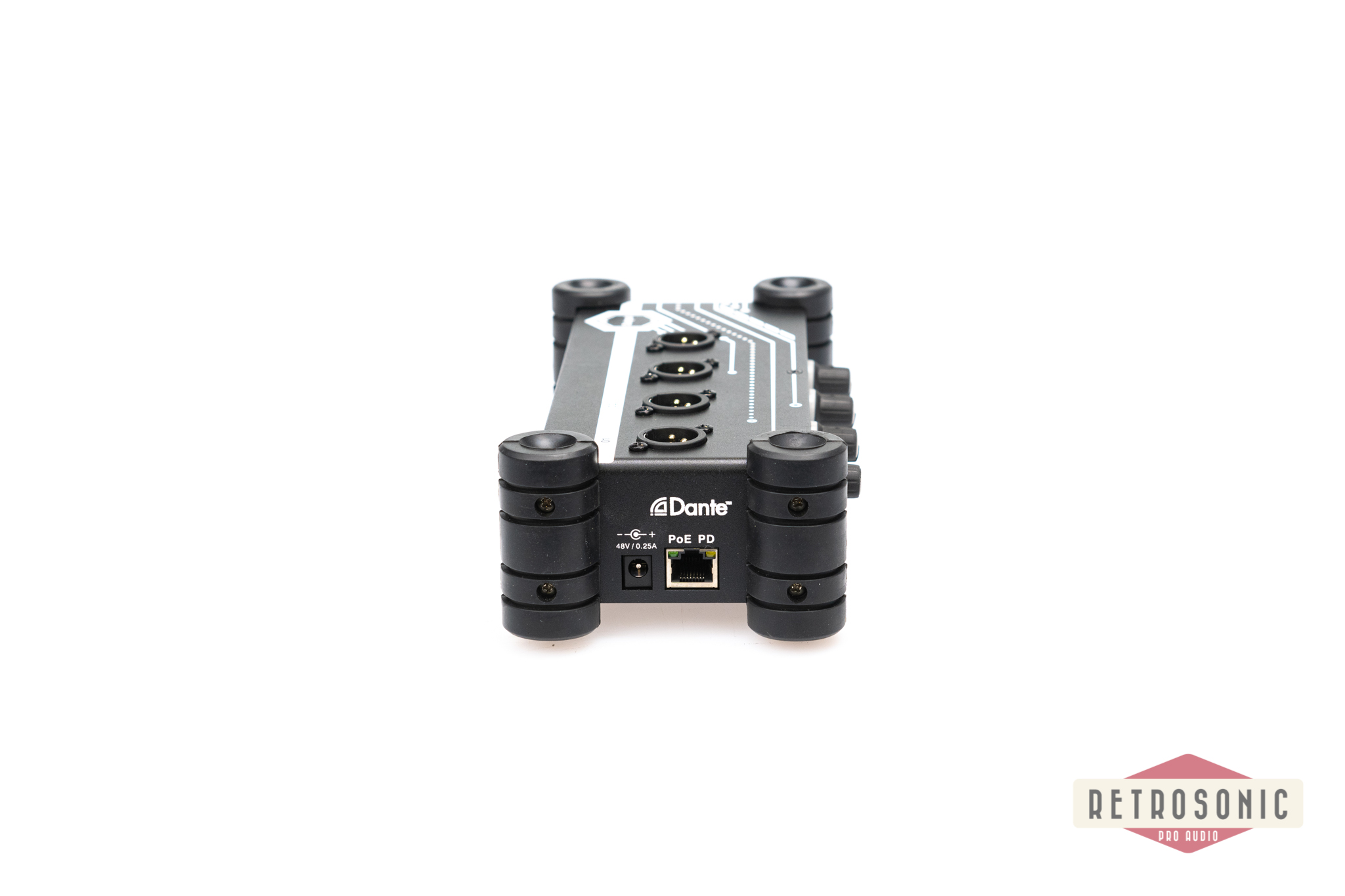

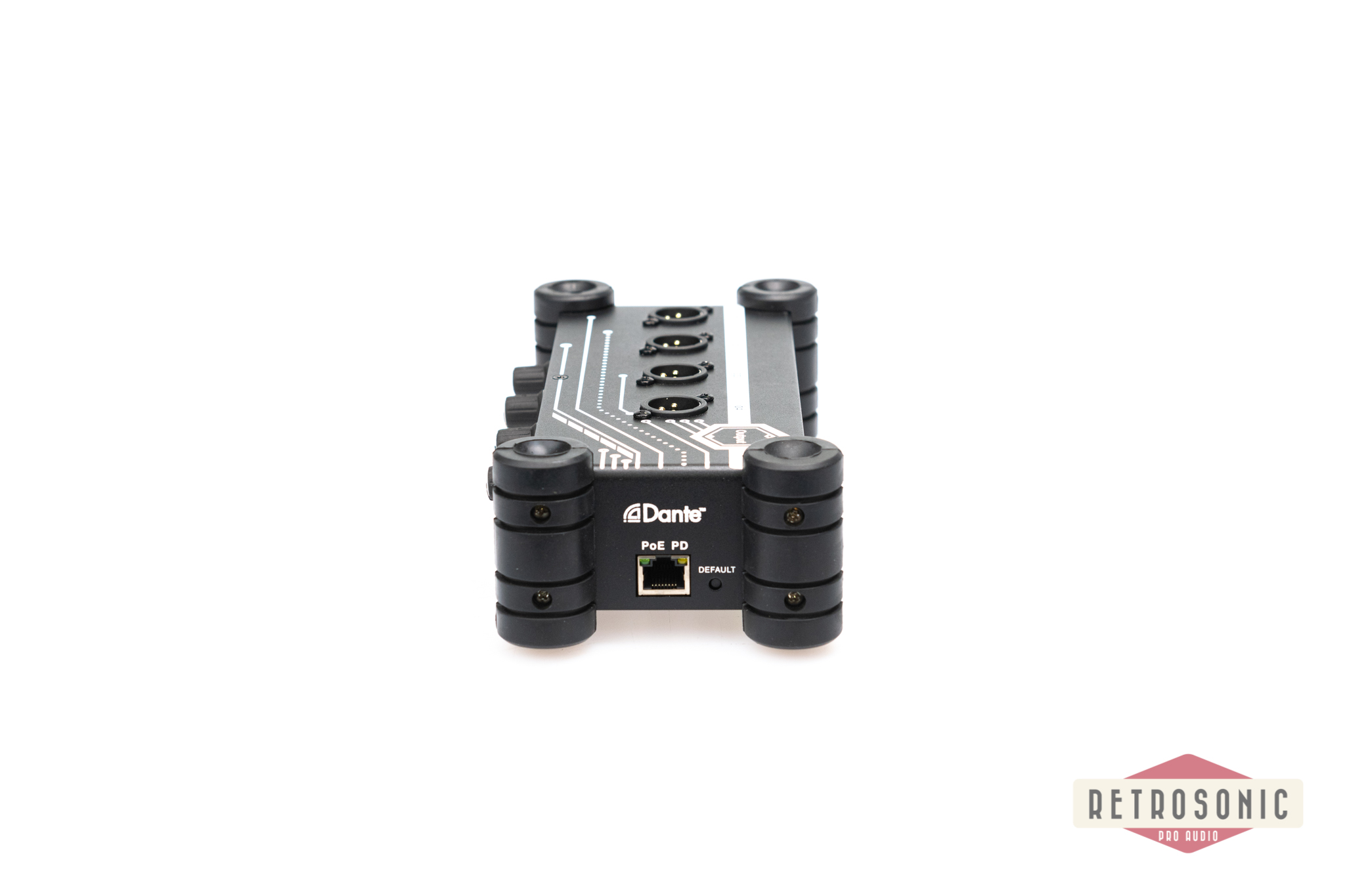

NBB-04T is equipped with two RJ-45 Ethernet ports so that several NBB- 04R/NBB-04T can be cascaded, i.e. in daisy-chaining, in the same network link. NBB-04T can be powered by either PoE from Ethernet switch or 48V from external power adapter.
The audio input/output interfaces of NBB-04T are fully met the requirement of professional audio industrial. Audio is encoded/decoded with the latest and uncompressed 24-bit PCM encoder/decoder with sample rate in 44.1KHz, 48KHz, or 96KHz.
The NBB-04T outputs are peculiarly buffered with amplifiers of high-rail-voltage which can drive the lines up to 24dBu. Besides the high-level of drive capability, the output of NBB-04T can also be attenuated to meet the narrower reception range of inputs of some semi-professional devices.
.Dante-enabled networked Audio Receiver (NBB-04R) and Transmitter (NBB-04T)
.Streaming audio in robust standard Ethernet cable (a.k.a., Digital Snake)
.Easily organize and expand network topology with Ethernet switches
.Uncompressed 24-bit PCM coding with sample rate up to 96KHz
.Two RJ-45 ports make Daisy-chain cascading feasible

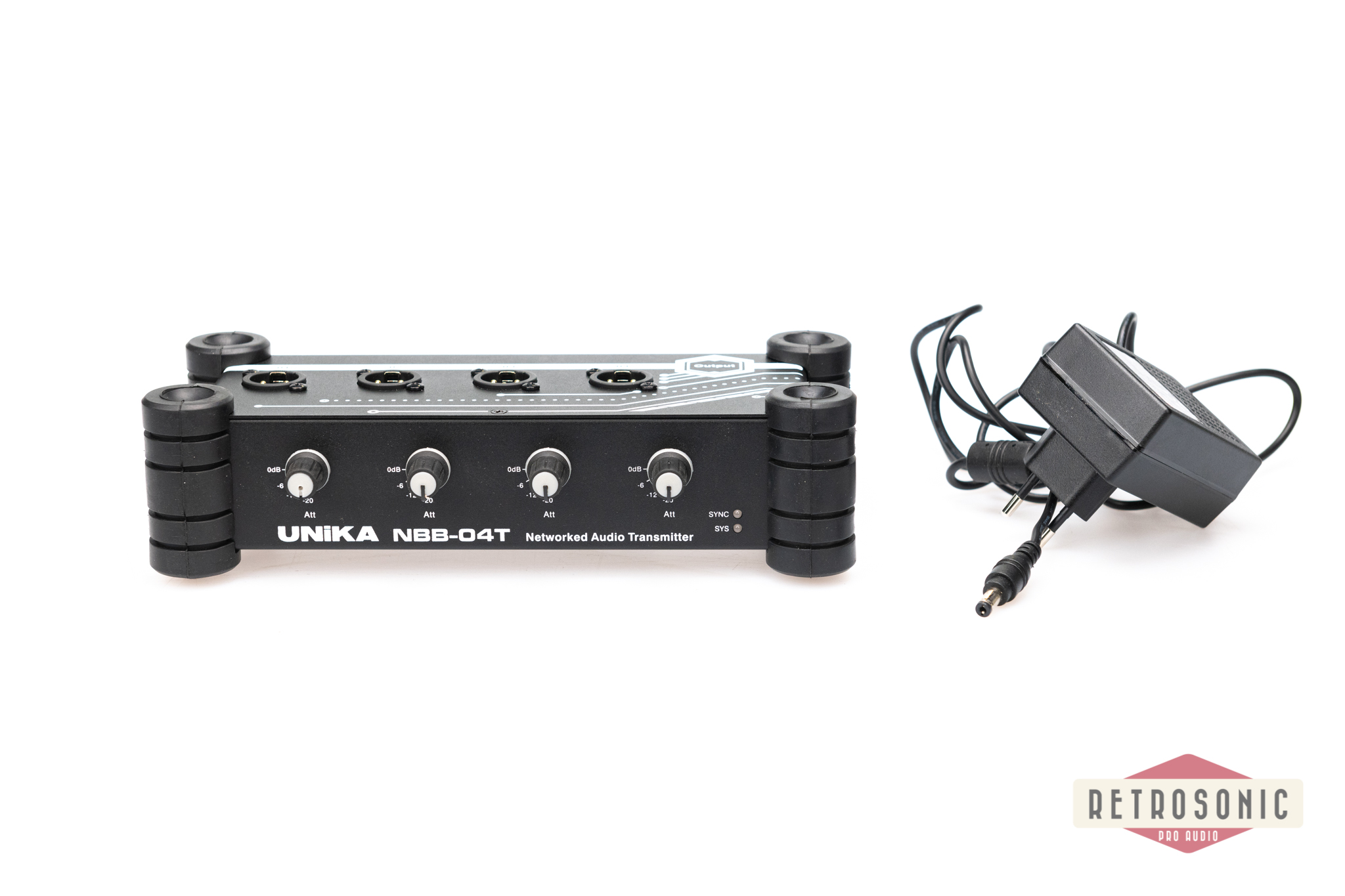

.Powered by either PoE or 48V adapter
.Gain or Attenuate control for each channel
.Phantom power engagement control per channel (NBB-04R)
.A signal clip indicator for all inputs (NBB-04R)
.XLR Combo sockets for both XLR and phone plugging (NBB-04R)
.Routing and other configuration are set with Dante Controller software
