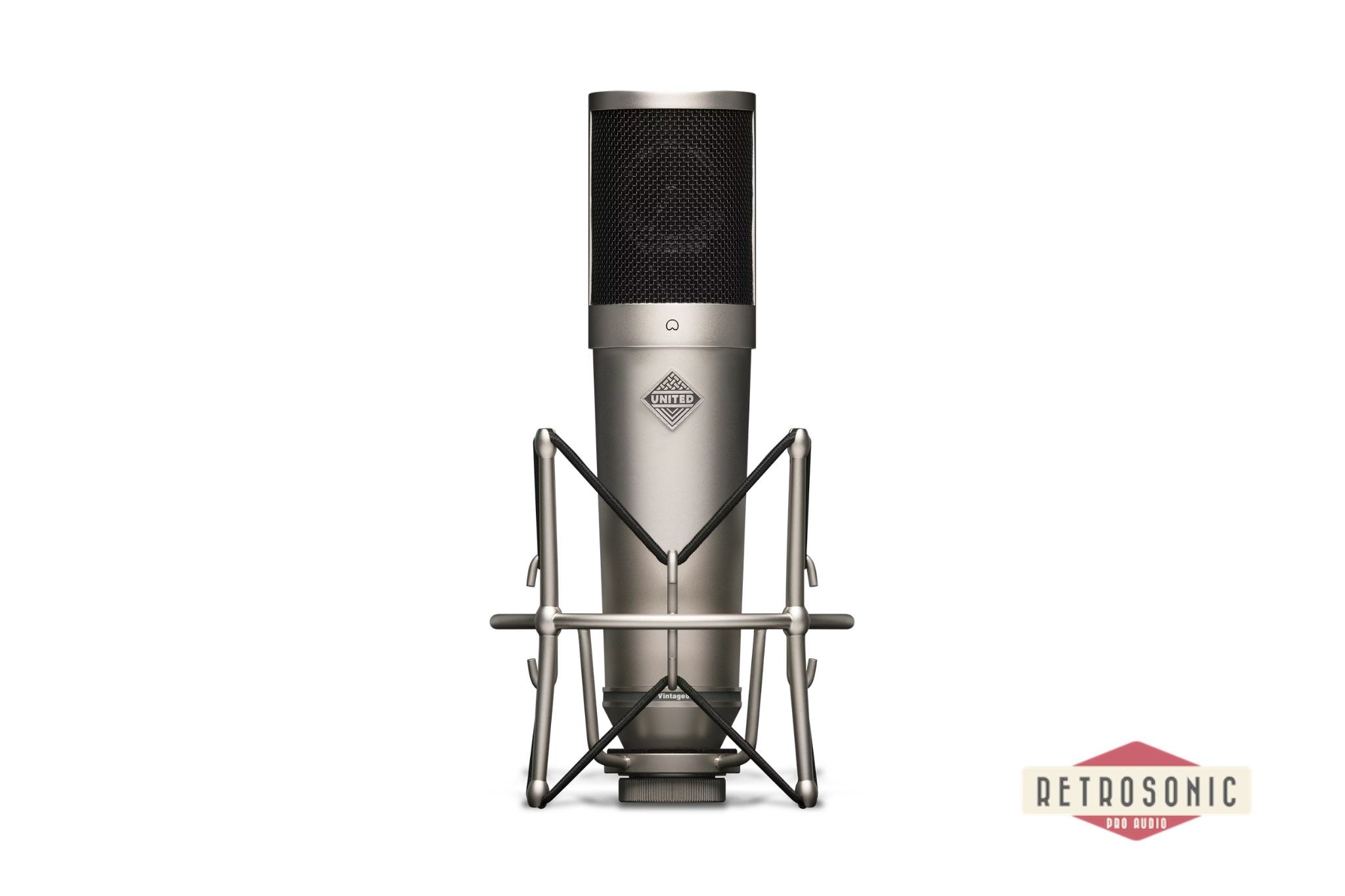

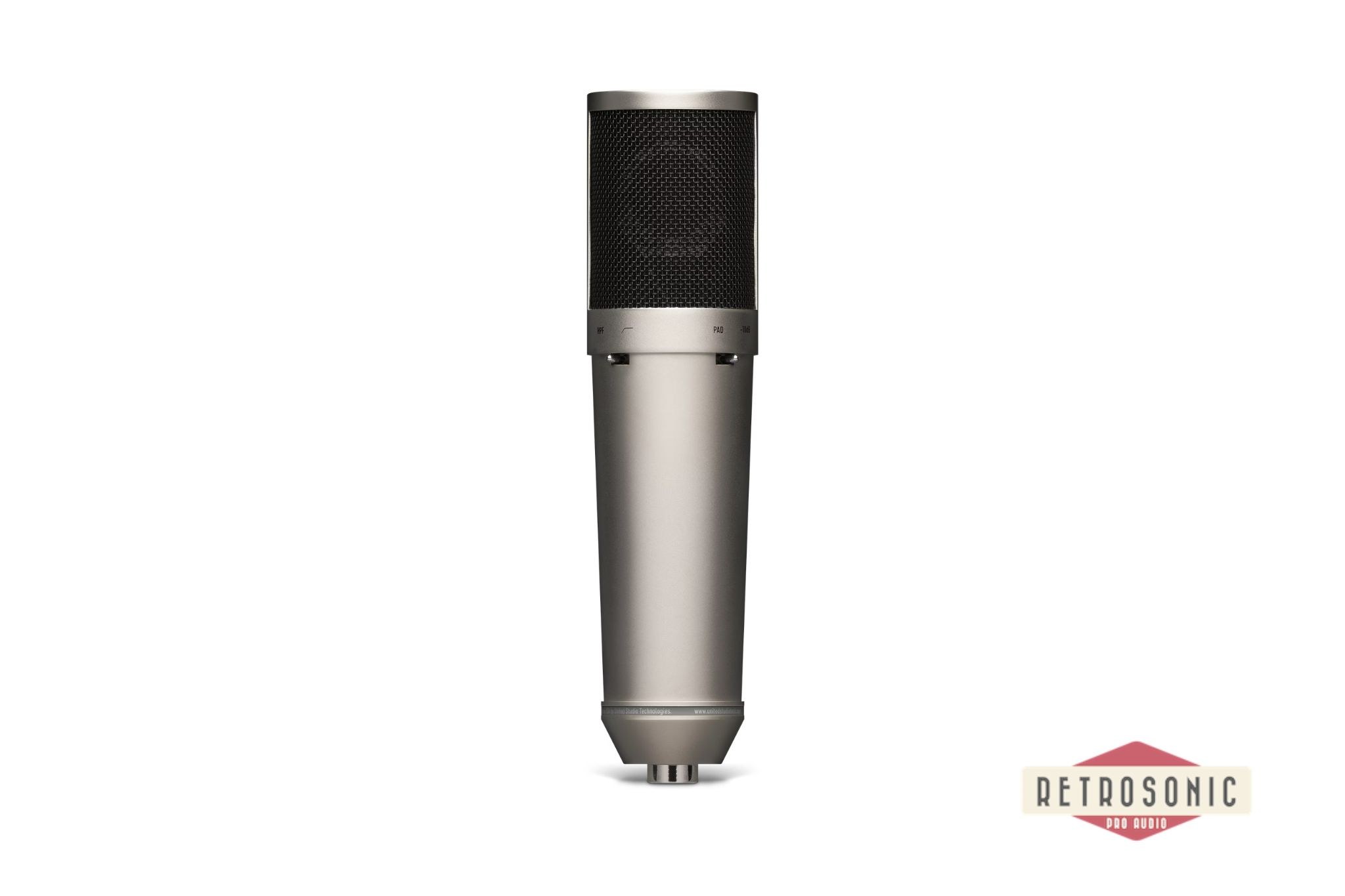

United Studio Technologies UT Vintage87 Condenser Microphone

The UT Vintage87 takes the core character of United’s Twin87 and puts it into a simpler, more focused format. It keeps the same serious component quality and classic voicing, but uses a fixed true cardioid pattern for a more direct, streamlined workflow.

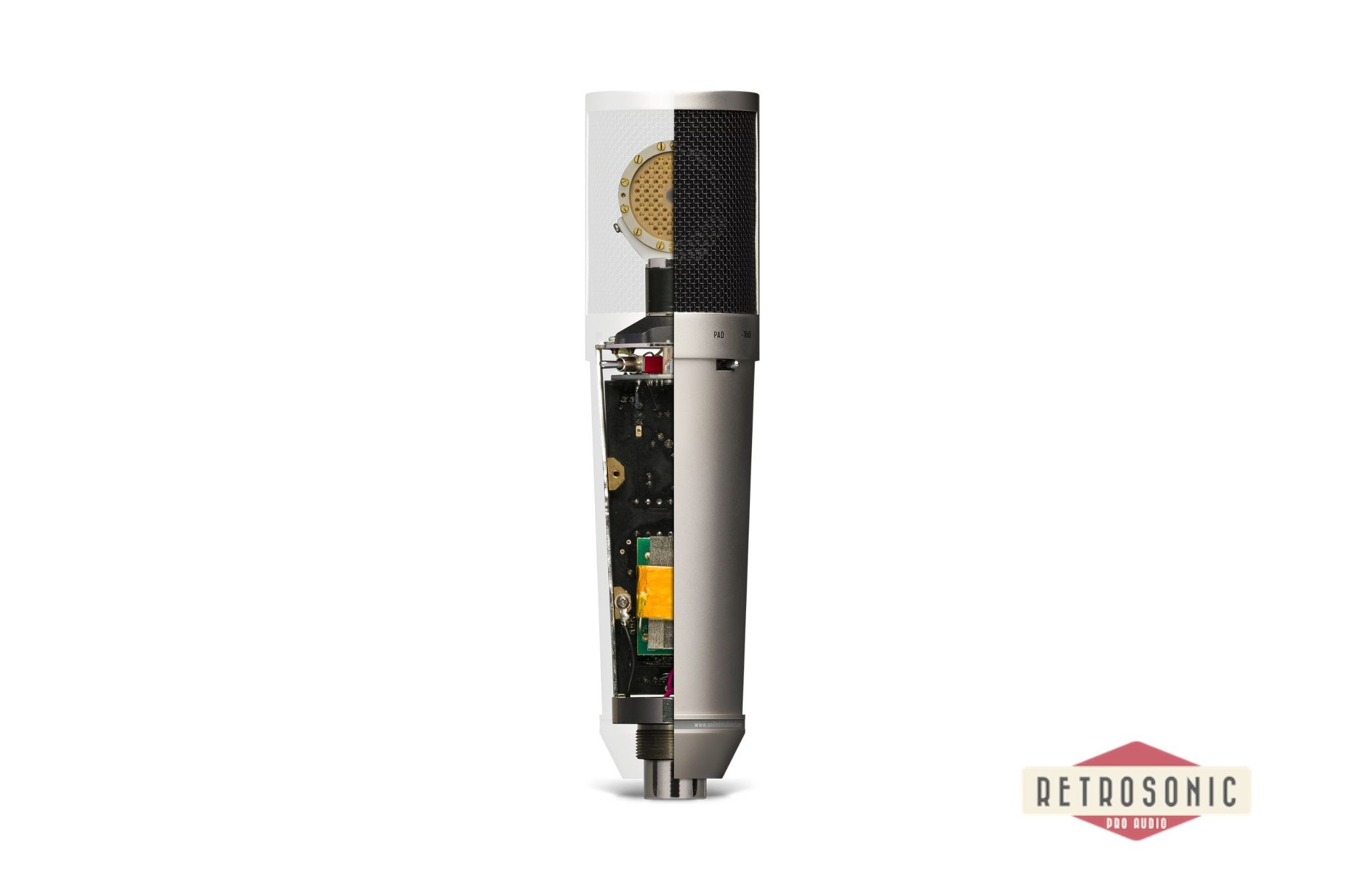

There are no shortcuts here. To make the Vintage87 more accessible, United removed extra features that not every user needs and kept the parts that define the sound. That means a custom large-core, US-made output transformer, a custom dual-diaphragm dual-backplate K87-style capsule with 24k gold-sputtered diaphragms, and a carefully selected signal path built with premium capacitors, resistors, and hand-selected transistors.

The result is a microphone with a polished top end, solid midrange detail, and the kind of balanced, familiar tone that works on vocals, speech, acoustic instruments, and many other studio sources. It delivers the essence of a much more expensive classic, but in a package that is easier to reach for every day.

Key features
• Vintage-style large diaphragm condenser sound
• Fixed true cardioid pattern
• Custom 34 mm dual-backplate K87-style capsule
• 24k gold-sputtered dual diaphragms
• Custom-wound large-core output transformer made in the USA
• FET amplifier design
• Premium internal components throughout
• 80 Hz high-pass filter
• -10 dB pad
• Solid milled brass body with nickel finish
• Shockmount and vintage-style pouch included

Specifications

Type
Condenser microphone

Capsule
UT Series, 34 mm brass, insulated dual-backplate K87

Diaphragm
Dual-diaphragm, 6 micron, 24k gold-sputtered Mylar

Capsule sensitivity
-34 dB @ 60V

Frequency response
20 Hz to 20 kHz

Polar pattern
Cardioid

Max SPL
117 dB
127 dB with pad
<0.5% THD

Output impedance
27 Ω

Output connector
24k gold-plated XLR, pin 2 hot, pin 1 ground

Amplifier type
Field Effect Transistor

Self-noise
<10 dB

Output stage
Custom-wound UT Series transformer, made in USA

High-pass filter
80 Hz

Pad
-10 dB

Body
Nickel electroplated solid milled brass

Mount
Suspension shockmount included

Power
48V phantom power via XLR

Included accessories
Vintage-style pouch, shockmount

Dimensions
Height: 220 mm / 8.6”
Diameter: 55 mm / 2.2”

Shockmount depth
118 mm / 4.64” to 178 mm / 7”
